LN55-QDP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312- )TW

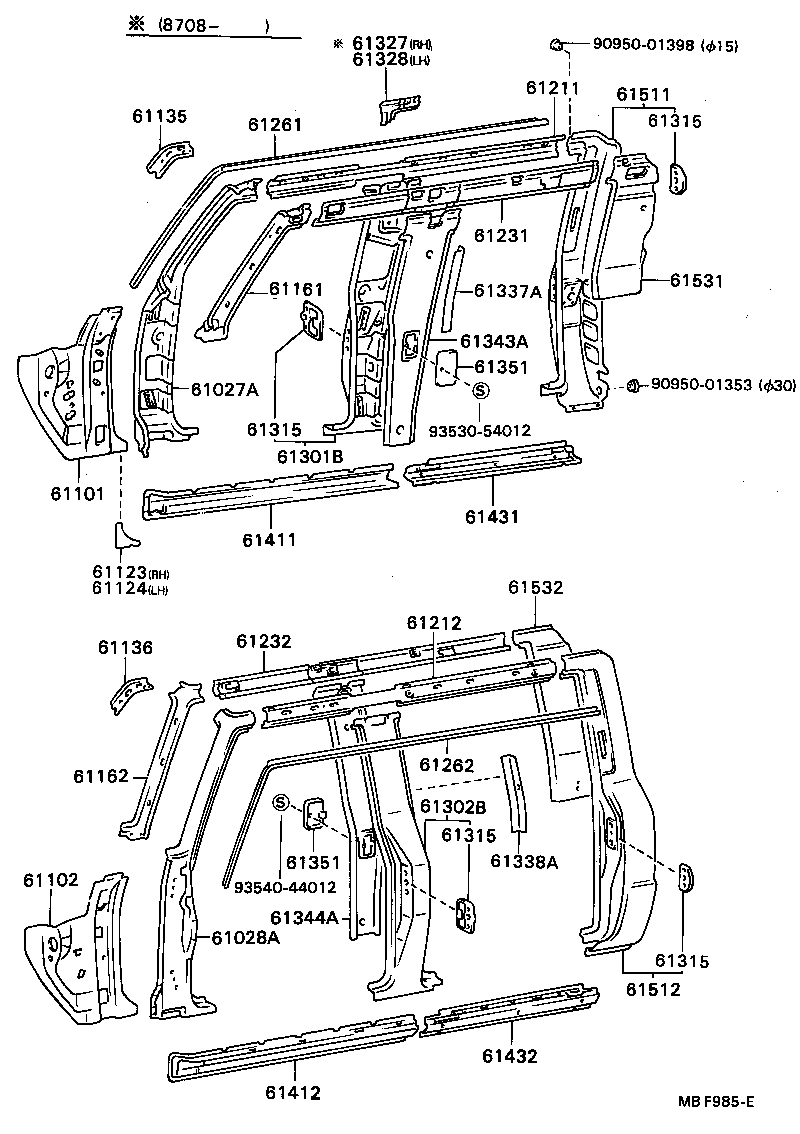

Click highlighted areas on diagram

diagram 61027A 61028A 61101 61102 61123 61124 61135 61136 61161 61162 61211 61212 61231 61232 61261 61262 61301B 61302B 61315 61315 61315 61315 61327 61328 61337A 61338A 61343A 61344A 61351 61351 61411 61412 61431 61432 61511 61512 61531 61532 9095001353 9095001398 9353054012 9354044012
Part # Description Qty Price
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-89127

LN5#,6#,YN5#,6#

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-89124

LN5#,6#,YN5#,6#

 1
61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61135-89106

LN5#,6#,YN5#,6#

 1
61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61136-89106

LN5#,6#,YN5#,6#

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-89107

LN5#,6#,YN5#,6#

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-89107

LN5#,6#,YN5#,6#

 1
Common parts
90950-01353
90950-01398
93530-54012
93540-44012
