LN55-QDP (1983)
Toyota Hilux
Production
Dec 1983
-
Aug 1985
Engine
L
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8312- )LN55,56,YN56..TW

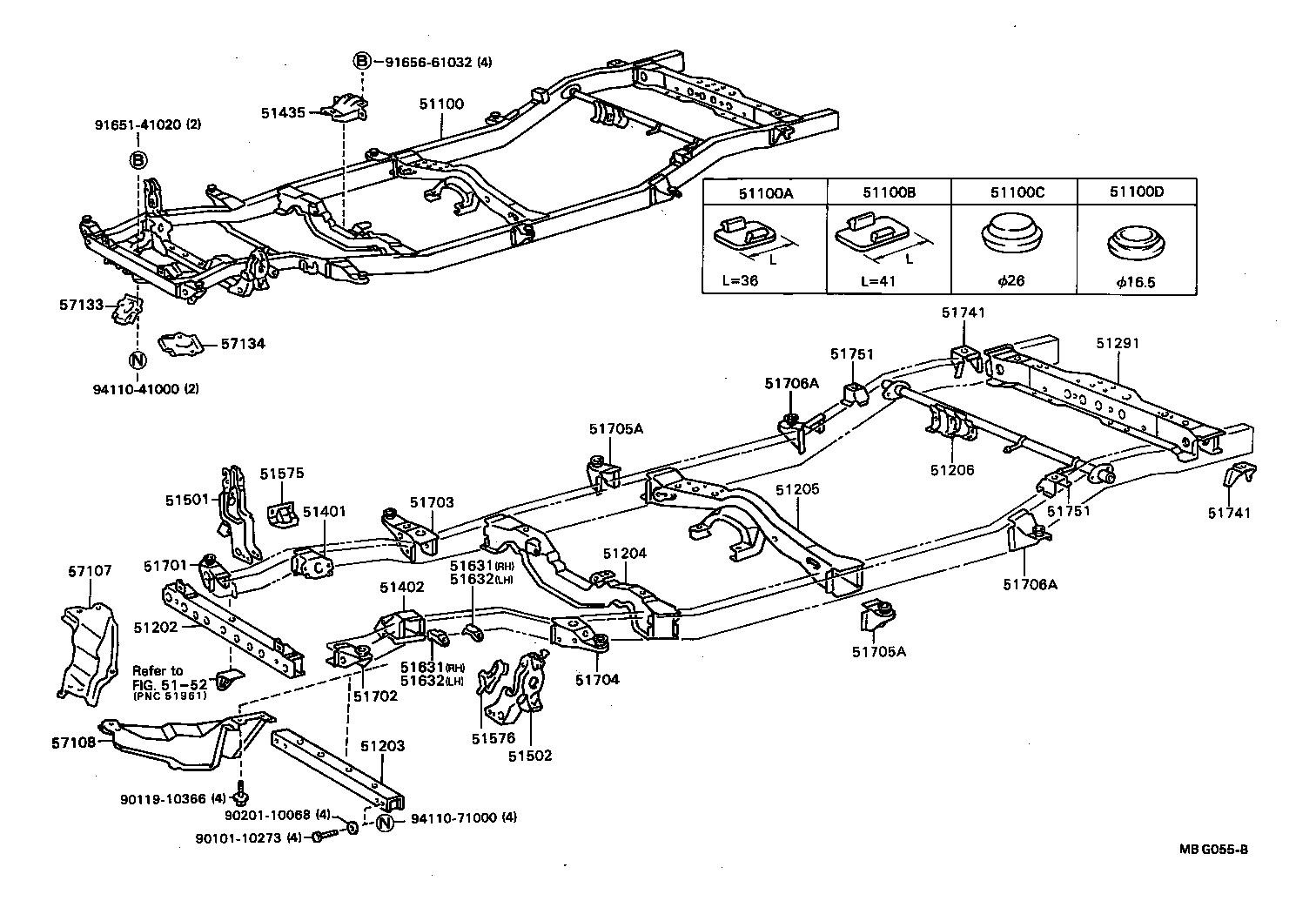

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100 - FRAME ASSY | ||||
| 51002-35600 |
LN55..TW |
1 | ||
| 51100A - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01394 |
LN5#,6#,YN5#,6# |
4 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LN5#,6#,YN5#,6# |
2 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01420 |
LN5#,YN5# |
2 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-35100 |
LN5#,YN5#..T1,TW |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-35160 |
LN5#,YN5# |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-35240 |
LN5#,YN5# |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51209-35090 |
LN55,65,YN56..T3,TW |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-35170 |
LN5# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-35170 |
LN5# |
1 | ||
| 51435 - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-35060 |
LN5#,YN5#..5H |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-35020 |
LN5#,YN5# |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-35020 |
LN5#,YN5# |
1 | ||
| 51575 - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 | ||||
| 51573-35010 |
LN5#,YN5# |
2 | ||
| 51576 - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 | ||||
| 51575-35040 |
LN5# |
2 | ||
| 51631 - STOPPER, FRONT SUSPENSION REBOUND, RH | ||||
| 51632-35030 |
LN5#,YN5# FR |
1 | ||
| 51631-35030 |
LN5#,YN5# RR |
1 | ||
| 51631 - STOPPER, FRONT SUSPENSION REBOUND, RH | ||||
| 51632-35030 |
LN5#,YN5# FR |
1 | ||
| 51631-35030 |
LN5#,YN5# RR |
1 | ||
| 51632 - STOPPER, FRONT SUSPENSION REBOUND, LH | ||||
| 51631-35030 |
LN5#,YN5# FR |
1 | ||
| 51632-35030 |
LN5#,YN5# RR |
1 | ||
| 51632 - STOPPER, FRONT SUSPENSION REBOUND, LH | ||||
| 51631-35030 |
LN5#,YN5# FR |
1 | ||
| 51632-35030 |
LN5#,YN5# RR |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-35080 |
LN5#,YN5# |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51702-35070 |
LN5#,YN5# |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-35040 |
LN5#,6#,YN56,6# |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-35060 |
LN5#,6#,YN56,6# |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-35080 |
LN5#,6#,YN5#,6# |
2 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-35080 |
LN5#,6#,YN5#,6# |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51071-35030 |
LN55,YN56..DLX |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51071-35030 |
LN55,YN56..DLX |
2 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51752-35030 |
LN55,56,65,YN56,65..TW LH |
1 | ||
| 51751-35050 |
LN55,56,65,YN56,65..TW RH |
1 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51752-35030 |
LN55,56,65,YN56,65..TW LH |
1 | ||
| 51751-35050 |
LN55,56,65,YN56,65..TW RH |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-35040 |
LN5#,YN5# |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-35040 |
LN5#,YN5# |
1 | ||
| 57133 - PROTECTOR, STRUT BAR BRACKET, RH | ||||
| 57133-35020 |
LN5#,YN5# COLD SPEC |
1 | ||
| 57134 - PROTECTOR, STRUT BAR BRACKET, LH | ||||
| 57134-35010 |
LN5#,YN5# COLD SPEC |
1 | ||
| Common parts | ||||
| 90101-10273 | ||||
| 90119-10366 | ||||
| 90201-10068 | ||||
| 91651-41020 | ||||
| 91656-61032 | ||||
| 94110-41000 | ||||
| 94110-71000 | ||||
| Linked diagrams | ||||
| 5152 | ||||
