LN55-QDP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )5H ; (8410-8508)LPG

Click highlighted areas on diagram

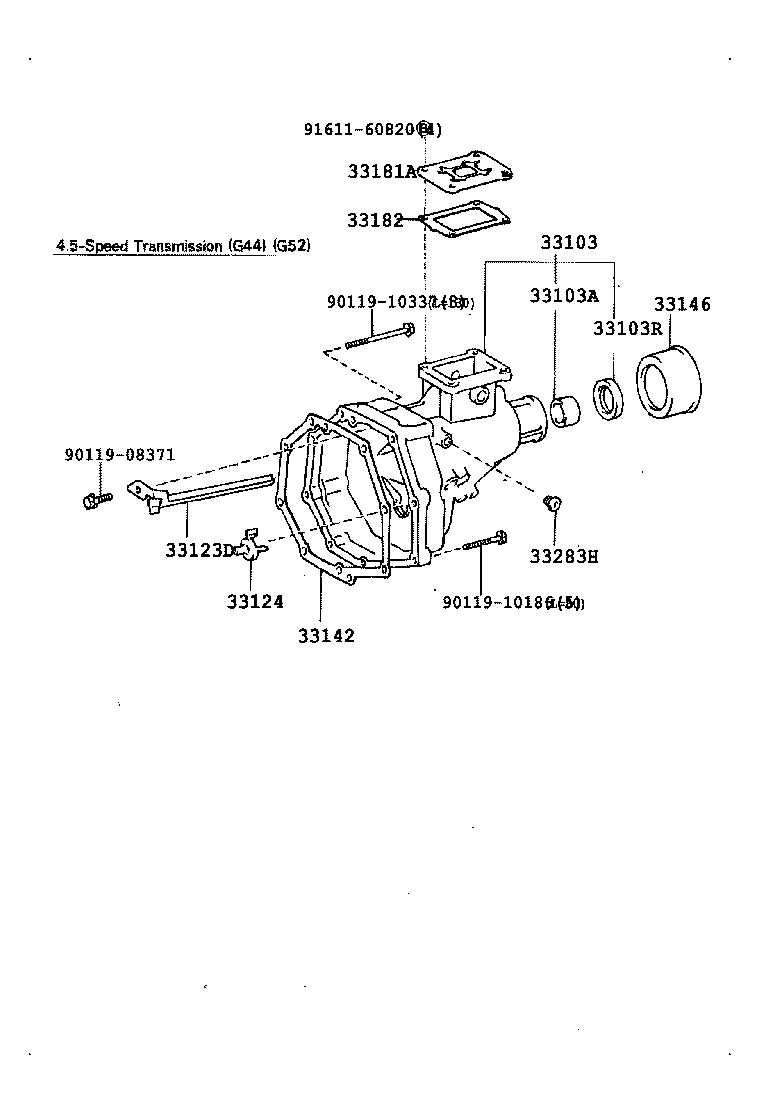

diagram 33103 33103A 33103R 33123D 33124 33142 33146 33181A 33182 33283H 9011908371 9011910186 9011910337 9161160820
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-35100

LN50,55,YN5#..5H

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

LN5#,YN5#..MTM

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38043

LN5#,YN5#..MTM

 1
33123D - RECEIVER, CASE COVER OIL(MTM)
33124-35010

LN5#,YN5#..5H

 1
33124 - PIPE, OIL RECEIVER(MTM)
33124-36010

LN5#,YN5#..5H

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33138-28020

LN5#,YN5#..5H

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

LN5#,YN5#..MTM

 1
33181A - COVER, EXTENSION HOUSING(MTM)
33181-35010

LN5#,YN5#..5H

 1
33182 - GASKET, EXTENSION HOUSING COVER(MTM)
33182-35010

LN5#,YN5#..5H

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-12008

LN5#,YN5#..5H

 1
Common parts
90119-08371
90119-10186
90119-10337
91611-60820
