LN55-QDB (1983)

Toyota Hilux

Production Nov 1983 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )

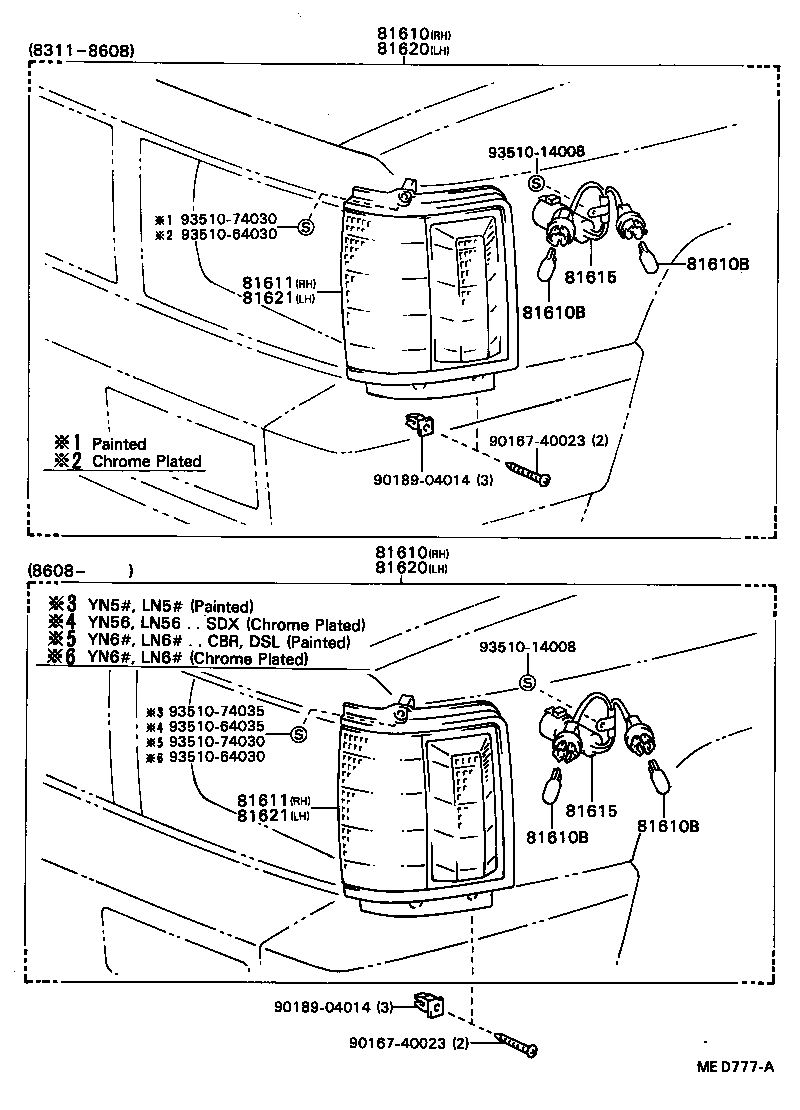

Click highlighted areas on diagram

diagram 81610 81610 81610B 81610B 81610B 81610B 81611 81611 81615 81615 81620 81620 81621 81621 9016740023 9016740023 9018904014 9018904014 9351014008 9351014008 9351064030 9351064030 9351064035 9351074030 9351074030 9351074035
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-39845

LN5#,YN5#

CHROME PLATED

 1
81610-39835

LN5#,YN5#

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-39845

LN5#,YN5#

CHROME PLATED

 1
81610-39835

LN5#,YN5#

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

LN5#,6#,YN5#,6#

12V 5W,12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

LN5#,6#,YN5#,6#

12V 5W,12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

LN5#,6#,YN5#,6#

12V 5W,12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

LN5#,6#,YN5#,6#

12V 5W,12V 5W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-89149

LN5#,YN5#

 1
81611-89150

LN5#,YN5#

CHROME PLATED

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-89149

LN5#,YN5#

 1
81611-89150

LN5#,YN5#

CHROME PLATED

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-89148

LN5#,6#,YN5#,6#

 2
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-89148

LN5#,6#,YN5#,6#

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-39845

LN5#,YN5#

CHROME PLATED

 1
81620-39835

LN5#,YN5#

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-39845

LN5#,YN5#

CHROME PLATED

 1
81620-39835

LN5#,YN5#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-89150

LN5#,YN5#

CHROME PLATED

 1
81621-89149

LN5#,YN5#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-89150

LN5#,YN5#

CHROME PLATED

 1
81621-89149

LN5#,YN5#

 1
Common parts
90167-40023
90189-04014
93510-14008
93510-64030
93510-64035
93510-74030
93510-74035
