LN55-QDB (1983)

Toyota Hilux

Production Nov 1983 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )LN5#,YN5#

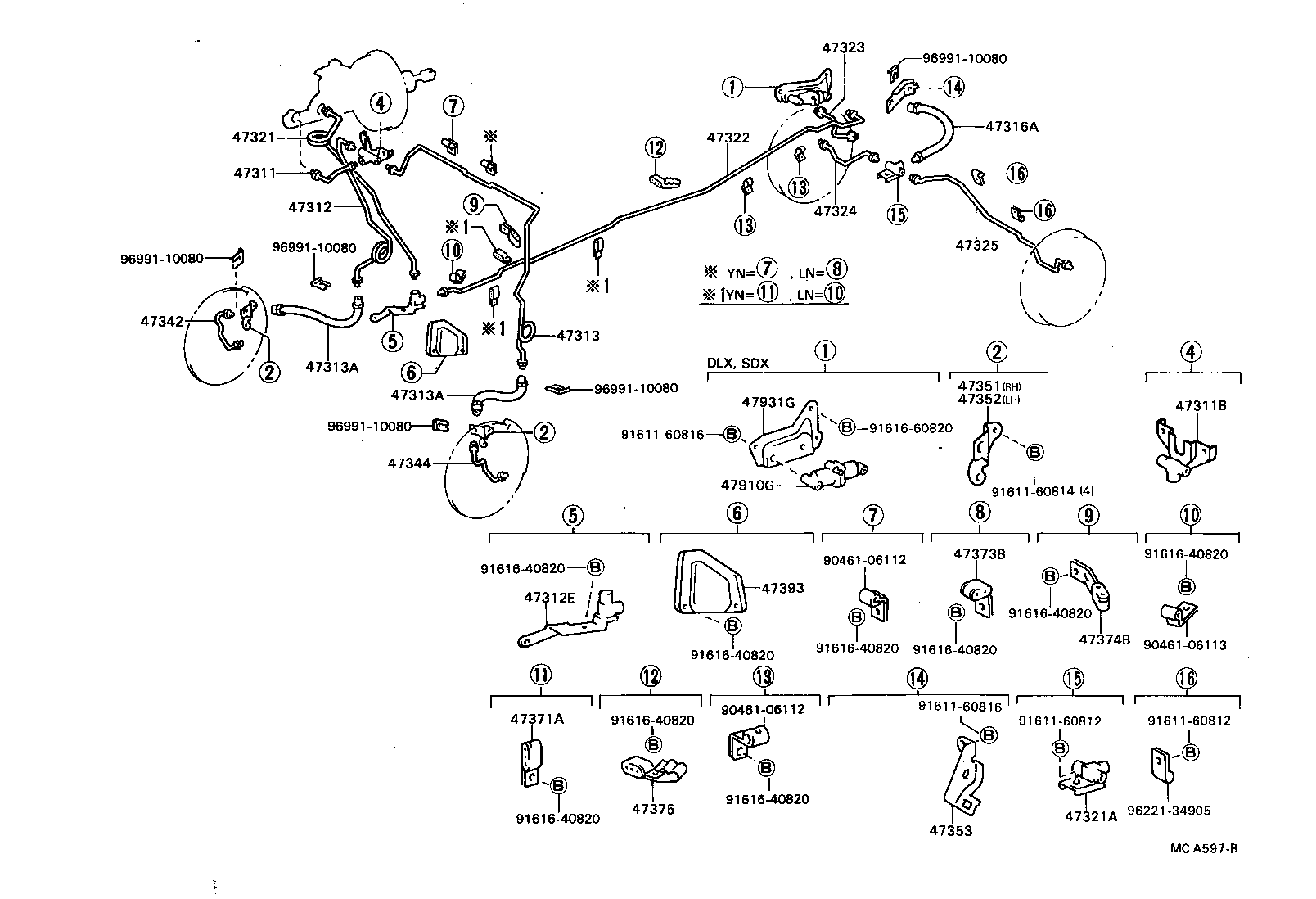

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47316A 47321 47321A 47322 47323 47324 47325 47342 47344 47351 47352 47353 47371A 47373B 47374B 47375 47393 47910G 47931G 9046106112 9046106112 9046106113 9161160812 9161160812 9161160814 9161160816 9161160816 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161660820 9622134905 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35330

LN5#,YN56

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

LN5#,6#,YN5#,6#..CBR,DSL

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35400

LN5#,YN5#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10108

LN5#,60,65,YN5#,60,65..CBR,DSL

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35280

LN5#,YN5#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02446

LN5#,YN5#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02446

LN5#,YN5#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34205

LN5#,YN5#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35210

LN5#,60,65,YN5#,60,65..CBR,DSL

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10152

LN5#,YN5#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35230

LN55,56,YN56..SJL,T1,T3

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35080

LN5#,YN5#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35060

LN5#,YN5#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35070

LN5#,YN5#

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35090

LN5#,YN5#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35090

LN5#,YN5#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35140

LN5#,YN5#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35120

LN5#,YN5#

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35140

LN5#,YN5#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-35010

LN5#,6#

DASH PANEL SIDE

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-35010

LN5#,6#,YN5#,6#

DASH PANEL SIDE

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47375-35050

LN5#..T1,T3

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35050

LN5#

 1
47910G - VALVE ASSY, DECELERATION SENSING PROPORTIONING
47910-35050

LN5#,YN5#

 1
47931G - BRACKET, DECELERATION SENSING VALVE
47931-35060

LN5#,YN5#

 1
Common parts
90461-06112
90461-06113
91611-60812
91611-60814
91611-60816
91616-40820
91616-60820
96221-34905
96991-10080
