LN55-QD (1984)

Toyota Hilux

Production Nov 1984 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311-8608)

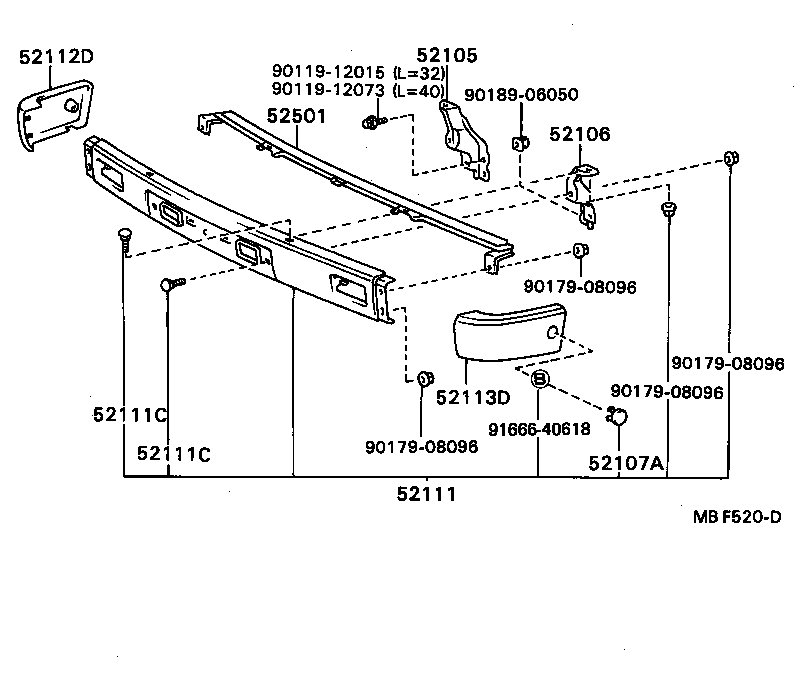

Click highlighted areas on diagram

diagram 52105 52106 52107A 52111 52111C 52111C 52112D 52113D 52501 9011912015 9011912073 9017908096 9017908096 9017908096 9017908096 9018906050 9166640618
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-89106

LN5#,65,YN56,65

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-89106

LN5#,65,YN56,65

 1
52107A - COVER, FRONT BUMPER ARM HOLE
52127-89101

LN5#,6#,YN5#,6#

 2
52111 - BUMPER ASSY, FRONT
52111-39495

LN5#,YN5#..DLX

 1
52111-39515

LN5#,YN5#

CHROME PLATED

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08038

LN5#,YN5#..DLX

 4
90112-08035

LN5#,6#,YN5#,6#

CHROME PLATED

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08038

LN5#,YN5#..DLX

 4
90112-08035

LN5#,6#,YN5#,6#

CHROME PLATED

 4
52112D - EXTENSION, FRONT BUMPER, RH
52102-89104

LN5#,YN5#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-89104

LN5#,YN5#

 1
Common parts
90119-12015
90119-12073
90179-08096
90189-06050
91666-40618
