LN46-MDY (1981)

Toyota Hilux

Production Oct 1981 - Oct 1983
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8110- )

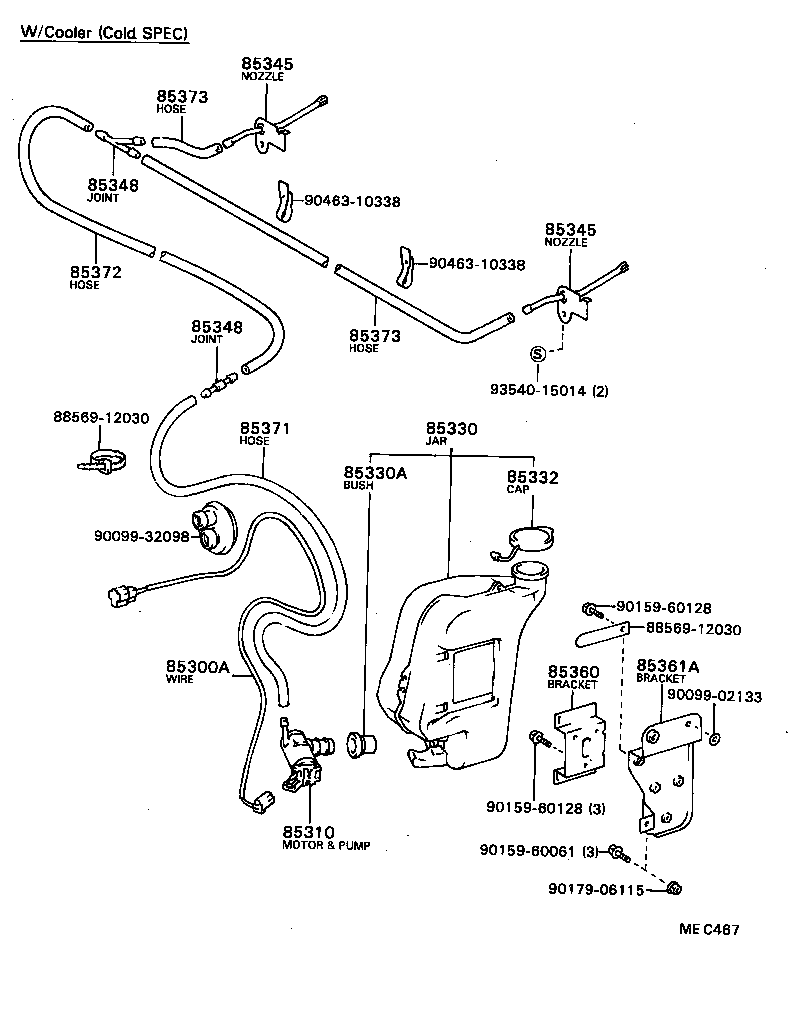

Click highlighted areas on diagram

diagram 85300A 85310 85330 85330A 85332 85345 85345 85348 85348 85360 85361A 85371 85372 85373 85373 8856912030 8856912030 9009902133 9009932098 9015960061 9015960128 9015960128 9017906115 9046310338 9046310338 9354015014
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20100

LN3#,4#,RN3#,4#

12V

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-89104

LN3#,4#,RN3#,4#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

LN3#,4#,RN3#,4#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-30050

LN3#,4#,RN3#,4#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-89104

LN3#,4#,RN3#,4#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-89104

LN3#,4#,RN3#,4#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

LN3#,4#,RN3#,4#

3-WAY

 1
85355-87201

LN3#,4#,RN3#,4#

2-WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

LN3#,4#,RN3#,4#

3-WAY

 1
85355-87201

LN3#,4#,RN3#,4#

2-WAY

 2
85360 - BRACKET ASSY, WINDSHIELD WASHER
53752-89101

LN3#,4#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
74465-89102

LN36,46

COLD SPEC

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

LN3#,4#,RN3#,4#

長さ=450

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

LN3#,4#,RN3#,4#

*H,L=700,12V

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LN3#,4#,RN3#,4#

*H,L=100

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LN3#,4#,RN3#,4#

*H,L=100

 1
Common parts
88569-12030
90099-02133
90099-32098
90159-60061
90159-60128
90179-06115
90463-10338
93540-15014
