LN46-MDY (1981)

Toyota Hilux

Production Oct 1981 - Oct 1983
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

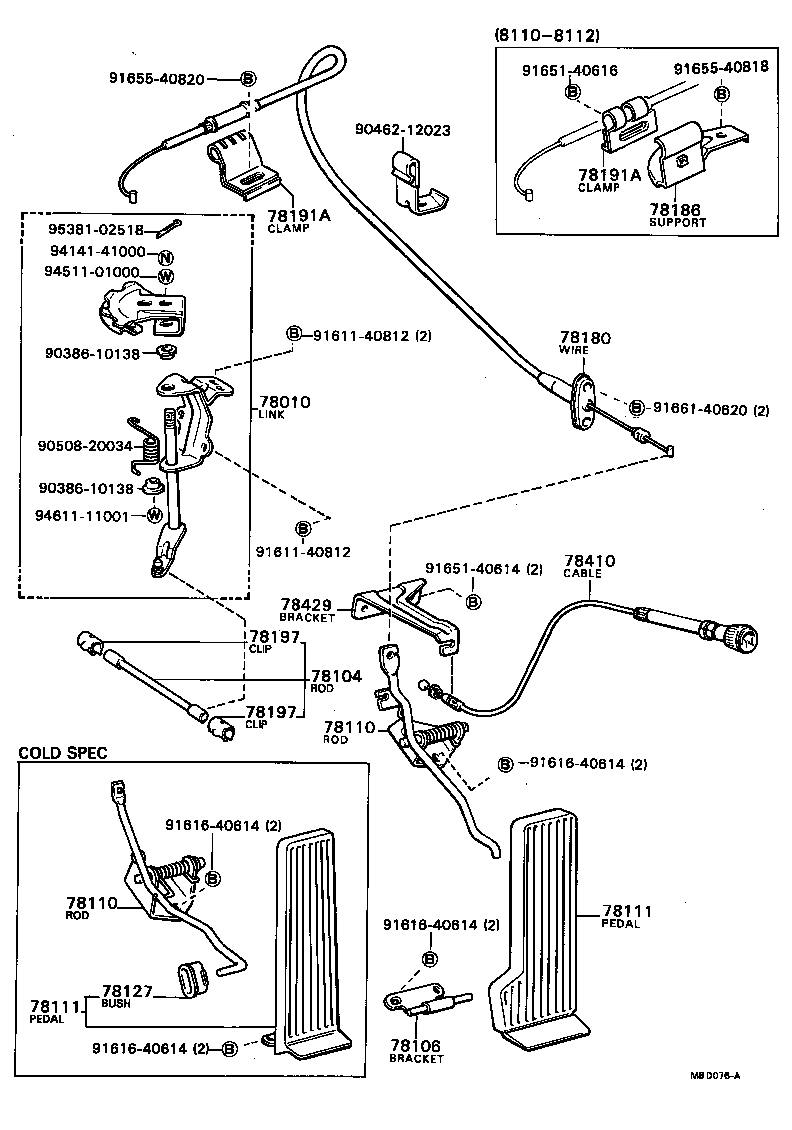

(8110-8310)LN36,46

Click highlighted areas on diagram

diagram 78010 78104 78106 78110 78110 78111 78111 78127 78180 78186 78191A 78191A 78197 78197 78410 78429 9038610138 9038610138 9046212023 9050820034 9161140812 9161140812 9161640614 9161640614 9161640614 9161640614 9165140614 9165140616 9165540818 9165540820 9166140620 9414141000 9451101000 9461111001 9538102518
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78100-95110

LN36,46

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-89104

RN30,33,35,4#

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78011-89101

LN30,40,41,RN30,33,35,4#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89104

RN30,33,35,4#

COLD SPEC

 1
78120-89101

RN30,33,35,4#

 1
78120-95128

LN36,46

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89104

RN30,33,35,4#

COLD SPEC

 1
78120-89101

RN30,33,35,4#

 1
78120-95128

LN36,46

 1
78111 - PEDAL, ACCELERATOR
78111-89102

LN3#,4#,RN3#,4#

 1
78010-89103

LN30,40,RN30,33,35,4#

COLD SPEC

 1
78010-95113

LN36,46,RN39

COLD SPEC

 1
78111 - PEDAL, ACCELERATOR
78111-89102

LN3#,4#,RN3#,4#

 1
78010-89103

LN30,40,RN30,33,35,4#

COLD SPEC

 1
78010-95113

LN36,46,RN39

COLD SPEC

 1
78127 - BUSH, ACCELERATOR PEDAL, NO.2
78127-20010

LN3#,4#,RN3#,4#

COLD SPEC

 1
78180 - WIRE ASSY, ACCELERATOR
78180-95120

LN36,46

 1
78180-95118

LN36,46

 1
78180-89117

RN30,33,35,4#

 1
78180-89120

RN30,33,35,4#

COLD SPEC

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
90461-10287

LN36,46

 1
90461-08148

RN30,33,35,4#

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
90461-10287

LN36,46

 1
90461-08148

RN30,33,35,4#

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-95113

LN36,46

 1
78429 - BRACKET, THROTTLE ROD
78484-95113

LN36,46

 1
Common parts
90386-10138
90462-12023
90508-20034
91611-40812
91616-40614
91651-40614
91651-40616
91655-40818
91655-40820
91661-40620
94141-41000
94511-01000
94611-11001
95381-02518

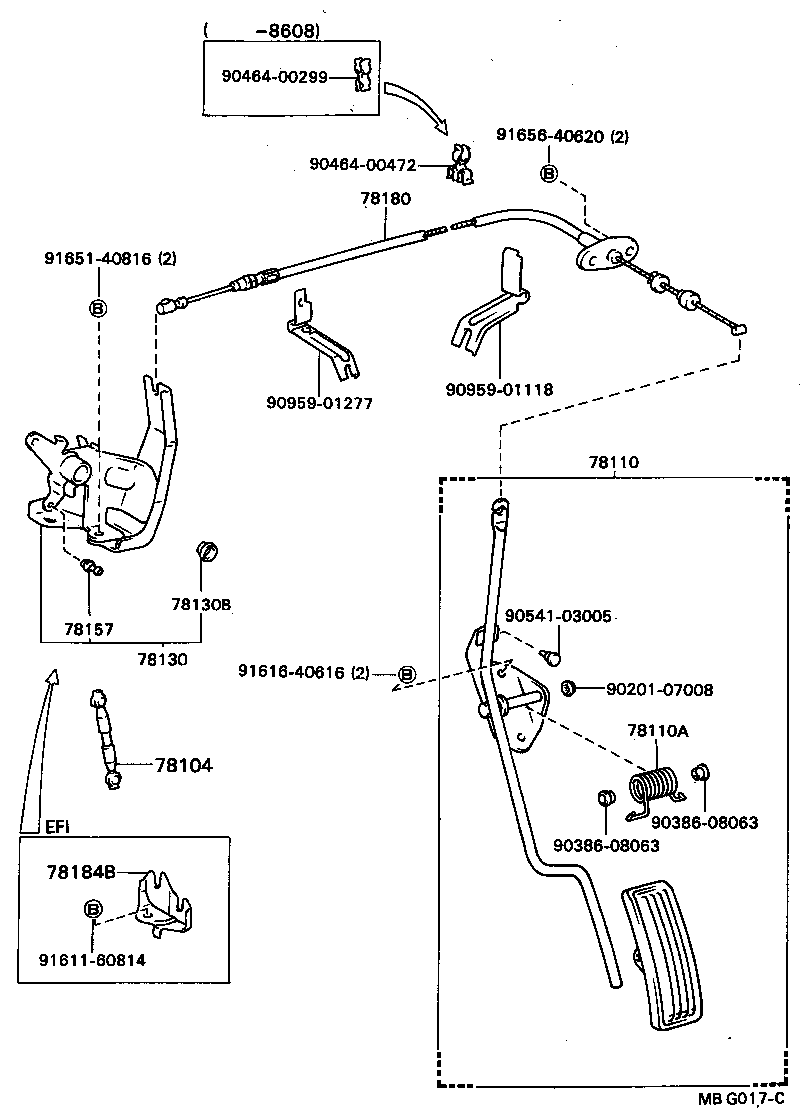

(8311-8408)YN56 ; (8408- )YN5#,6#

Click highlighted areas on diagram

diagram 78104 78110 78110A 78130 78130B 78157 78180 78184B 9020107008 9038608063 9038608063 9046400299 9046400472 9054103005 9095901118 9095901277 9161160814 9161640616 9165140816 9165640620
Part # Description Qty Price
Common parts
90201-07008
90386-08063
90464-00299
90464-00472
90541-03005
90959-01118
90959-01277
91611-60814
91616-40616
91651-40816
91656-40620
