LN46-MDY (1981)

Toyota Hilux

Production Oct 1981 - Oct 1983
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

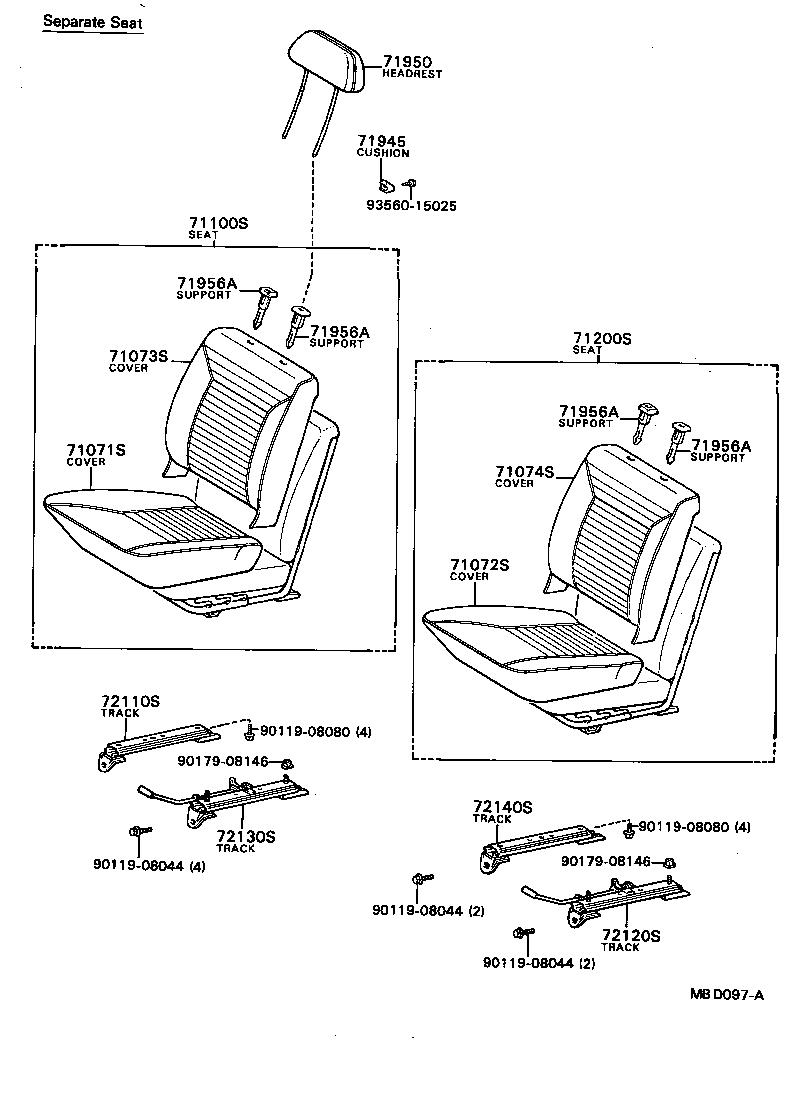

ILLUST NO. 1 OF 2(8110-8310)LN36,46,RN39

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71100S 71200S 71945 71950 71956A 71956A 71956A 71956A 72110S 72120S 72130S 72140S 9011908044 9011908044 9011908044 9011908080 9011908080 9017908146 9017908146 9356015025
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9514603

LN36,46,RN39

SR PACKAGE,SSV,GRAY,GRAY,TRIM2#

 1
71071-9514605

LN36,46,RN39

SR PACKAGE,SSV,BEIGE,BEIGE,TRIM4#

 1
71071-9514603

LN36,46,RN39..T1

SR PACKAGE,SSV,GRAY,GRAY,TRIM2#

 1
71071-9514605

LN36,46,RN39..T1

SR PACKAGE,SSV,BEIGE,BEIGE,TRIM4#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-9514603

LN36,46,RN39

SR PACKAGE,SSV,GRAY,GRAY,TRIM2#

 1
71071-9514605

LN36,46,RN39..T1

SR PACKAGE,SSV,BEIGE,BEIGE,TRIM4#

 1
71071-9514605

LN36,46,RN39

SR PACKAGE,SSV,BEIGE,BEIGE,TRIM4#

 1
71071-9514603

LN36,46,RN39..T1

SR PACKAGE,SSV,GRAY,GRAY,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9514905

LN36,46,RN39..T1

SR PACKAGE,SSV,BEIGE,BEIGE,TRIM4#

 1
71073-9516303

LN36,46,RN39..T1

SR PACKAGE,SSV,GRAY,GRAY,TRIM2#

 1
71073-9514903

LN36,46,RN39..T1

SR PACKAGE,SSV,GRAY,GRAY,TRIM2#

 1
71073-9516305

LN36,46,RN39..T1

SR PACKAGE,SSV,BEIGE,BEIGE,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-9516305

LN36,46,RN39..T1

SR PACKAGE,SSV,BEIGE,BEIGE,TRIM4#

 1
71073-9514905

LN36,46,RN39..T1

SR PACKAGE,SSV,BEIGE,BEIGE,TRIM4#

 1
71073-9514903

LN36,46,RN39..T1

SR PACKAGE,SSV,GRAY,GRAY,TRIM2#

 1
71073-9516303

LN36,46,RN39..T1

SR PACKAGE,SSV,GRAY,GRAY,TRIM2#

 1
71100S - SEAT ASSY, FRONT RH
71090-9511405

LN36,46,RN39..T1

SR PACKAGE,SSV,BEIGE,BEIGE,TRIM4#

 1
71090-9511403

LN36,46,RN39..T1

SR PACKAGE,SSV,GRAY,GRAY,TRIM2#

 1
71200S - SEAT ASSY, FRONT LH
71090-9511405

LN36,46,RN39..T1

SR PACKAGE,SSV,BEIGE,BEIGE,TRIM4#

 1
71090-9511403

LN36,46,RN39..T1

SR PACKAGE,SSV,GRAY,GRAY,TRIM2#

 1
71945 - BUMPER, SEAT BACK
71739-89103

LN30,40,RN3#,4#..DLX,STD

 2
71739-89105

LN36,46,RN39..T1

SR PACKAGE,SEPARATE SEAT

 2
71950 - HEADREST ASSY, FRONT SEAT
71910-8911001

LN36,46,RN39

BLACK,BLACK,TRIM2#

 2
71910-8911006

LN36,46,RN39

BROWN,BROWN,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71931-1001005

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4#

 2
71930-1006005

LN36,46,RN39

ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM2#

 2
71931-1001001

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2#

 2
71930-1006001

LN36,46,RN39

ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2#

 2
71930-1006016

LN36,46,RN39

ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4#

 2
71931-1001016

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,DARK BROWN,SABLE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71931-1001005

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4#

 2
71930-1006005

LN36,46,RN39

ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM2#

 2
71931-1001001

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2#

 2
71930-1006001

LN36,46,RN39

ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2#

 2
71930-1006016

LN36,46,RN39

ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4#

 2
71931-1001016

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,DARK BROWN,SABLE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71931-1001005

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4#

 2
71930-1006005

LN36,46,RN39

ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM2#

 2
71931-1001001

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2#

 2
71930-1006001

LN36,46,RN39

ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2#

 2
71930-1006016

LN36,46,RN39

ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4#

 2
71931-1001016

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,DARK BROWN,SABLE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71931-1001005

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4#

 2
71930-1006005

LN36,46,RN39

ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM2#

 2
71931-1001001

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2#

 2
71930-1006001

LN36,46,RN39

ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2#

 2
71930-1006016

LN36,46,RN39

ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4#

 2
71931-1001016

LN36,46,RN39

ﾛｯｸ無,W/O LOCK,DARK BROWN,SABLE,TRIM4#

 2
Common parts
90119-08044
90119-08080
90179-08146
93560-15025
