LN46-MDY (1981)

Toyota Hilux

Production Oct 1981 - Oct 1983
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

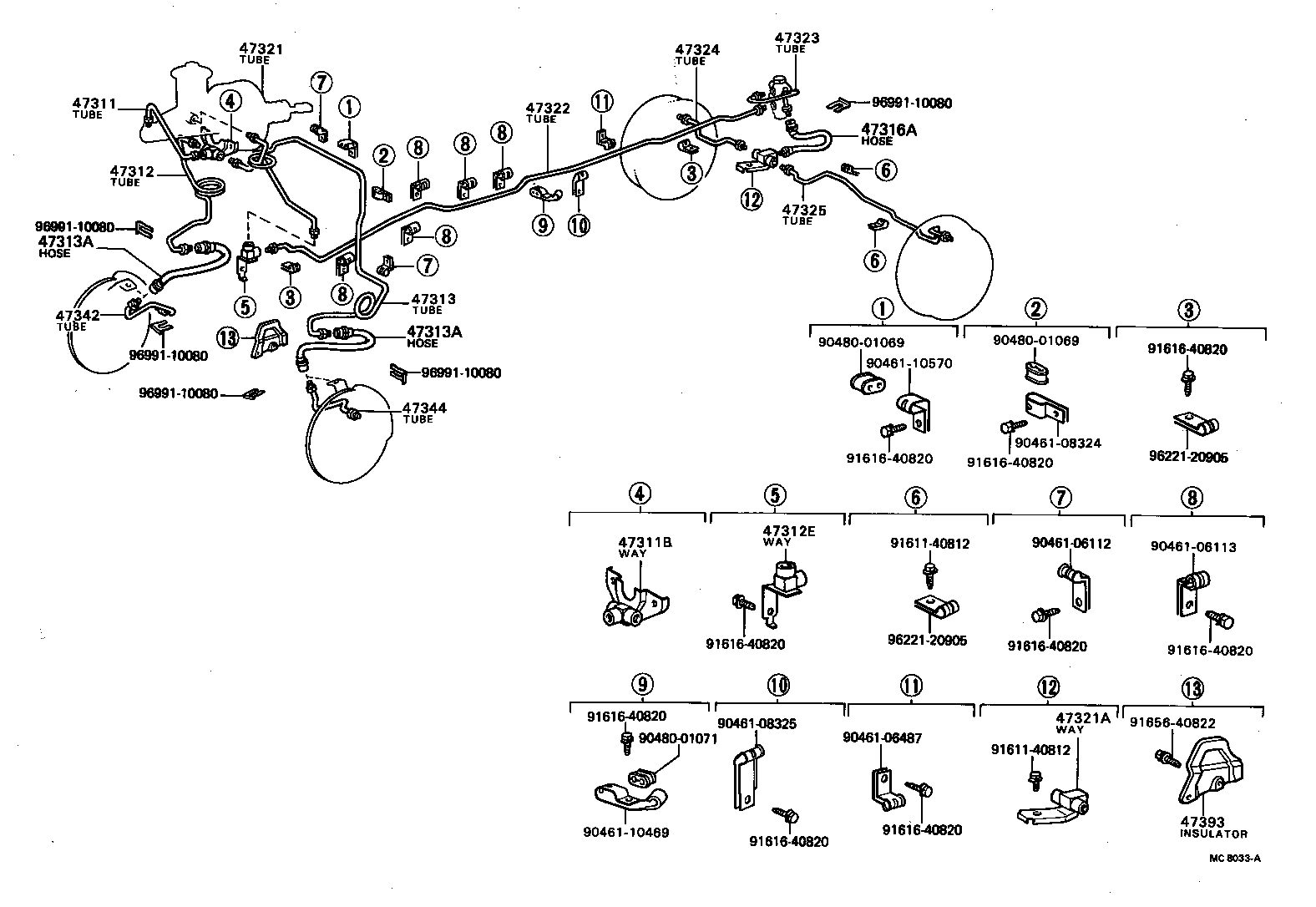

ILLUST NO. 1 OF 2(8110-8310)LN36,46

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47316A 47321 47321A 47322 47323 47324 47325 47342 47344 47393 9046106112 9046106113 9046106487 9046108324 9046108325 9046110469 9046110570 9048001069 9048001069 9048001071 9161140812 9161140812 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9165640822 9622120905 9622120905 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35340

LN36,46

 1
47311-35250

RN30,33,35,4#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10058

LN30,40,41,RN3#,4#

 1
90413-10111

LN36,46

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35340

LN36,46

 1
47312-35141

RN30,33,35,4#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10049

LN3#,4#,RN3#,4#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35121

LN30,40,41,RN30,33,35,4#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02382

LN30,40,41,RN30,33,35,4#..DLX,SDX

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02382

LN30,40,41,RN30,33,35,4#..DLX,SDX

 2
47321 - TUBE, REAR BRAKE, NO.1
47321-35030

RN30,33,35,4#

 1
47321-35160

LN36,46

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10054

LN30,40,41,RN30,33,35,4#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35150

LN46..T1

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35010

LN30,40,41,RN30,33,35,4#..DLX,SDX

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35010

LN30,40,RN30,33,35,4#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35020

LN30,40,RN30,33,35,4#

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35040

LN36,46

 1
Common parts
90461-06112
90461-06113
90461-06487
90461-08324
90461-08325
90461-10469
90461-10570
90480-01069
90480-01071
91611-40812
91616-40820
91656-40822
96221-20905
96991-10080
