LN46-MDY (1981)

Toyota Hilux

Production Oct 1981 - Oct 1983
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8110-8304)L..LN36,46

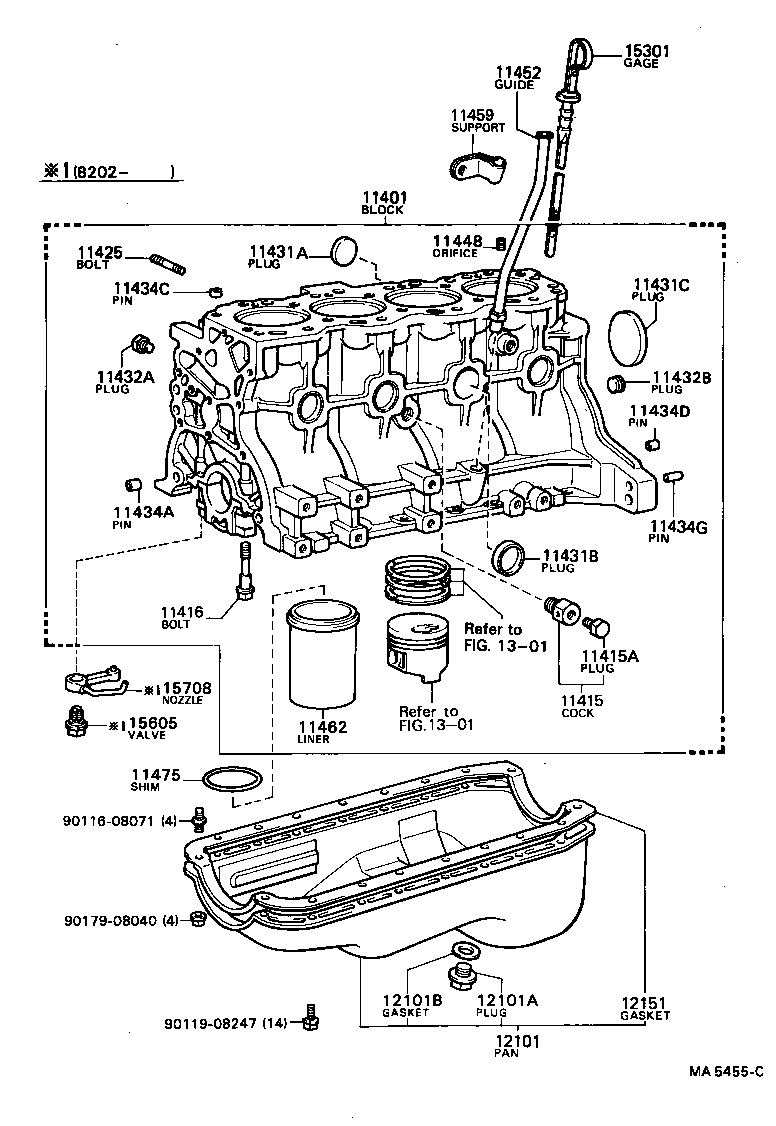

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432B 11434A 11434C 11434D 11434G 11448 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1301 15301 15605 15708 9011608071 9011908247 9017908040
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59185

L..LN3#,4#

 1
11401-59107

L..LN3#,4#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

L..LN3#,4#

 1
12101 - PAN SUB-ASSY, OIL
12101-59165

L..LN36,46

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

L,2L..LN3#,4#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

L..LN3#,4#

 1
Common parts
90116-08071
90119-08247
90179-08040
Linked diagrams
1301

(8304-8310)L..LN36,46

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432B 11434A 11434C 11434D 11434G 11448 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1301 1301 15301 15605 15708 9011608071 9011908247 9017908040
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59185

L..LN3#,4#

 1
11401-59107

L..LN3#,4#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

L..LN3#,4#

 1
12101 - PAN SUB-ASSY, OIL
12101-59165

L..LN36,46

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

L,2L..LN3#,4#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

L..LN3#,4#

 1
Common parts
90116-08071
90119-08247
90179-08040
Linked diagrams
1301
