LN40-QFY (1979)

Toyota Hilux

Production Dec 1979 - Oct 1983
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7912- )L,2L

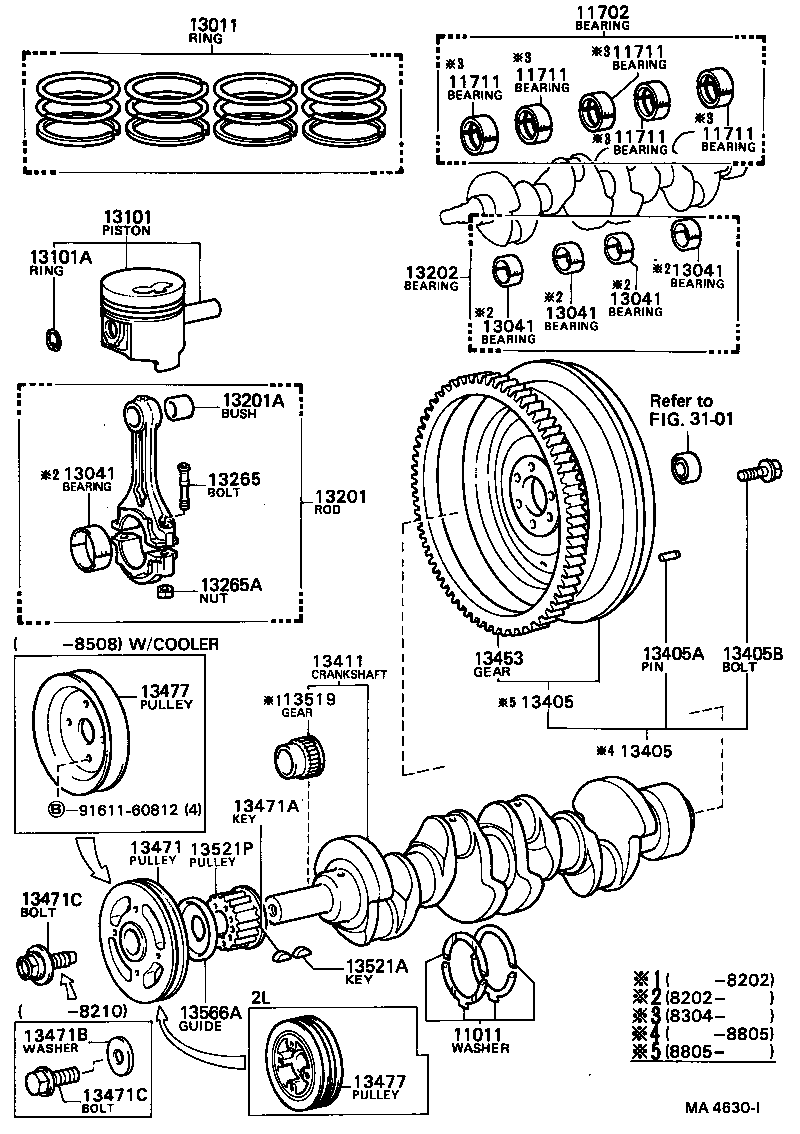

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405 13405A 13405B 13411 13453 13471 13471A 13471B 13471C 13471C 13477 13477 13519 13521A 13521P 13566A 3101 9161160812
Part # Description Qty Price
11702 - BEARING SET, CRANKSHAFT
11705-54010

L..LN3#,4#

U/S 0.50

 1
11702-54010

L..LN3#,4#

STD

 1
11703-54010

L..LN3#,4#

U/S 0.05

 1
11704-54010

L..LN3#,4#

U/S 0.25

 1
13011 - RING SET, PISTON
13013-54040

L..LN3#,4#

O/S 0.50

 1
13011-54020

L..LN30,40

STD

 1
13011-54040

L..LN3#,4#

STD

 1
13013-54020

L..LN30,40

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-5401203

L..LN3#,4#

MARK"3",MARK 3

 4
13041-5401201

L..LN3#,4#

MARK"1",MARK 1

 4
13041-5401202

L..LN3#,4#

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-5401203

L..LN3#,4#

MARK"3",MARK 3

 4
13041-5401201

L..LN3#,4#

MARK"1",MARK 1

 4
13041-5401202

L..LN3#,4#

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-5401203

L..LN3#,4#

MARK"3",MARK 3

 4
13041-5401201

L..LN3#,4#

MARK"1",MARK 1

 4
13041-5401202

L..LN3#,4#

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-5401203

L..LN3#,4#

MARK"3",MARK 3

 4
13041-5401201

L..LN3#,4#

MARK"1",MARK 1

 4
13041-5401202

L..LN3#,4#

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-5401203

L..LN3#,4#

MARK"3",MARK 3

 4
13041-5401201

L..LN3#,4#

MARK"1",MARK 1

 4
13041-5401202

L..LN3#,4#

MARK"2",MARK 2

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-54010

L..LN30,40

STD

 4
13103-54020

L..LN30,40

O/S 0.50

 4
13101-54020

L..LN30,40

STD

 4
13101-54021

L..LN3#,4#

STD

 4
13103-54010

L..LN30,40

O/S 0.50

 4
13103-54021

L..LN3#,4#

O/S 0.50

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-59015

L..LN3#,4#

 4
13201-54010

L..LN3#,4#

 4
13202 - BEARING SET, CONNECTING ROD
13202-54011

L..LN3#,4#

STD

 1
13204-54011

L..LN3#,4#

U/S 0.25

 1
13203-54010

L..LN30,40

U/S 0.05

 1
13203-54011

L..LN3#,4#

U/S 0.05

 1
13202-54010

L..LN30,40

STD

 1
13205-54011

L..LN3#,4#

U/S 0.50

 1
13205-54010

L..LN30,40

U/S 0.50

 1
13205-54012

L..LN3#,4#

U/S 0.50

 1
13204-54012

L..LN3#,4#

U/S 0.25

 1
13204-54010

L..LN30,40

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-59025

L..LN3#,4#

 8
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

L,2L..LN3#,4#

長さ=23,外径=8,L=23,OD=8

 3
13411 - CRANKSHAFT
13401-54012

L..LN3#,4#

 1
13401-54010

L..LN30,40

 1
13401-54011

L..LN3#,4#

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90201-14007

L..LN3#,4#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
91511-61435

L..LN3#,4#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
91511-61435

L..LN3#,4#

 1
13519 - GEAR, OIL PUMP DRIVE
13519-54011

L..LN3#,4#

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-54010

L..LN3#,4#

N=21

 1
Common parts
91611-60812
Linked diagrams
3101
