LN40-QDSY3 (1979)

Toyota Hilux

Production Dec 1979 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7912- )LN30,4#

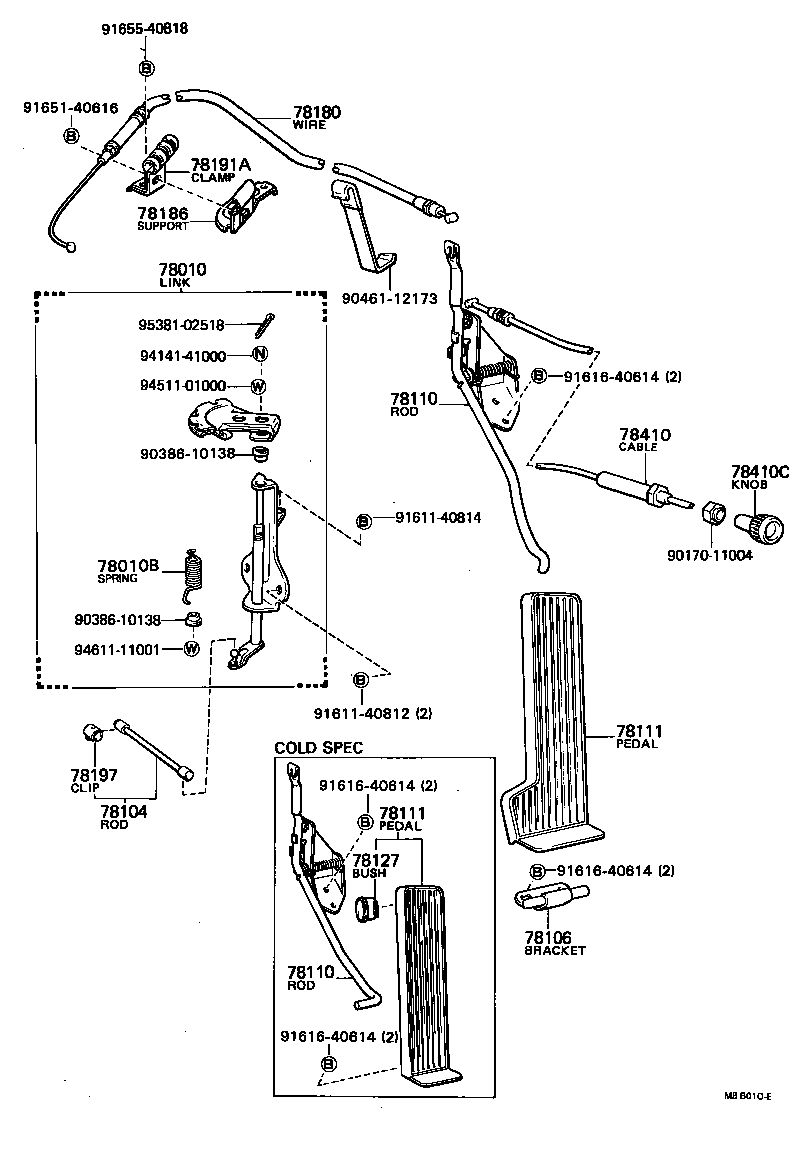

Click highlighted areas on diagram

diagram 78010 78010B 78104 78106 78110 78110 78111 78111 78127 78180 78186 78191A 78197 78410 78410C 9017011004 9038610138 9038610138 9046112173 9161140812 9161140814 9161640614 9161640614 9161640614 9161640614 9165140616 9165540818 9414141000 9451101000 9461111001 9538102518
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78100-89101

LN30,40

 1
78100-89102

LN30,40

 1
78010B - SPRING, TORSION (FOR ACCELERATOR LINK)
90508-20034

LN30,40

 1
90508-20016

LN30,40

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30100

LN30,40

 1
78104-89104

RN30,33,35,4#

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78011-89101

LN30,40,41,RN30,33,35,4#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89104

RN30,33,35,4#

COLD SPEC

 1
78120-89101

RN30,33,35,4#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89104

RN30,33,35,4#

COLD SPEC

 1
78120-89101

RN30,33,35,4#

 1
78111 - PEDAL, ACCELERATOR
78111-89102

LN3#,4#,RN3#,4#

 1
78010-89103

LN30,40,RN30,33,35,4#

COLD SPEC

 1
78111 - PEDAL, ACCELERATOR
78111-89102

LN3#,4#,RN3#,4#

 1
78010-89103

LN30,40,RN30,33,35,4#

COLD SPEC

 1
78127 - BUSH, ACCELERATOR PEDAL, NO.2
78127-20010

LN3#,4#,RN3#,4#

COLD SPEC

 1
78180 - WIRE ASSY, ACCELERATOR
78180-89122

LN30,40

 1
78180-89127

LN30,40

 1
78180-89117

RN30,33,35,4#

 1
78180-89120

RN30,33,35,4#

COLD SPEC

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-89106

LN3#,4#

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
90461-10559

LN3#,4#

 1
90461-10287

LN30,40

 1
90461-08148

RN30,33,35,4#

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78401-89101

LN30,40

 1
78410C - KNOB, THROTTLE CABLE
78411-30020

LN30,40

 1
Common parts
90170-11004
90386-10138
90461-12173
91611-40812
91611-40814
91616-40614
91651-40616
91655-40818
94141-41000
94511-01000
94611-11001
95381-02518
