LN40-QDSY3 (1979)

Toyota Hilux

Production Dec 1979 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

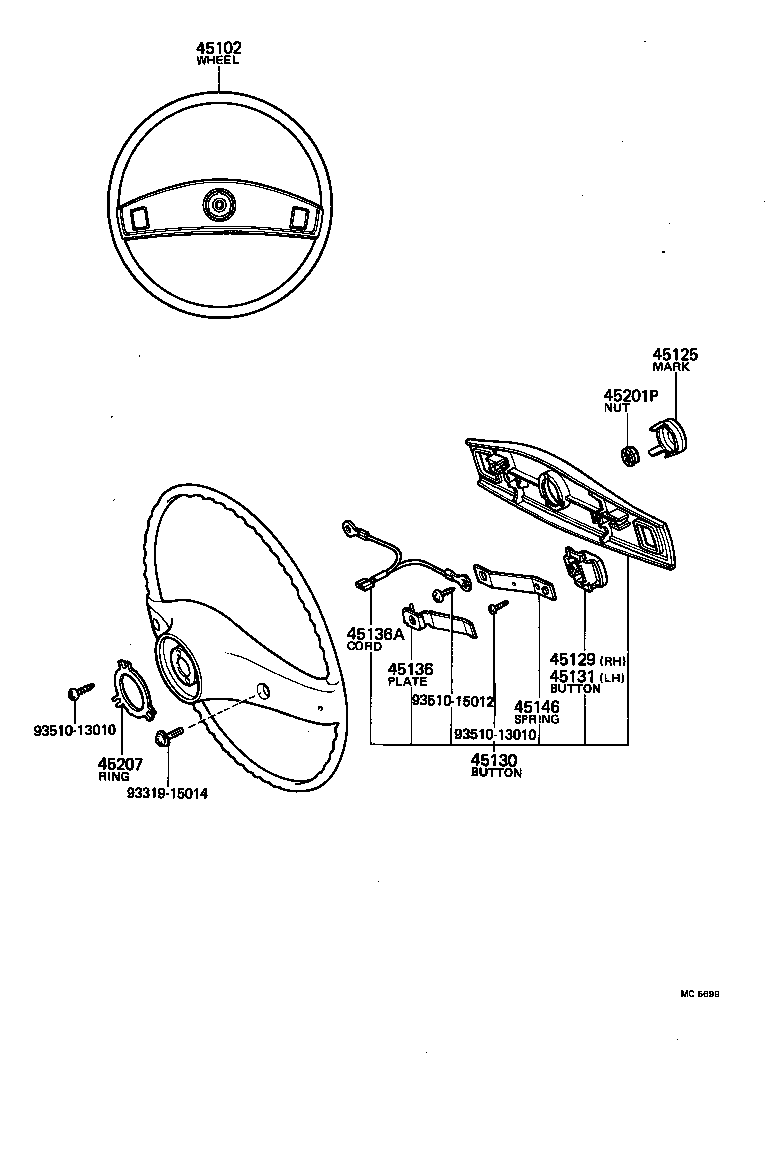

(7808-8110)LN30,40,RN30,33,4#..DLX,STD

Click highlighted areas on diagram

diagram 45102 45125 45129 45130 45131 45136 45136A 45146 45201P 45207 9331915014 9351013010 9351013010 9351015012
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-3514004

LN30,40,RN30,33,4#..DLX,STD

BLUE,BLUE,TRIM8#

 1
45100-3514001

LN30,40,RN30,33,4#..DLX,STD

BLACK,BLACK,TRIM2#

 1
45100-3514005

LN30,40,RN30,33,4#..DLX

BEIGE,BEIGE,TRIM4#

 1
45125 - MARK, STEERING WHEEL PAD
45125-35030

LN30,40,RN30,33,4#..DLX,STD

 1
45129 - BUTTON, HORN, NO.2
45129-35010

LN30,40,RN30,33,4#..DLX,STD

 1
45130 - BUTTON ASSY, HORN
45130-3510005

LN30,40,RN30,33,4#..DLX

BEIGE,BEIGE,TRIM4#

 1
45130-3510001

LN30,40,RN30,33,4#..DLX,STD

BLACK,BLACK,TRIM2#

 1
45130-3510004

LN30,40,RN30,33,4#..DLX,STD

BLUE,BLUE,TRIM8#

 1
45131 - BUTTON, HORN, NO.1
45131-35070

LN30,40,RN30,33,4#..DLX,STD

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-35030

LN30,40,RN30,33,4#..DLX,STD

RH

 1
45137-35030

LN30,40,RN30,33,4#..DLX,STD

LH

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02040

LN30,40,RN3#,4#..DLX,STD

2-SPOKE

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-35040

LN30,40,RN30,33,4#..DLX,STD

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

LN3#,4#,RN3#,4#

 1
45207 - RING, HORN CONTACT
45176-20030

LN3#,4#,RN3#,4#

 1
Common parts
93319-15014
93510-13010
93510-15012

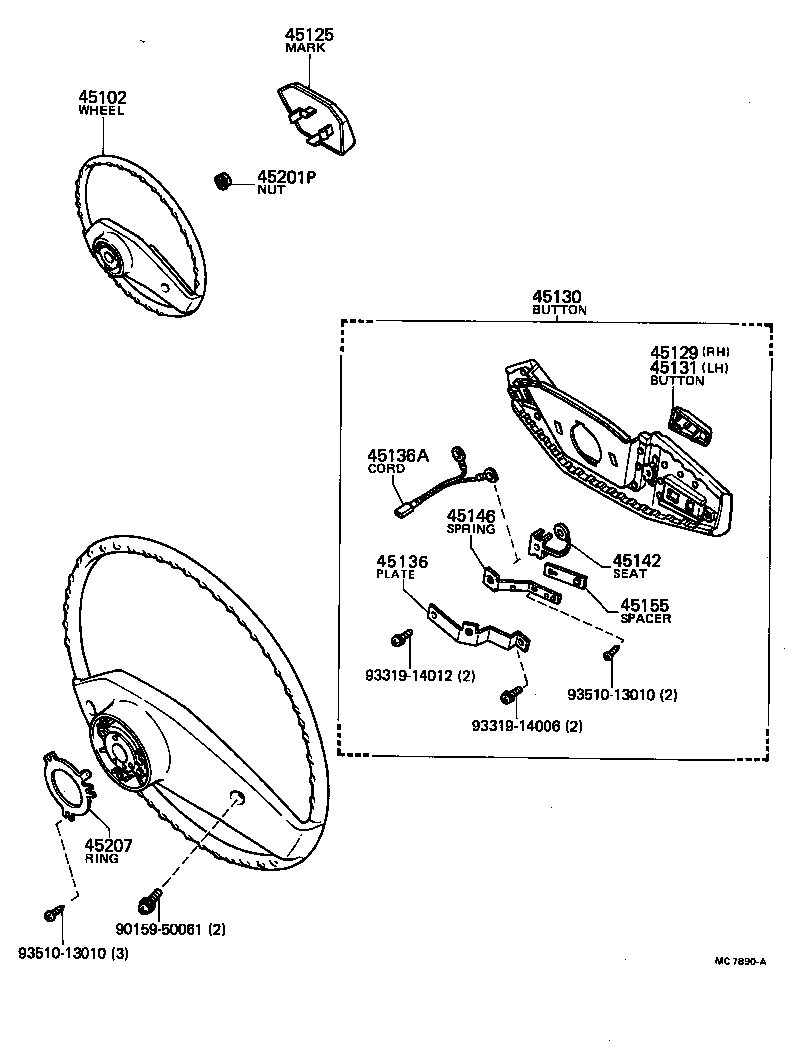

(8110- )LN30,40,41,RN35,45..DLX,STD

Click highlighted areas on diagram

diagram 45102 45125 45129 45130 45131 45136 45136A 45142 45146 45155 45201P 45207 9015950061 9331914006 9331914012 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-3514004

LN30,40,RN30,33,4#..DLX,STD

BLUE,BLUE,TRIM8#

 1
45100-3514001

LN30,40,RN30,33,4#..DLX,STD

BLACK,BLACK,TRIM2#

 1
45100-3514005

LN30,40,RN30,33,4#..DLX

BEIGE,BEIGE,TRIM4#

 1
45125 - MARK, STEERING WHEEL PAD
45125-35030

LN30,40,RN30,33,4#..DLX,STD

 1
45129 - BUTTON, HORN, NO.2
45129-35010

LN30,40,RN30,33,4#..DLX,STD

 1
45130 - BUTTON ASSY, HORN
45130-3510005

LN30,40,RN30,33,4#..DLX

BEIGE,BEIGE,TRIM4#

 1
45130-3510001

LN30,40,RN30,33,4#..DLX,STD

BLACK,BLACK,TRIM2#

 1
45130-3510004

LN30,40,RN30,33,4#..DLX,STD

BLUE,BLUE,TRIM8#

 1
45131 - BUTTON, HORN, NO.1
45131-35070

LN30,40,RN30,33,4#..DLX,STD

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-35030

LN30,40,RN30,33,4#..DLX,STD

RH

 1
45137-35030

LN30,40,RN30,33,4#..DLX,STD

LH

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02040

LN30,40,RN3#,4#..DLX,STD

2-SPOKE

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-35040

LN30,40,RN30,33,4#..DLX,STD

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

LN3#,4#,RN3#,4#

 1
45207 - RING, HORN CONTACT
45176-20030

LN3#,4#,RN3#,4#

 1
Common parts
90159-50061
93319-14006
93319-14012
93510-13010
