LN40-QDSY (1979)
Toyota Hilux
Production
Dec 1979
-
Aug 1985
Engine
L
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808-8508)RN30,33,35,4#

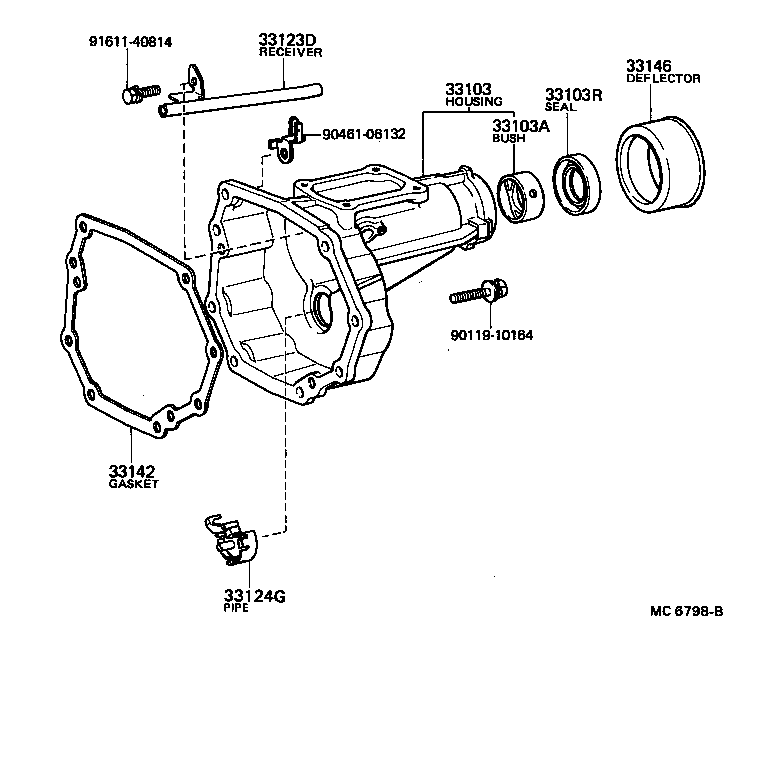

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-35070 |
LN30,40..5H |
1 | ||
| 33103-35100 |
LN40..5H |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
LN30,40,41,RN30,33,35,4# |
1 | ||
| 33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING) | ||||
| 90930-03001 |
RN30,33,35,4# |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38043 |
LN30,40,41,RN30,33,35,4# |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-35030 |
LN30,40 |
1 | ||
| 33138-28020 |
LN40 |
1 | ||
| 33142-26010 |
RN30,33,35,4# |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
LN30,40,41,RN30,33,35,4# |
1 | ||
| Common parts | ||||
| 90119-10188 | ||||
(7912-8401)LN30,40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-35070 |
LN30,40..5H |
1 | ||
| 33103-35100 |
LN40..5H |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
LN30,40,41,RN30,33,35,4# |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38043 |
LN30,40,41,RN30,33,35,4# |
1 | ||
| 33123D - RECEIVER, CASE COVER OIL(MTM) | ||||
| 33123-35011 |
LN30,40 |
1 | ||
| 33124-35010 |
LN40 |
1 | ||
| 33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING) | ||||
| 33124-26010 |
LN30,40 |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-35030 |
LN30,40 |
1 | ||
| 33138-28020 |
LN40 |
1 | ||
| 33142-26010 |
RN30,33,35,4# |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
LN30,40,41,RN30,33,35,4# |
1 | ||
| Common parts | ||||
| 90119-10164 | ||||
| 90461-06132 | ||||
| 91611-40814 | ||||
