LN40-QDSY (1979)
Toyota Hilux
Production
Dec 1979
-
Aug 1985
Engine
L
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7912-8204)L

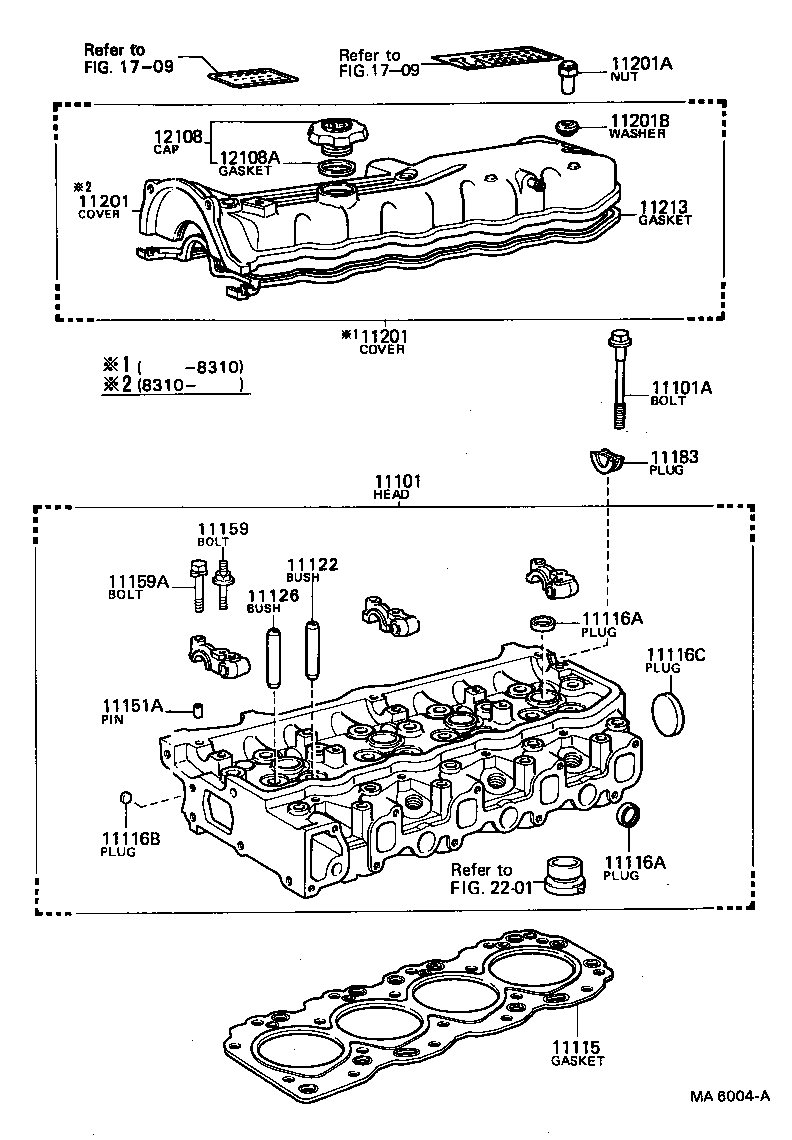

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-59077 |
L..LN30,40 |
1 | ||
| 11101-54040 |
L..LN3#,4# |
1 | ||
| 11101-54024 |
L..LN3#,4# |
1 | ||
| 11101-59075 |
L..LN30,40 |
1 | ||
| 11101-59078 |
L..LN3#,4# |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-54010 |
L..LN3#,4# |
1 | ||
| 11115-54011 |
L..LN3#,4# |
1 | ||
| 11115-54012 |
L..LN40 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-54010 |
L..LN30,40 STD |
4 | ||
| 11123-54010 |
L..LN30,40 O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-54010 |
L..LN30,40 O/S 0.05 |
4 | ||
| 11122-54010 |
L..LN30,40 STD |
4 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90116-08054 |
L..LN30,40 L=76,S=13&15 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-59016 |
L..LN30,40 |
1 | ||
| 11201-59045 |
L..LN3#,4# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-54010 |
L..LN3#,4# |
1 | ||
| Linked diagrams | ||||
| 1701 | ||||
| 1709 | ||||
| 2201 | ||||
(8204- )L,2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-59077 |
L..LN30,40 |
1 | ||
| 11101-54040 |
L..LN3#,4# |
1 | ||
| 11101-54024 |
L..LN3#,4# |
1 | ||
| 11101-59075 |
L..LN30,40 |
1 | ||
| 11101-59078 |
L..LN3#,4# |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-54010 |
L..LN3#,4# |
1 | ||
| 11115-54011 |
L..LN3#,4# |
1 | ||
| 11115-54012 |
L..LN40 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-54010 |
L..LN30,40 STD |
4 | ||
| 11123-54010 |
L..LN30,40 O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-54010 |
L..LN30,40 O/S 0.05 |
4 | ||
| 11122-54010 |
L..LN30,40 STD |
4 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90116-08054 |
L..LN30,40 L=76,S=13&15 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-59016 |
L..LN30,40 |
1 | ||
| 11201-59045 |
L..LN3#,4# |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-59016 |
L..LN30,40 |
1 | ||
| 11201-59045 |
L..LN3#,4# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-54010 |
L..LN3#,4# |
1 | ||
| Linked diagrams | ||||
| 1709 | ||||
| 2201 | ||||
