LN40-QDPY (1981)

Toyota Hilux

Production Oct 1981 - Oct 1983
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8110-8310)TW

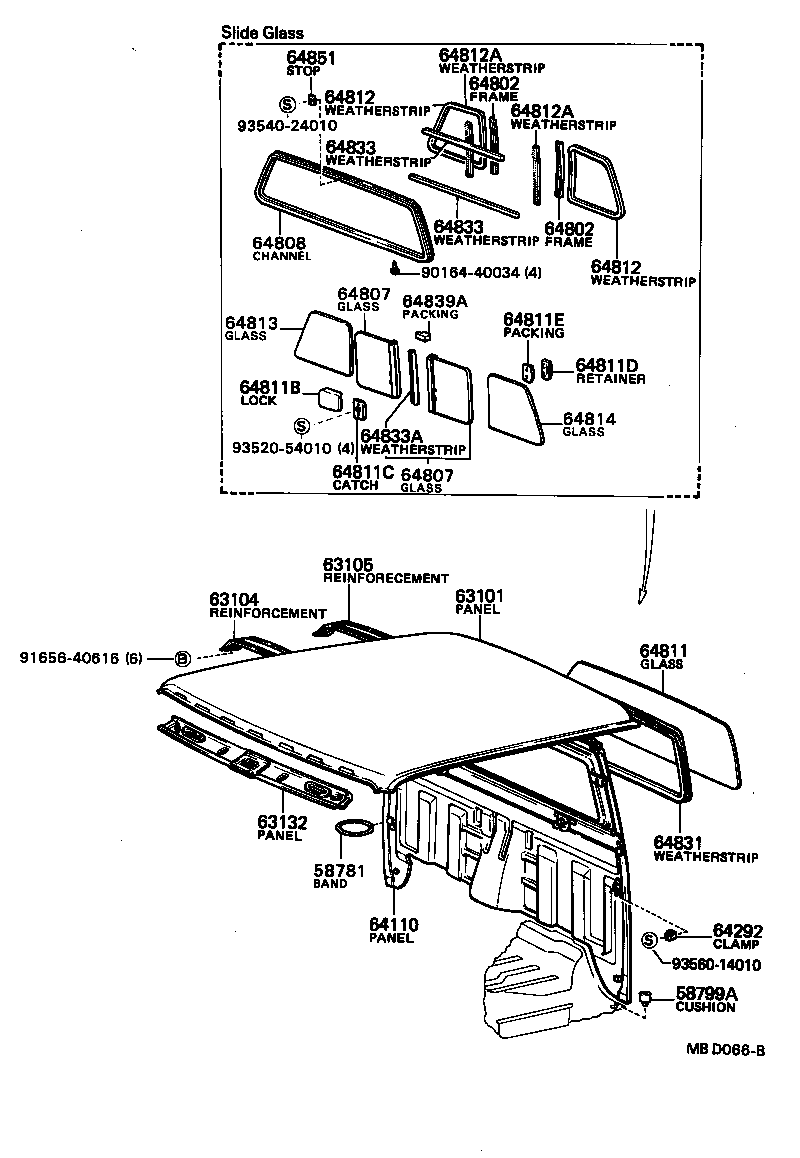

Click highlighted areas on diagram

diagram 58781 58799A 63101 63104 63105 63132 64110 64292 64802 64802 64807 64807 64808 64811 64811B 64811C 64811D 64811E 64812 64812 64812A 64812A 64813 64814 64831 64833 64833 64833A 64839A 64851 9016440034 9165640616 9352054010 9354024010 9356014010
Part # Description Qty Price
58781 - BAND, TOOL BAG
58781-89101

LN4#,RN45..TW

 1
58799A - CUSHION, JACK HANDLE
58799-89101

LN4#,RN45..TW

 1
63101 - PANEL SUB-ASSY, ROOF
63111-89107

LN4#,RN45..TW

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63103-89103

LN4#,RN45..TW

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63141-89102

LN4#,RN45..TW

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-89101

LN3#,4#,RN3#,4#

 1
64110 - PANEL ASSY, FRONT BODY BACK
64101-89110

RN30,40

 1
64101-89113

LN4#,RN45..TW

 1
64101-89119

LN40,RN45..TW

 1
64292 - CLAMP, JACK HANDLE
64292-89102

LN4#,RN45..TW

 1
64292-12010

RN30,40

 2
64811 - GLASS, BACK WINDOW
64811-89107

LN3#,4#,RN3#,4#

*TEM,T=4.0

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-89101

LN3#,4#,RN3#,4#

 1
Common parts
90164-40034
91656-40616
93520-54010
93540-24010
93560-14010
