LN40-MDSY (1979)
Toyota Hilux

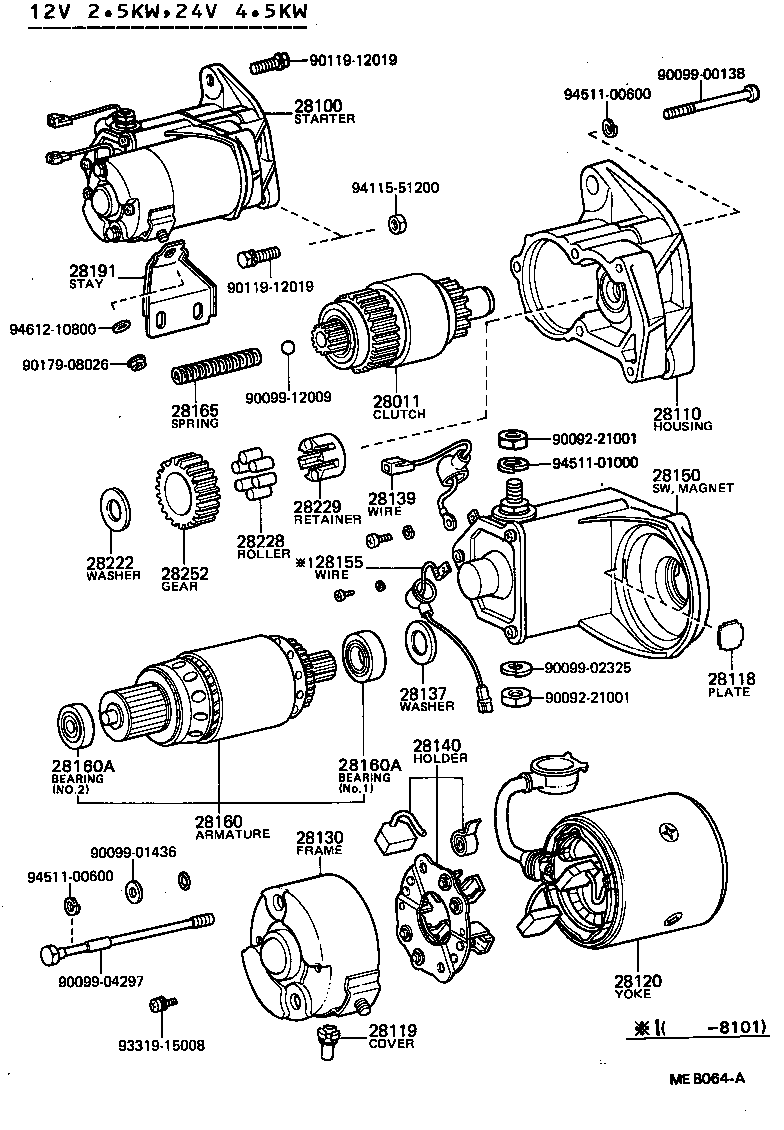

(7912- )L,2L
12V 2.5KW,24V 4.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
L..LN30,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54061 |
L..LN30,40 12V 2.5KW,12V 2.5KW |
1 | ||
| 28100-54042 |
L..LN30,40 24V 4.5KW,24V 4.5KW |
1 | ||
| 28100-54032 |
L..LN30,40 12V 2.5KW,12V 2.5KW |
1 | ||
| 28100-54023 |
L..LN30,40 24V 4.5KW,24V 4.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54010 |
L..LN30,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-77090 |
L..LN30,40 24V 4.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28139-54023 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54022 |
L..LN30,40 24V 4.5KW |
1 | ||
| 28150-54031 |
L..LN30,40 12V 2.5KW |
1 | ||
| 28150-54041 |
L..LN30,40 24V 4.5KW |
1 | ||
| 28150-54011 |
L..LN30,40 12V 2.5KW |
1 | ||
| 28155 - WIRE, LEAD, SWITCH CONNECTING | ||||
| 28139-54030 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-77090 |
L..LN30,40 24V 4.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L..LN30,40 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 90099-10119 |
L..LN30,40 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L..LN30,40 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 90099-10119 |
L..LN30,40 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08026 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||

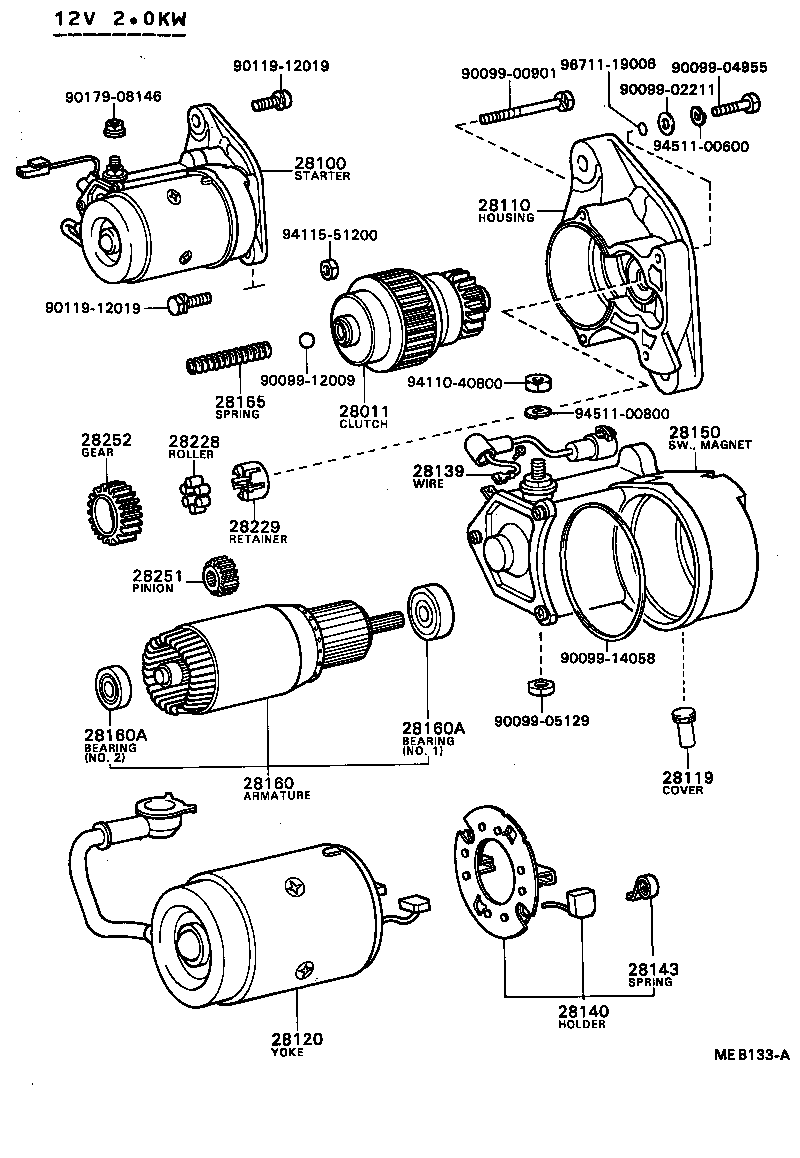

(8110- )L,2L
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
L..LN30,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54061 |
L..LN30,40 12V 2.5KW,12V 2.5KW |
1 | ||
| 28100-54042 |
L..LN30,40 24V 4.5KW,24V 4.5KW |
1 | ||
| 28100-54032 |
L..LN30,40 12V 2.5KW,12V 2.5KW |
1 | ||
| 28100-54023 |
L..LN30,40 24V 4.5KW,24V 4.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54010 |
L..LN30,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-77090 |
L..LN30,40 24V 4.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28139-54023 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54022 |
L..LN30,40 24V 4.5KW |
1 | ||
| 28150-54031 |
L..LN30,40 12V 2.5KW |
1 | ||
| 28150-54041 |
L..LN30,40 24V 4.5KW |
1 | ||
| 28150-54011 |
L..LN30,40 12V 2.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-77090 |
L..LN30,40 24V 4.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L..LN30,40 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 90099-10119 |
L..LN30,40 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L..LN30,40 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 90099-10119 |
L..LN30,40 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
L..LN30,40 12V 2.5KW,24V,4.5KW |
1 | ||
| Common parts | ||||
| 90099-00901 | ||||
| 90099-02211 | ||||
| 90099-04955 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14058 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
