LN30-QDSY (1979)

Toyota Hilux

Production Dec 1979 - Oct 1983
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7912- )L,2L

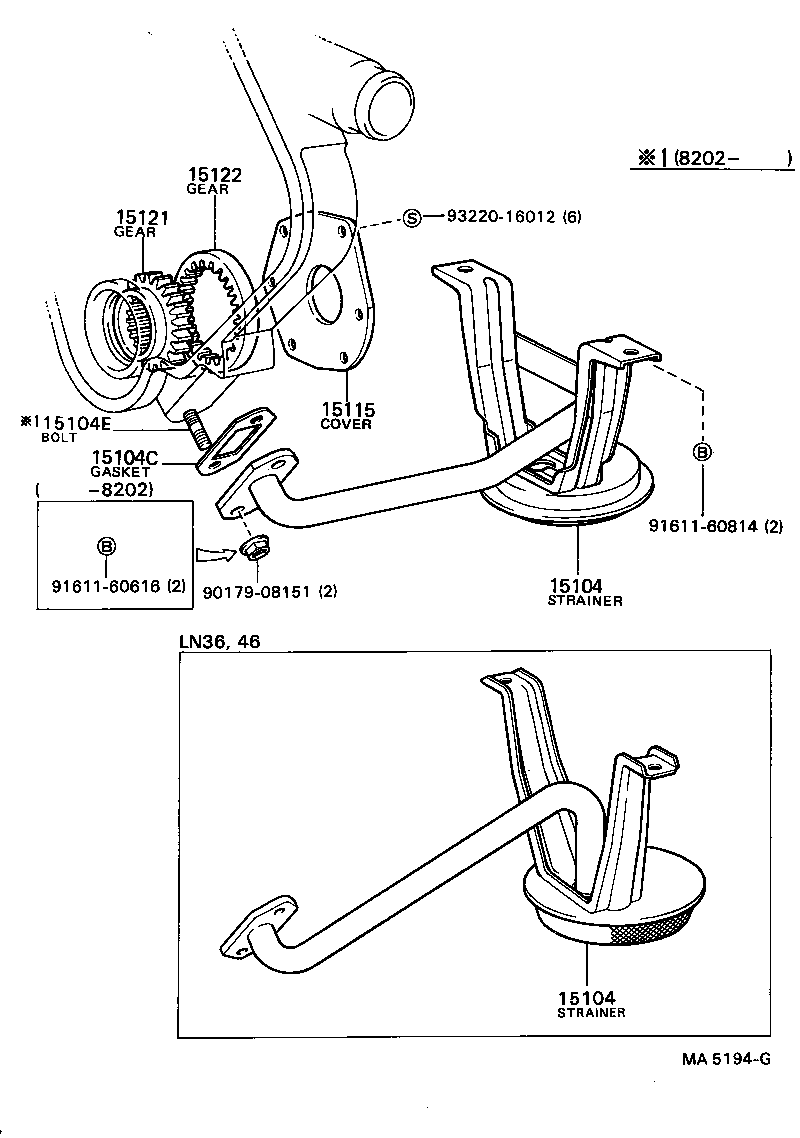

Click highlighted areas on diagram

diagram 15104 15104 15104C 15104E 15115 15121 15122 9017908151 9161160616 9161160814 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-54040

L..LN30,40

 1
15104-54042

L..LN30,40

 1
15104-54041

L..LN30,40

 1
15104 - STRAINER SUB-ASSY, OIL
15104-54040

L..LN30,40

 1
15104-54042

L..LN30,40

 1
15104-54041

L..LN30,40

 1
15104C - GASKET(FOR OIL STRAINER)
15149-54010

L..LN3#,4#

 1
15115 - COVER, OIL PUMP
15115-54010

L..LN3#,4#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-38020

L..LN3#,4#

N=42

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-38020

L..LN3#,4#

N=31

 1
Common parts
90179-08151
91611-60616
91611-60814
93220-16012
