LN172H-CRMQS (1997)
Toyota Hilux

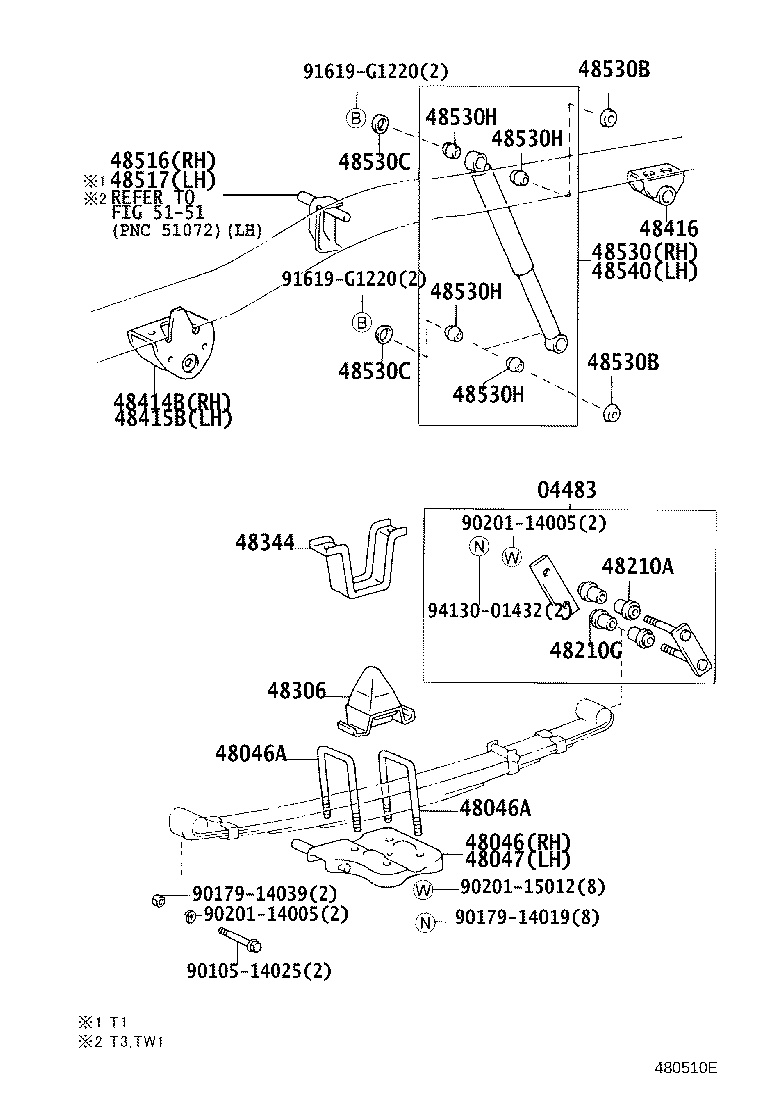

ILLUST NO. 1 OF 2(9708-0407)LN16#,17#,RZN16#,174
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-35120 |
LN167;LN147,165,17#,RZN147,152,16#,174..DCB,XTR |
2 | ||
| 04483-35120 |
LN167;LN147,172,RZN152,169,174..DCB,XTR |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35170 |
LN167,172,RZN169,174 |
1 | ||
| 48046-35170 |
LN167,172,RZN169,174 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14044 |
LN167,172,RZN169,174 長さ=165 |
4 | ||
| 90117-14044 |
LN167,172 長さ=165 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14044 |
LN167,172,RZN169,174 長さ=165 |
4 | ||
| 90117-14044 |
LN167,172 長さ=165 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35170 |
LN167,172,RZN169,174 |
1 | ||
| 48046-35170 |
LN167,172,RZN169,174 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18019 |
LN167;LN147,172,RZN147,152,169,174..DCB,XTR |
4 | ||
| 90385-18019 |
LN167;LN147,172..DCB,XTR |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18020 |
LN167;LN147,172..DCB,XTR |
4 | ||
| 90385-18020 |
LN167;LN147,172,RZN147,152,169,174..DCB,XTR |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-35190 |
LN167,172,RZN169,174 |
2 | ||
| 48306-35190 |
LN167,172 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-35020 |
LN167,172,RZN169,174 |
2 | ||
| 48344-35020 |
LN167,172 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-35120 |
LN167,172,RZN169,174 |
1 | ||
| 48414-35120 |
LN167,172 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-35050 |
LN167,172 |
1 | ||
| 48415-35050 |
LN167,172,RZN169,174 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-35070 |
LN167,172,RZN169,174 |
2 | ||
| 48416-35070 |
LN167,172 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-35070 |
LN167,172,RZN169,174 |
1 | ||
| 48505-35070 |
LN167,172,RZN169,174 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-35010 |
LN167,172,RZN174..T1 |
1 | ||
| 48506-35010 |
LN167,172,RZN174..T1 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80669 |
LN167,172,RZN169,174 ﾏｰｸ 48531−3D061 |
1 | ||
| 48531-80644 |
LN16#,17#,RZN167 |
1 | ||
| 48531-80669 |
LN167,172,RZN169,174 ﾏｰｸ 48531−3D061 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
LN167,172 |
4 | ||
| 90948-03011 |
LN167,172,RZN169,174 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
LN167,172 |
4 | ||
| 90948-03011 |
LN167,172,RZN169,174 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03020 |
LN167,172,RZN169,174 |
4 | ||
| 90948-03020 |
LN167,172 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03020 |
LN167,172,RZN169,174 |
4 | ||
| 90948-03020 |
LN167,172 |
4 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19007 |
LN167,172 |
8 | ||
| 90385-19007 |
LN167,172,RZN169,174 |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19007 |
LN167,172 |
8 | ||
| 90385-19007 |
LN167,172,RZN169,174 |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19007 |
LN167,172 |
8 | ||
| 90385-19007 |
LN167,172,RZN169,174 |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19007 |
LN167,172 |
8 | ||
| 90385-19007 |
LN167,172,RZN169,174 |
8 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-39305 |
LN16#,17#,RZN167 |
1 | ||
| 48541-39306 |
LN167,172,RZN169,174 ﾏｰｸ 48541−35221 |
1 | ||
| 48541-39306 |
LN167,172,RZN169,174 ﾏｰｸ 48541−35221 |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 90179-14019 | ||||
| 90179-14039 | ||||
| 90201-14005 | ||||
| 90201-15012 | ||||
| 91619-G1220 | ||||
| 94130-01432 | ||||
| Linked diagrams | ||||
| 5151 | ||||

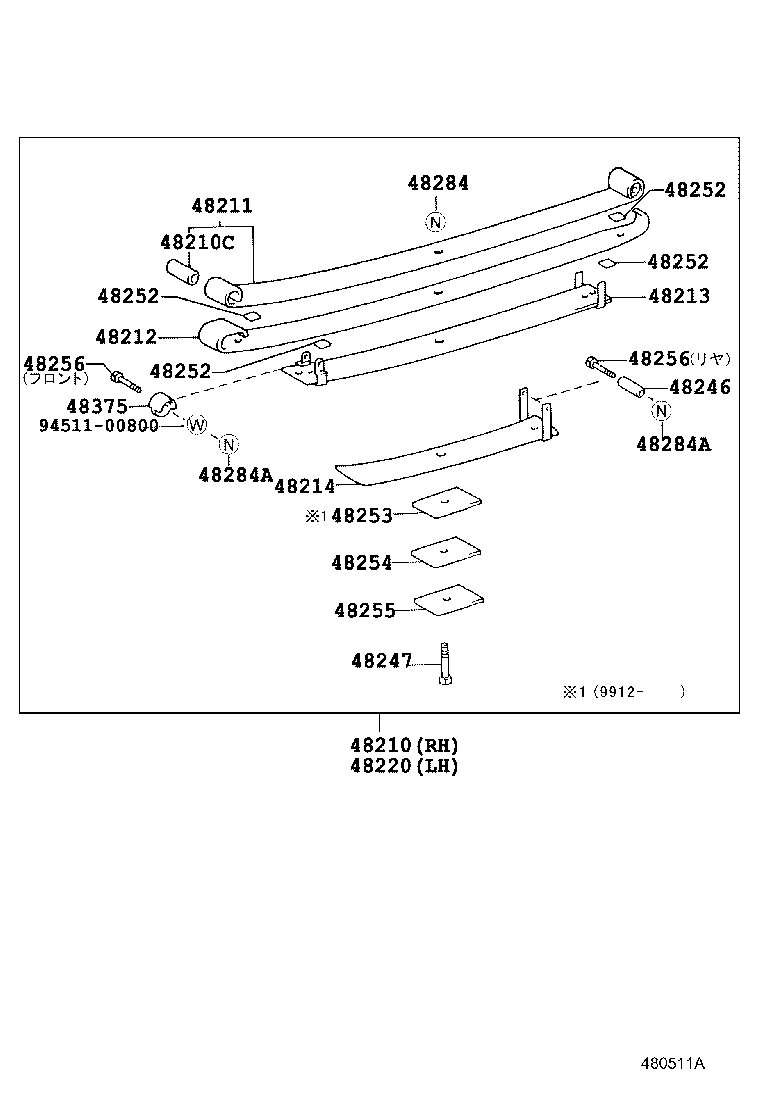

ILLUST NO. 2 OF 2(9708-0108)LN16#,17#,RZN152,16#..Q ; (9911-0108)RZN174
4-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35870 |
LN167,172,RZN169..Q 4枚ﾘｰﾌ |
1 | ||
| 48210-35872 |
LN172,RZN169,174 5枚ﾘｰﾌ |
1 | ||
| 48210-35871 |
LN167,172,RZN169,174..Q 4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
LN16#,17#,RZN152,16#,174 |
2 | ||
| 90389-14004 |
LN167,172,RZN152,169,174 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-35870 |
LN16#,17#,RZN16#..Q |
2 | ||
| 48201-35872 |
LN172 |
2 | ||
| 48201-35871 |
LN167,172,RZN169,174..Q |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35870 |
LN16#,17#,RZN16#..Q |
2 | ||
| 48212-35872 |
LN172 |
2 | ||
| 48212-35871 |
LN167,172,RZN169,174..Q |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35870 |
LN16#,17#,RZN16#..Q |
2 | ||
| 48202-35871 |
LN167,172,RZN169,174..Q |
2 | ||
| 48213-35872 |
LN172 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-35871 |
LN167,172,RZN169,174..Q |
2 | ||
| 48202-35872 |
LN172 |
2 | ||
| 48203-35870 |
LN16#,17#,RZN16#..Q |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35870 |
LN167,172,RZN169..Q 4枚ﾘｰﾌ |
1 | ||
| 48210-35872 |
LN172,RZN169,174 5枚ﾘｰﾌ |
1 | ||
| 48210-35871 |
LN167,172,RZN169,174..Q 4枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LN167,172 |
2 | ||
| 48146-60070 |
LN167,172,RZN169,174 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-27020 |
LN167,172,RZN169,174 |
2 | ||
| 48147-27020 |
LN167,172 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN167,172,RZN169,174 |
8 | ||
| 48252-26070 |
LN167,172 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN167,172,RZN169,174 |
8 | ||
| 48252-26070 |
LN167,172 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN167,172,RZN169,174 |
8 | ||
| 48252-26070 |
LN167,172 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN167,172,RZN169,174 |
8 | ||
| 48252-26070 |
LN167,172 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3D180 |
LN167,172,RZN169,174..Q |
2 | ||
| 48253-3D180 |
LN167,172 |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-26620 |
LN16#,17#,RZN16#..Q |
2 | ||
| 48254-26620 |
LN172 |
4 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48255-26690 |
LN16#,17#,RZN16#..Q |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
LN167,172,RZN169,174 ﾌﾛﾝﾄ |
2 | ||
| 48256-36570 |
LN16#,17#,RZN16#,174 ﾘﾔ |
2 | ||
| 48256-35360 |
LN16#,17#,RZN16#,174 ﾌﾛﾝﾄ |
2 | ||
| 48256-36570 |
LN167,172,RZN169,174 ﾘﾔ |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
LN167,172,RZN169,174 ﾌﾛﾝﾄ |
2 | ||
| 48256-36570 |
LN16#,17#,RZN16#,174 ﾘﾔ |
2 | ||
| 48256-35360 |
LN16#,17#,RZN16#,174 ﾌﾛﾝﾄ |
2 | ||
| 48256-36570 |
LN167,172,RZN169,174 ﾘﾔ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
LN167,172,RZN169,174 |
2 | ||
| 48284-37130 |
LN167,172 |
2 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-20440 |
LN167,172,RZN169,174 |
4 | ||
| 48284-20440 |
LN167,172 |
4 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-20440 |
LN167,172,RZN169,174 |
4 | ||
| 48284-20440 |
LN167,172 |
4 | ||
| 48375 - DAMPER, LEAF SPRING DYNAMIC | ||||
| 48375-35011 |
LN16#,17#,RZN16#,174 |
2 | ||
| 48375-35011 |
LN167,172 |
2 | ||
| Common parts | ||||
| 94511-00800 | ||||

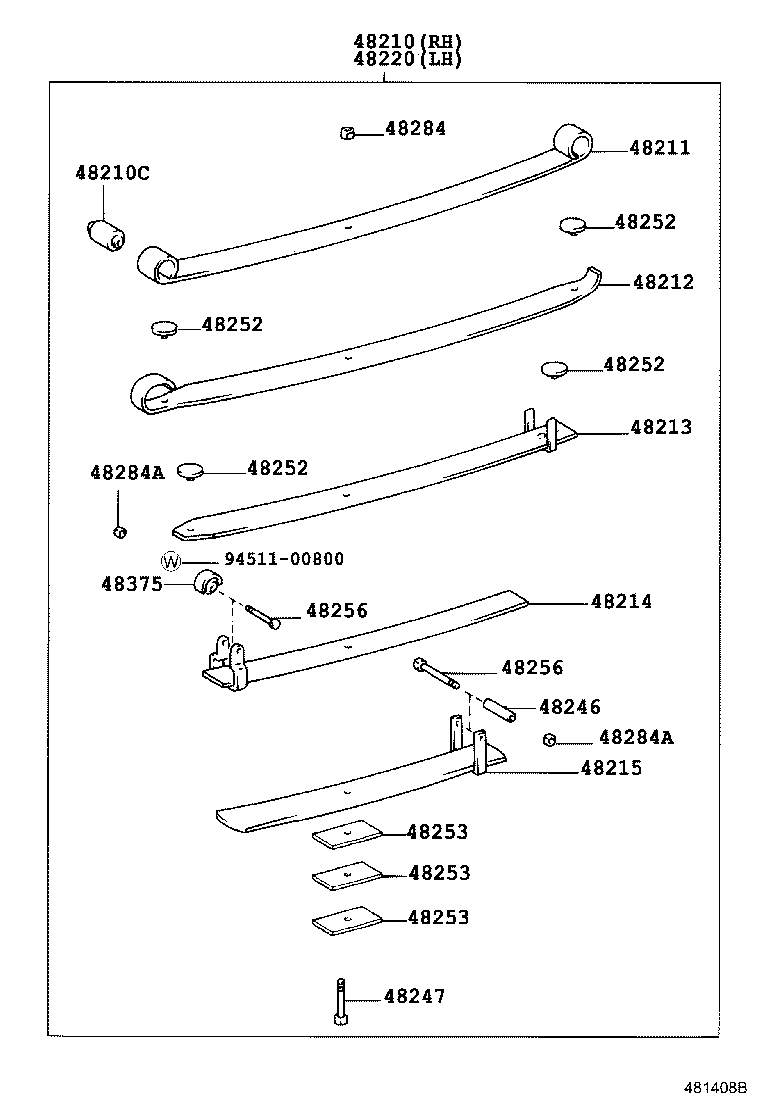

ILLUST NO. 2 OF 2(0108-0407)LN172,RZN169,174
5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35870 |
LN167,172,RZN169..Q 4枚ﾘｰﾌ |
1 | ||
| 48210-35872 |
LN172,RZN169,174 5枚ﾘｰﾌ |
1 | ||
| 48210-35871 |
LN167,172,RZN169,174..Q 4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
LN16#,17#,RZN152,16#,174 |
2 | ||
| 90389-14004 |
LN167,172,RZN152,169,174 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-35870 |
LN16#,17#,RZN16#..Q |
2 | ||
| 48201-35872 |
LN172 |
2 | ||
| 48201-35871 |
LN167,172,RZN169,174..Q |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35870 |
LN16#,17#,RZN16#..Q |
2 | ||
| 48212-35872 |
LN172 |
2 | ||
| 48212-35871 |
LN167,172,RZN169,174..Q |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35870 |
LN16#,17#,RZN16#..Q |
2 | ||
| 48202-35871 |
LN167,172,RZN169,174..Q |
2 | ||
| 48213-35872 |
LN172 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-35871 |
LN167,172,RZN169,174..Q |
2 | ||
| 48202-35872 |
LN172 |
2 | ||
| 48203-35870 |
LN16#,17#,RZN16#..Q |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-35872 |
LN172 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35870 |
LN167,172,RZN169..Q 4枚ﾘｰﾌ |
1 | ||
| 48210-35872 |
LN172,RZN169,174 5枚ﾘｰﾌ |
1 | ||
| 48210-35871 |
LN167,172,RZN169,174..Q 4枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LN167,172 |
2 | ||
| 48146-60070 |
LN167,172,RZN169,174 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-27020 |
LN167,172,RZN169,174 |
2 | ||
| 48147-27020 |
LN167,172 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN167,172,RZN169,174 |
8 | ||
| 48252-26070 |
LN167,172 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN167,172,RZN169,174 |
8 | ||
| 48252-26070 |
LN167,172 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN167,172,RZN169,174 |
8 | ||
| 48252-26070 |
LN167,172 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN167,172,RZN169,174 |
8 | ||
| 48252-26070 |
LN167,172 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3D180 |
LN167,172,RZN169,174..Q |
2 | ||
| 48253-3D180 |
LN167,172 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3D180 |
LN167,172,RZN169,174..Q |
2 | ||
| 48253-3D180 |
LN167,172 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3D180 |
LN167,172,RZN169,174..Q |
2 | ||
| 48253-3D180 |
LN167,172 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
LN167,172,RZN169,174 ﾌﾛﾝﾄ |
2 | ||
| 48256-36570 |
LN16#,17#,RZN16#,174 ﾘﾔ |
2 | ||
| 48256-35360 |
LN16#,17#,RZN16#,174 ﾌﾛﾝﾄ |
2 | ||
| 48256-36570 |
LN167,172,RZN169,174 ﾘﾔ |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
LN167,172,RZN169,174 ﾌﾛﾝﾄ |
2 | ||
| 48256-36570 |
LN16#,17#,RZN16#,174 ﾘﾔ |
2 | ||
| 48256-35360 |
LN16#,17#,RZN16#,174 ﾌﾛﾝﾄ |
2 | ||
| 48256-36570 |
LN167,172,RZN169,174 ﾘﾔ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
LN167,172,RZN169,174 |
2 | ||
| 48284-37130 |
LN167,172 |
2 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-20440 |
LN167,172,RZN169,174 |
4 | ||
| 48284-20440 |
LN167,172 |
4 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-20440 |
LN167,172,RZN169,174 |
4 | ||
| 48284-20440 |
LN167,172 |
4 | ||
| 48375 - DAMPER, LEAF SPRING DYNAMIC | ||||
| 48375-35011 |
LN16#,17#,RZN16#,174 |
2 | ||
| 48375-35011 |
LN167,172 |
2 | ||
| Common parts | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
