LN170H-CRPQT (1997)

Toyota Hilux

Production Nov 1997 - Aug 1999
Engine 2LTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0108) ; (0108- )LN147,167,RZN147

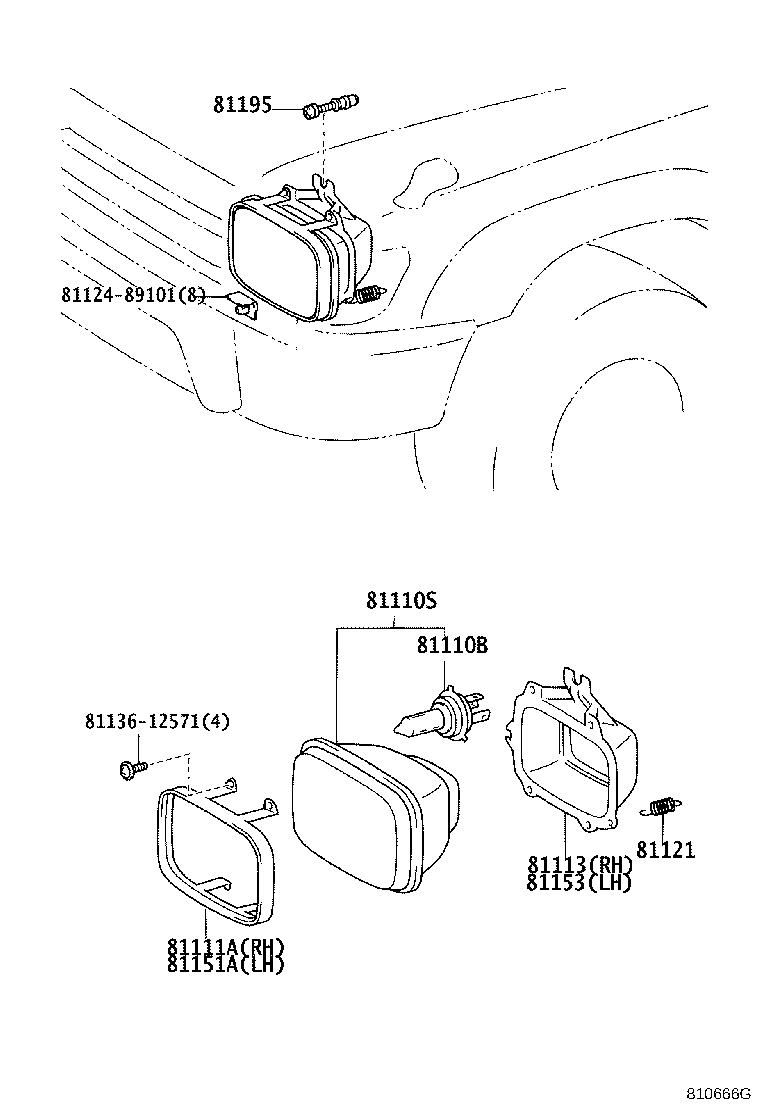

Click highlighted areas on diagram

diagram 81110B 81110S 81111A 81113 81121 8112489101 8113612571 81151A 81153 81195
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22004

LN147,16#,17#,RZN147,152,16#,174

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04045

LN147,16#,17#,RZN147,152,16#,174

12V 60/55W,*HAL,*WB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

LN147,16#,17#,RZN147,152,16#,174

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-89149

LN147,16#,17#,RZN147,152,16#,174

 1
81121 - SPRING, HEADLAMP TENSION
81121-17010

LN147,16#,17#,RZN147,152,16#,174

 2
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

LN147,16#,17#,RZN147,152,16#,174

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89149

LN147,16#,17#,RZN147,152,16#,174

 1
81195 - SCREW, HEADLAMP
81195-35010

LN147,16#,17#,RZN147,152,16#,174

 4
Common parts
81124-89101
81136-12571
