LN170H-CRPQT (1997)

Toyota Hilux

Production Nov 1997 - Aug 1999
Engine 2LTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9711- )LN17#,RZN152,174

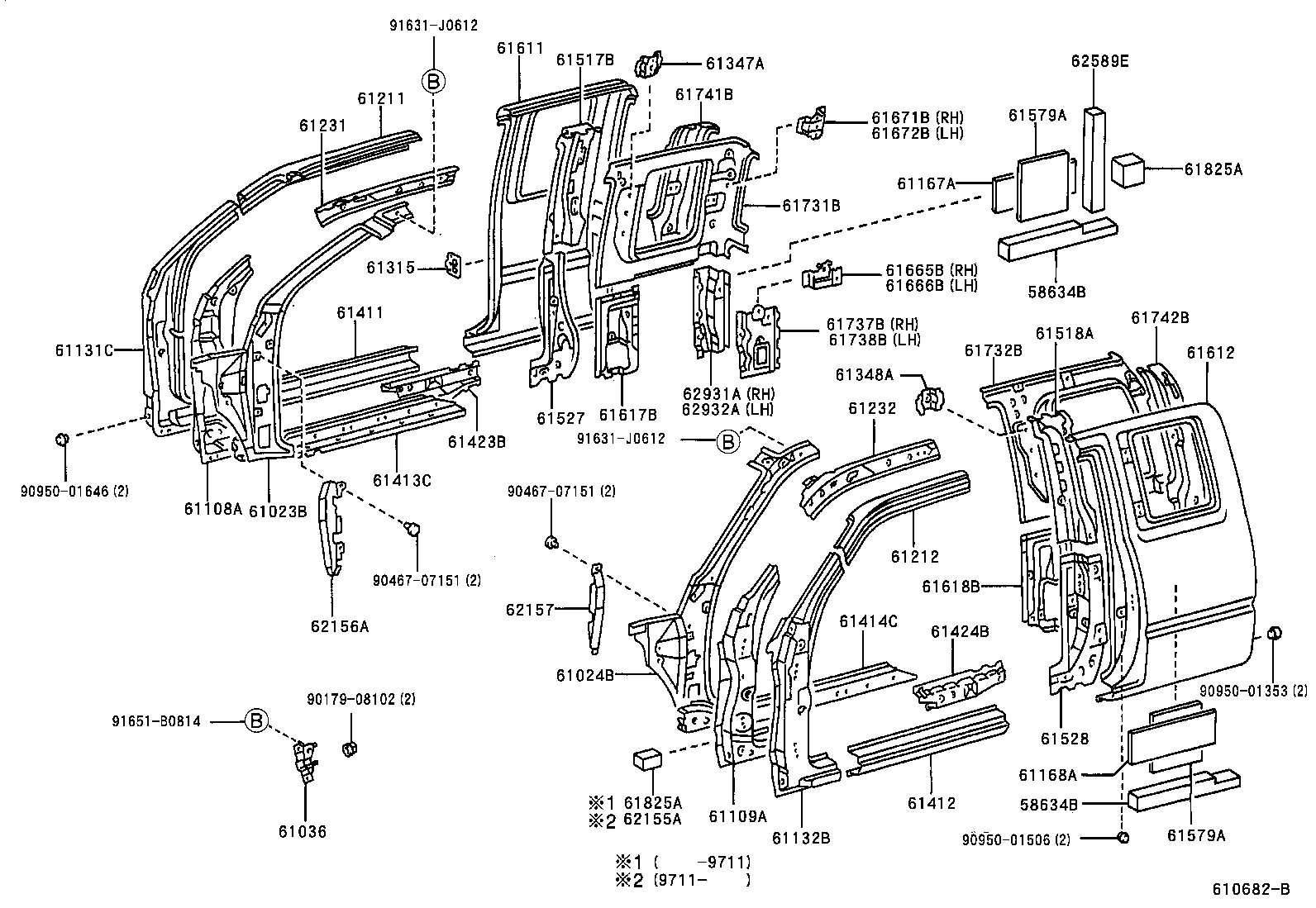

Click highlighted areas on diagram

diagram 58634B 58634B 61023B 61024B 61036 61108A 61109A 61131C 61132B 61167A 61168A 61211 61212 61231 61232 61315 61347A 61348A 61411 61412 61413C 61414C 61423B 61424B 61517B 61518A 61527 61528 61579A 61579A 61611 61612 61617B 61618B 61665B 61666B 61671B 61672B 61731B 61732B 61737B 61738B 61741B 61742B 61825A 61825A 62155A 62156A 62157 62589E 62931A 62932A 9017908102 9046707151 9046707151 9095001353 9095001506 9095001646 91631J0612 91631J0612 91651B0814
Part # Description Qty Price
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-35130

LN16#,17#,RZN147,152,16#,174..Q

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-35090

LN16#,17#,RZN147,152,16#,174..Q

 1
61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61036-35010

LN147,16#,17#,RZN147,152,16#,174

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-35030

LN165,170,RZN167

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-35030

LN165,170,RZN167

 1
61131C - PILLAR, FRONT BODY, OUTER RH
61131-35030

LN147,16#,17#,RZN147,152,16#,174

 1
61132B - PILLAR, FRONT BODY, OUTER LH
61132-35030

LN147,16#,17#,RZN147,152,16#,174

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-35030

LN147,167,17#,RZN147,152,174..T1,T3

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-35030

LN147,167,17#,RZN147,152,174..T1,T3

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-35160

LN147,167,17#,RZN147,152,174..T1,T3

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-35150

LN147,167,17#,RZN147,152,174..T1,T3

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-22020

LN165,170,RZN167

 1
61411 - PANEL, ROCKER, OUTER RH
61411-35070

LN147,167,17#,RZN147,152,174..T1,T3

 1
61412 - PANEL, ROCKER, OUTER LH
61412-35070

LN147,167,17#,RZN147,152,174..T1,T3

 1
61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH
61413-35030

LN165,170,RZN167

 1
61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH
61414-35030

LN165,170,RZN167

 1
61423B - REINFORCEMENT, ROCKER PANEL, NO.3 RH
61423-35020

LN147,167,17#,RZN147,152,174..T1,T3

 1
61424B - REINFORCEMENT, ROCKER PANEL, NO.3 LH
61424-35020

LN147,167,17#,RZN147,152,174..T1,T3

 1
61517B - REINFORCEMENT, QUARTER LOCK PILLAR, RH
61517-04050

LN170

 1
61518A - REINFORCEMENT, QUARTER LOCK PILLAR, LH
61518-04050

LN170

 1
61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH
61527-35010

LN147,167,17#,RZN147,152,174..T1,T3

 1
61528 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH
61528-35010

LN147,167,17#,RZN147,152,174..T1,T3

 1
62156A - INSULATOR, COWL SIDE, RH
62156-35020

LN147,16#,17#,RZN147,152,16#,174

 1
62157 - INSULATOR, COWL SIDE, LH
62157-35020

LN147,16#,17#,RZN147,152,16#,174

 1
Common parts
90179-08102
90467-07151
90950-01353
90950-01506
90950-01646
91631-J0612
91651-B0814
