LN167-PRMQS (1997)

Toyota Hilux

Production Aug 1997 - Aug 2001
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

Click highlighted areas on diagram

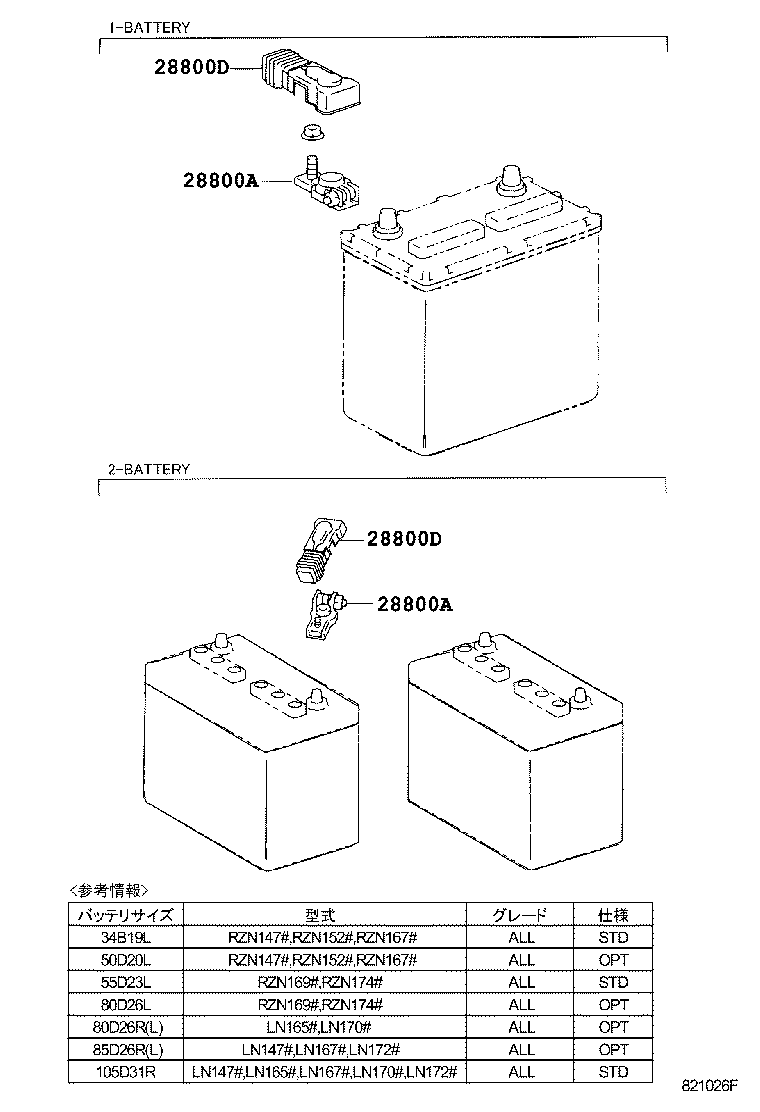

diagram 28800A 28800A 28800D 28800D
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

2LTE,5L,3RZFE..LN147,16#,17#,RZN169,174

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

2LTE,5L,3RZFE..LN147,16#,17#,RZN169,174

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-35020

2LTE,5L,1RZE,3RZFE..LN147,16#,17#,RZN147,152,16#,174

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-35020

2LTE,5L,1RZE,3RZFE..LN147,16#,17#,RZN147,152,16#,174

 1
