Toyota Hilux LN167 ACCELERATOR LINK

Manufacturers Home
Toyota
JP
HILUX
LN167-PRMDS (1997)
7851 - ACCELERATOR LINK

LN167-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jul 2004

Engine 5L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

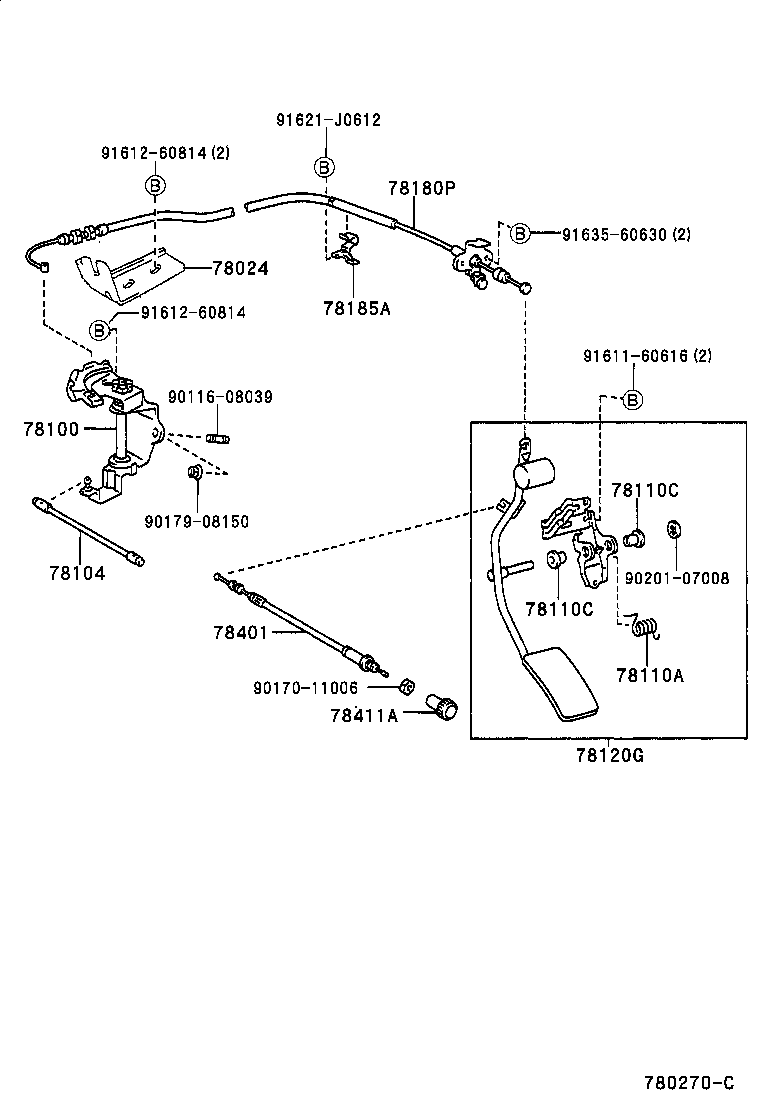

(9708- )LN147,167,172

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22100	LN147,167,172	08/2001 - 07/2004	1
78024-22100	LN147,167,172	08/1997 - 08/2001	1
78100 - LINK ASSY, ACCELERATOR
78100-35071	LN147,167,172	08/1997 - 08/2001	1
78100-35071	LN147,167,172	08/2001 - 07/2004	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-22140	LN147,167,172	08/2001 - 07/2004	1
78104-22140	LN147,167,172	08/1997 - 08/2001	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23075	LN147,167,172	08/1997 - 08/2001	1
90508-23075	LN147,167,172	08/2001 - 07/2004	1
90959-03085	RZN147,167..MTM	08/1997 - 08/2001	1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08063	LN147,16#,17#,RZN147,152,16#,174	08/1997 - 08/2001	2
90386-08063	LN147,167,172,RZN147,152,169,174	08/2001 - 07/2004	2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08063	LN147,16#,17#,RZN147,152,16#,174	08/1997 - 08/2001	2
90386-08063	LN147,167,172,RZN147,152,169,174	08/2001 - 07/2004	2
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-35290	RZN147,167..MTM	08/1997 - 08/2001	1
78120-35180	LN147,167,172	08/2001 - 07/2004	1
78120-35180	LN147,167,172	08/1997 - 08/2001	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-35430	LN147,167,172	08/1997 - 08/2001	1
78180-35370	RZN147,152,167	08/1997 - 08/2001	1
78180-35430	LN147,167,172	08/2001 - 07/2004	1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-35100	LN147,167..D	08/1997 - 08/2001	1
78185-35070	RZN147,167 ｱﾘ(ABS)	08/1997 - 08/2001	1
78185-35090	LN147,16# ｱﾘ(ABS)	08/1997 - 08/2001	1
78185-35090	LN147,167,172 ｱﾘ(ABS)	08/2001 - 07/2004	1
78185-35100	LN147,167	08/2001 - 07/2004	1
78401 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-35090	LN147,167,172	08/1997 - 08/2001	1
78401-35090	LN147,167,172	08/2001 - 07/2004	1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-89105	LN147,167,172	08/1997 - 08/2001	1
78411-89105	LN147,167,172	08/2001 - 07/2004	1
Common parts
90116-08039
90170-11006
90179-08150
90201-07008
91611-60616
91612-60814
91621-J0612
91635-60630

(9708- )RZN147,152,167

Click highlighted areas on diagram

Part #	Description	Period	Qty
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23075	LN147,167,172	08/1997 - 08/2001	1
90508-23075	LN147,167,172	08/2001 - 07/2004	1
90959-03085	RZN147,167..MTM	08/1997 - 08/2001	1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08063	LN147,16#,17#,RZN147,152,16#,174	08/1997 - 08/2001	2
90386-08063	LN147,167,172,RZN147,152,169,174	08/2001 - 07/2004	2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08063	LN147,16#,17#,RZN147,152,16#,174	08/1997 - 08/2001	2
90386-08063	LN147,167,172,RZN147,152,169,174	08/2001 - 07/2004	2
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-35290	RZN147,167..MTM	08/1997 - 08/2001	1
78120-35180	LN147,167,172	08/2001 - 07/2004	1
78120-35180	LN147,167,172	08/1997 - 08/2001	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-35430	LN147,167,172	08/1997 - 08/2001	1
78180-35370	RZN147,152,167	08/1997 - 08/2001	1
78180-35430	LN147,167,172	08/2001 - 07/2004	1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-35100	LN147,167..D	08/1997 - 08/2001	1
78185-35070	RZN147,167 ｱﾘ(ABS)	08/1997 - 08/2001	1
78185-35090	LN147,16# ｱﾘ(ABS)	08/1997 - 08/2001	1
78185-35090	LN147,167,172 ｱﾘ(ABS)	08/2001 - 07/2004	1
78185-35100	LN147,167	08/2001 - 07/2004	1
78188C - CLAMP, ACCELERATOR CONTROL CABLE, NO.5
78188-35040	RZN147,152,167	08/1997 - 08/2001	1
Common parts
90201-07008
91611-60612
91621-60614
91621-J0612
91635-60630
