LN167-PRMDS (1997)
Toyota Hilux
(9708- )TW1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65101 - BRACKET SUB-ASSY, MAIN SILL MOUNTING, NO.1 | ||||
| 65101-35010 |
LN147,167,RZN169..TW1 |
1 | ||
| 65101-35010 |
LN147,16#,RZN147,16#..TW1 |
1 | ||
| 65102 - BRACKET SUB-ASSY, MAIN SILL MOUNTING, NO.2 | ||||
| 65102-35010 |
LN147,16#,RZN147,16#..TW1 |
1 | ||
| 65102-35010 |
LN147,167,RZN169..TW1 |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65240-35040 |
LN147,167,172,RZN147,152,169,174..(T1,TW1)..CBU |
1 | ||
| 65240-35040 |
LN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU |
1 | ||
| 65311 - PANEL, FLOOR, CENTER | ||||
| 65311-35050 |
LN147,167,RZN169..TW1 |
1 | ||
| 65311-35050 |
LN147,16#,RZN147,16#..TW1 |
1 | ||
| 65739A - BUMPER, TAIL GATE | ||||
| 65739-89103 |
LN147,167,172..(T1,TW1)..CBU |
2 | ||
| 65739-89103 |
LN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU |
2 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-35140 |
LN16#,RZN167..NOB |
1 | ||
| 76625-35140 |
LN167 |
1 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-35140 |
LN16#,RZN167..NOB |
1 | ||
| 76625-35140 |
LN167 |
1 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-35140 |
LN16#,RZN167..NOB |
1 | ||
| 76625-35140 |
LN167 |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76626-35140 |
LN16#,RZN167..NOB |
1 | ||
| 76626-35140 |
LN167 |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76626-35140 |
LN16#,RZN167..NOB |
1 | ||
| 76626-35140 |
LN167 |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76626-35140 |
LN16#,RZN167..NOB |
1 | ||
| 76626-35140 |
LN167 |
1 | ||
| 76645B - BRACKET, REAR BODY MUDGUARD, RH | ||||
| 76645-35020 |
LN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU |
1 | ||
| 76645-35020 |
LN147,167,172..(T1,TW1)..CBU |
1 | ||
| 76646B - BRACKET, REAR BODY MUDGUARD, LH | ||||
| 76646-35010 |
LN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU |
1 | ||
| 76646-35010 |
LN147,167,172..(T1,TW1)..CBU |
1 | ||
| 76647B - SUPPORT, REAR BODY MUDGUARD, RH | ||||
| 76647-35050 |
LN147,167,172..(T1,TW1)..CBU |
1 | ||
| 76647-35050 |
LN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU |
1 | ||
| 76648B - SUPPORT, REAR BODY MUDGUARD, LH | ||||
| 76648-35040 |
LN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU |
1 | ||
| 76648-35040 |
LN147,167,172..(T1,TW1)..CBU |
1 | ||
| Common parts | ||||
| 90119-06877 | ||||
| 90159-40232 | ||||
| 90159-60478 | ||||
| 90950-01086 | ||||
| 91631-40614 | ||||
| 93269-55016 | ||||

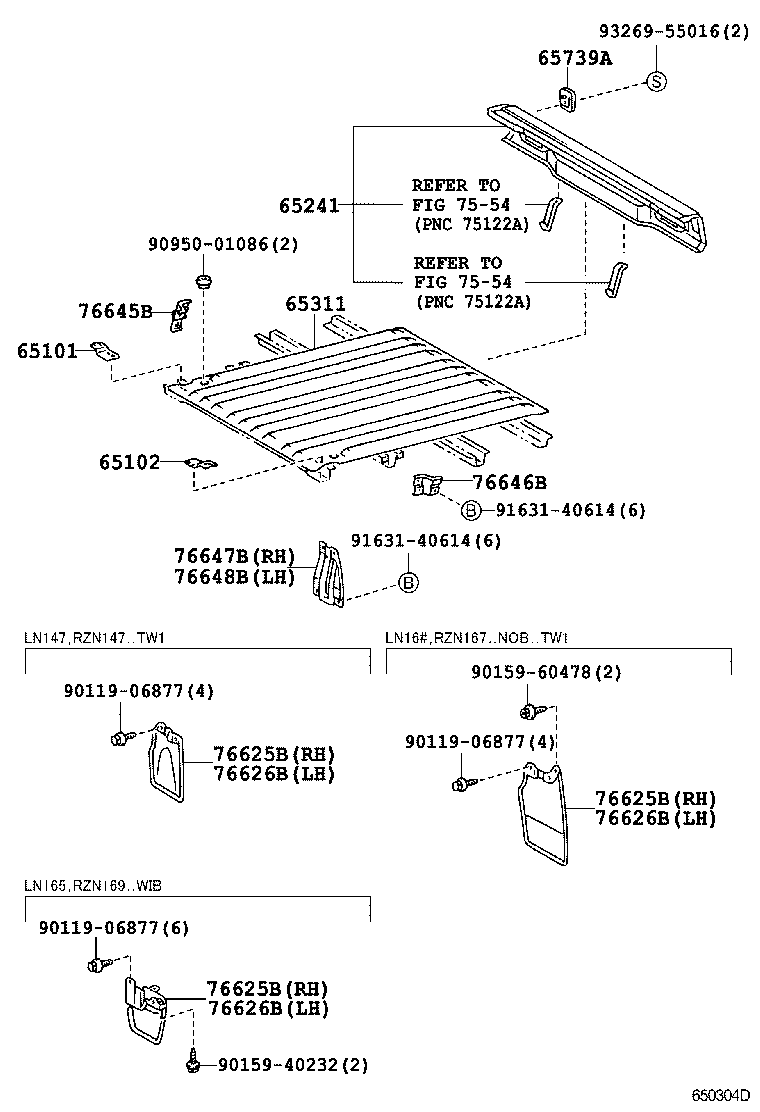

| Linked diagrams | ||||
| 7554 | ||||
