LN167-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jul 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0407)LN16#,17#,RZN16#,174

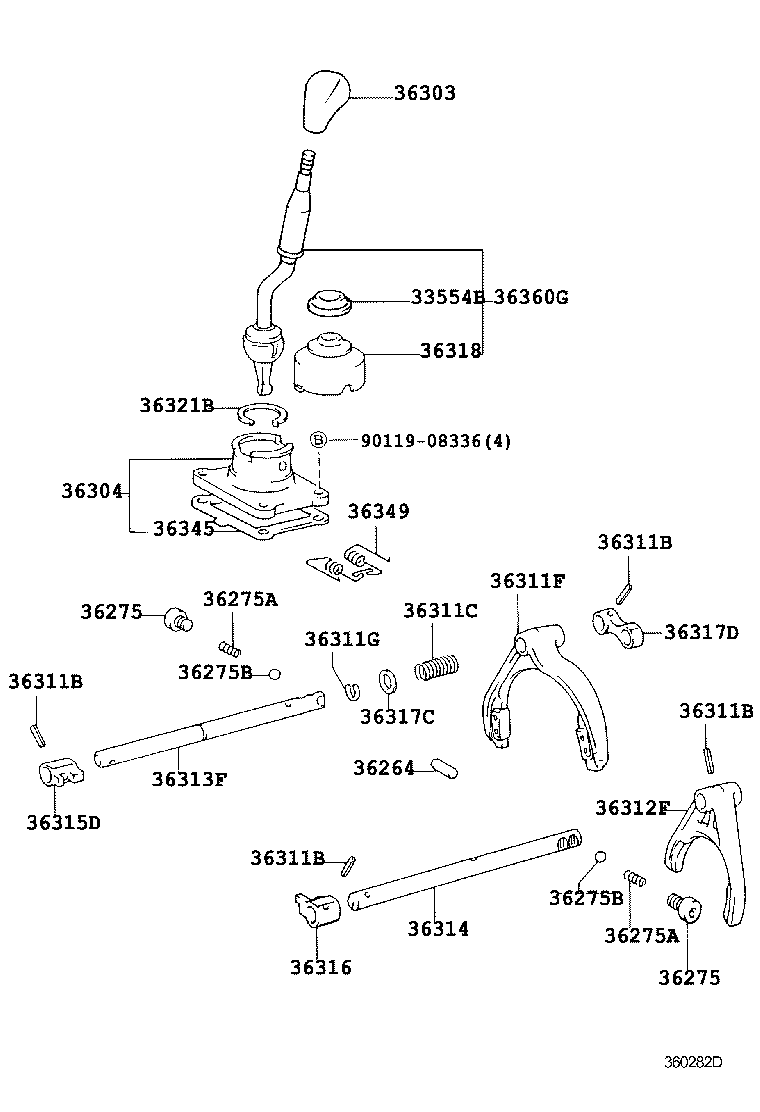

Click highlighted areas on diagram

diagram 33554B 36264 36275 36275 36275A 36275A 36275B 36275B 36303 36304 36311B 36311B 36311B 36311B 36311C 36311F 36311G 36312F 36313F 36314 36315D 36316 36317C 36317D 36318 36321B 36345 36349 36360G 9011908336
Part # Description Qty Price
33554B - CAP, TRANSFER SHIFT LEVER
33554-20010

LN167,172

 1
33554-20010

LN16#,17#,RZN16#,174

 1
36264 - PIN OR ROLLER, SHIFT INTER-LOCK
90250-10020

LN16#,17#,RZN16#,174

長さ=25.7,外径=9.53

 1
90250-10020

LN167,172,RZN169,174

長さ=25.7,外径=9.53

 1
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12014

LN167,172,RZN169,174

 2
90341-12014

LN16#,17#,RZN16#,174

 2
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12014

LN167,172,RZN169,174

 2
90341-12014

LN16#,17#,RZN16#,174

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-16116

LN167,172,RZN169,174

長さ=23

 2
90501-16116

LN16#,17#,RZN16#,174

長さ=23

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-16116

LN167,172,RZN169,174

長さ=23

 2
90501-16116

LN16#,17#,RZN16#,174

長さ=23

 2
36275B - BALL, SHIFT DETENT
90360-10003

LN16#,17#,RZN16#,174

外径=9.52,ｽﾁｰﾙ

 2
36275B - BALL, SHIFT DETENT
90360-10003

LN16#,17#,RZN16#,174

外径=9.52,ｽﾁｰﾙ

 2
36303 - KNOB SUB-ASSY, SHIFT LEVER
36303-35140B1

LN16#,17#,RZN16#,174

MD.MOON MIST,TRIM1#

 1
36303-35140B1

LN167,172

MD.MOON MIST,TRIM1#

 1
36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
36304-35051

LN167,172,RZN169,174

 1
36304-35051

LN167,172,RZN169,174

 1
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

LN16#,17#,RZN16#,174

長さ=22

 4
90254-05001

LN167,172,RZN169,174

長さ=22

 4
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

LN16#,17#,RZN16#,174

長さ=22

 4
90254-05001

LN167,172,RZN169,174

長さ=22

 4
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

LN16#,17#,RZN16#,174

長さ=22

 4
90254-05001

LN167,172,RZN169,174

長さ=22

 4
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

LN16#,17#,RZN16#,174

長さ=22

 4
90254-05001

LN167,172,RZN169,174

長さ=22

 4
36311C - SPRING, COMPRESION (FOR SHIFT FORK)
90501-20088

LN167,172,RZN169,174

 1
90501-20088

LN16#,17#,RZN16#,174

 1
36311F - FORK, TRANSFER GEAR SHIFT, NO.1
36311-35020

LN167

 1
36311-35020

LN167..D

 1
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13002

LN16#,17#,RZN16#,174

 1
90520-13002

LN167,172,RZN169,174

 1
36312F - FORK, TRANSFER GEAR SHIFT, NO.2
36312-35040

LN167,172,RZN169,174

 1
36312-35040

LN16#,17#,RZN16#,174

 1
36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36313-35080

LN16#,17#,RZN16#,174

 1
36313-35080

LN167,172,RZN169,174

 1
36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36314-35110

LN167,172,RZN169,174

 1
36314-35110

LN16#,17#,RZN16#,174

 1
36315D - HEAD, TRANSFER GEAR SHIFT, NO.1
36315-35010

LN167,172,RZN169,174

 1
36315-35010

LN16#,17#,RZN16#,174

 1
36316 - HEAD, TRANSFER GEAR SHIFT, NO.2
36316-35020

LN167,172,RZN169,174

 1
36316-35020

LN16#,17#,RZN16#,174

 1
36317C - STOPPER, TRANSFER SHIFT SHAFT
36317-35020

LN167,172,RZN169,174

 1
36317-35020

LN16#,17#,RZN16#,174

 1
36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT
36317-35030

LN167,172,RZN169,174

 1
36317-35030

LN16#,17#,RZN16#,174

 1
36318 - BOOT, TRANSFER FRONT DRIVE SHIFT
33555-35190

LN167,172

 1
33555-35190

LN16#,17#,RZN16#,174

 1
36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
90521-49003

LN16#,17#,RZN16#,174

 1
90521-49003

LN167,172

 1
36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER
36345-35040

LN167,172,RZN169,174

 1
36345-35040

LN167,172,RZN169,174

 1
36349 - SPRING, TRANSFER SELECT RETURN
36349-35020

LN167,172,RZN169,174

 1
36349-35020

LN167,172,RZN169,174

 1
36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT
36360-35400

LN167,172

 1
36360-35400

LN167,172

 1
Common parts
90119-08336
