LN167-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jul 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )5L

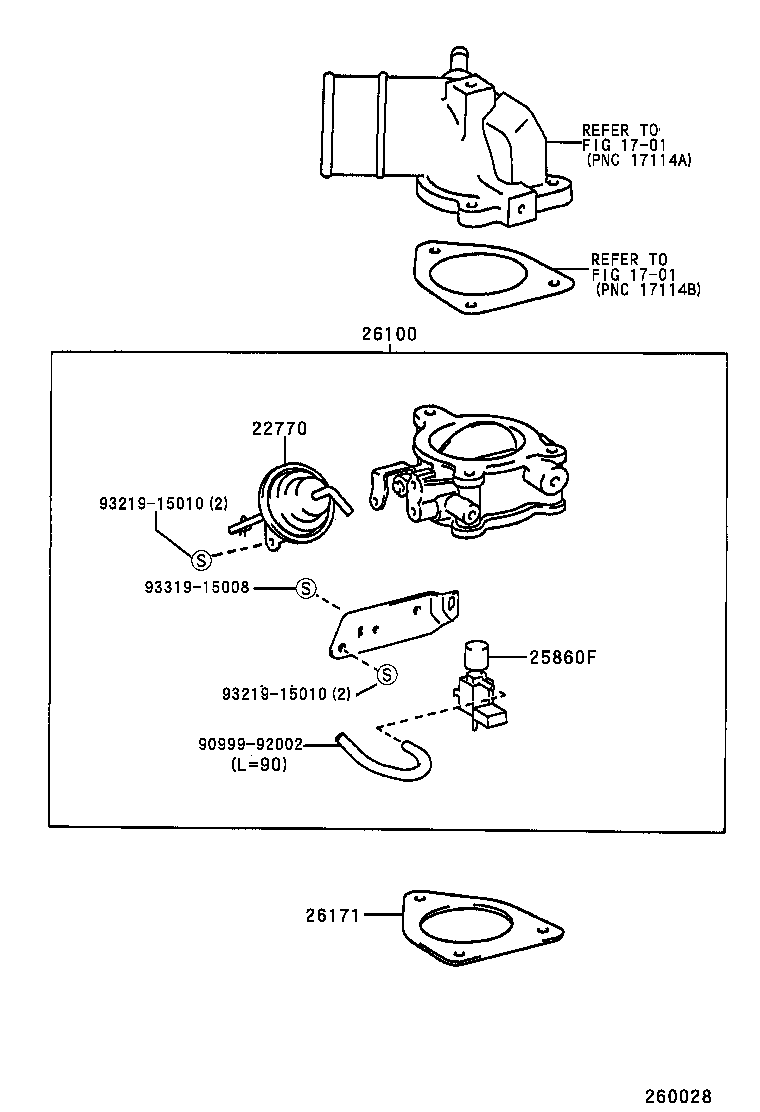

Click highlighted areas on diagram

diagram 1701 1701 22770 25860F 26100 26171 9099992002 9321915010 9321915010 9331915008
Part # Description Qty Price
22770 - ACTUATOR, IDEL UP
26133-54260

5L..LN147,167,172

 1
26133-54260

5L..LN147,167,172

 1
25860F - VALVE ASSY, VACUUM SWITCHING
25860-54020

5L..LN147,167,172

 1
25860-54020

5L..LN147,167,172

 1
26100 - VENTURI ASSY
26100-54250

5L..LN147,167,172

 1
26100-54250

5L..LN147,167,172

 1
26171 - GASKET, VENTURI
17116-54030

5L..LN147,167,172

 1
17116-54030

5L..LN147,167,172

 1
17116-54021

2LTE,5L..LN147,16#,17#

 1
Common parts
90999-92002
93219-15010
93319-15008
Linked diagrams
1701
