LN167-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jul 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )2LTE,5L..LN16#,17#

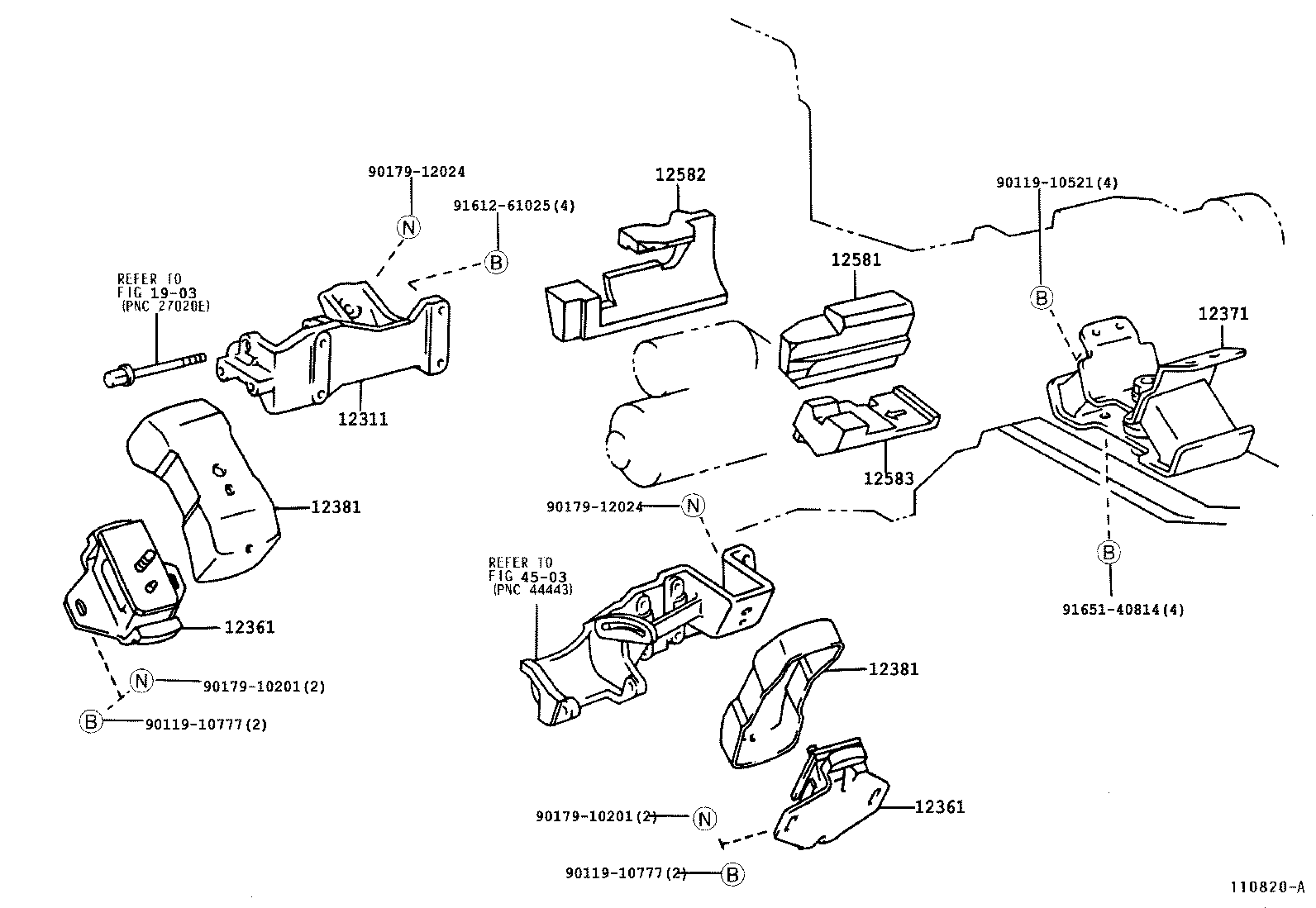

Click highlighted areas on diagram

diagram 12311 12361 12361 12371 12381 12381 12581 12582 12583 1903 4503 9011910521 9011910777 9011910777 9017910201 9017910201 9017912024 9017912024 9161261025 9165140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54181

5L..LN147,167,172

 1
12311-54181

2LTE,5L..LN147,16#,17#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

5L..LN167,172

 2
12361-54121

2LTE,5L..LN16#,17#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

5L..LN167,172

 2
12361-54121

2LTE,5L..LN16#,17#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54180

5L..LN167,172

 1
12371-54180

5L..LN167,172

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54060

5L..LN167,172

 2
12381-54060

2LTE,5L..LN16#,17#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54060

5L..LN167,172

 2
12381-54060

2LTE,5L..LN16#,17#

 2
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-54010

2LTE,5L..LN147,16#,17#

 1
12581-54010

5L..LN147,167,172

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-54021

2LTE,5L..LN147,16#,17#

 1
12582-54021

5L..LN147,167,172

 1
12583 - INSULATOR, CYLINDER BLOCK, NO.3
12583-54030

5L..LN147,167,172

 1
12583-54030

2LTE,5L..LN147,16#,17#

 1
Common parts
90119-10521
90119-10777
90179-10201
90179-12024
91612-61025
91651-40814
Linked diagrams
1903
4503
