LN165H-PRPQT (1997)

Toyota Hilux

Production Aug 1997 - Aug 1999
Engine 2LTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

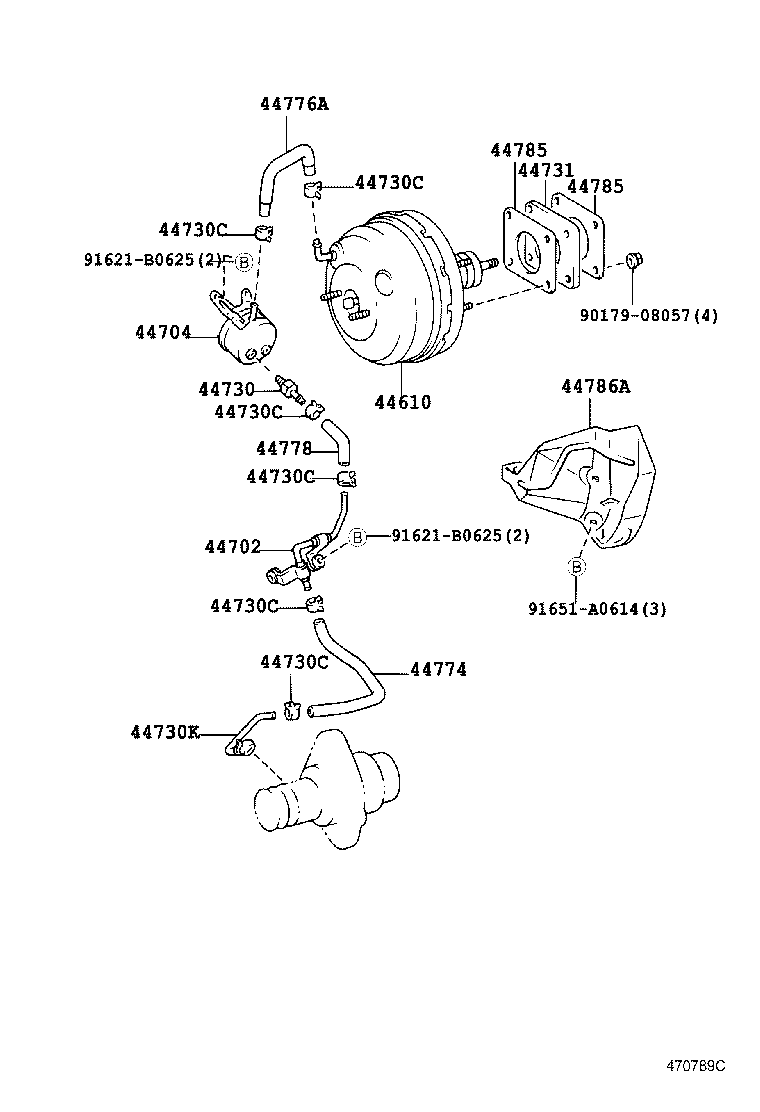

(9708- )LN165,170

Click highlighted areas on diagram

diagram 44610 44702 44704 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730K 44731 44774 44776A 44778 44785 44785 44786A 9017908057 91621B0625 91621B0625 91651A0614
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-3D750

RZN147,152,16#,174

 1
44610-3D720

LN165,170

 1
44702 - TUBE SUB-ASSY, AIR, NO.1
44702-35030

LN165,170

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-35090

LN165,170

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

LN165,170

 1
44730-10010

RZN147,152,16#,174

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN165,170

 6
90467-16002

RZN147,152,16#,174

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN165,170

 6
90467-16002

RZN147,152,16#,174

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN165,170

 6
90467-16002

RZN147,152,16#,174

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN165,170

 6
90467-16002

RZN147,152,16#,174

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN165,170

 6
90467-16002

RZN147,152,16#,174

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN165,170

 6
90467-16002

RZN147,152,16#,174

 5
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-09183

LN16#,17#..Q

ｱﾘ(ｴｱｺﾝ)

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-35090

LN165,170,RZN147,152,16#,174

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-35070

LN147,16#,17#

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-35030

LN147,16#,17#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
90445-17039

LN165,170

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN147,16#,17#,RZN147,152,16#,174

 2
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN147,16#,17#,RZN147,152,16#,174

 2
44786A - INSULATOR, BRAKE BOOSTER HEAT
44786-35040

LN165,170

 1
Common parts
90179-08057
91621-B0625
91651-A0614

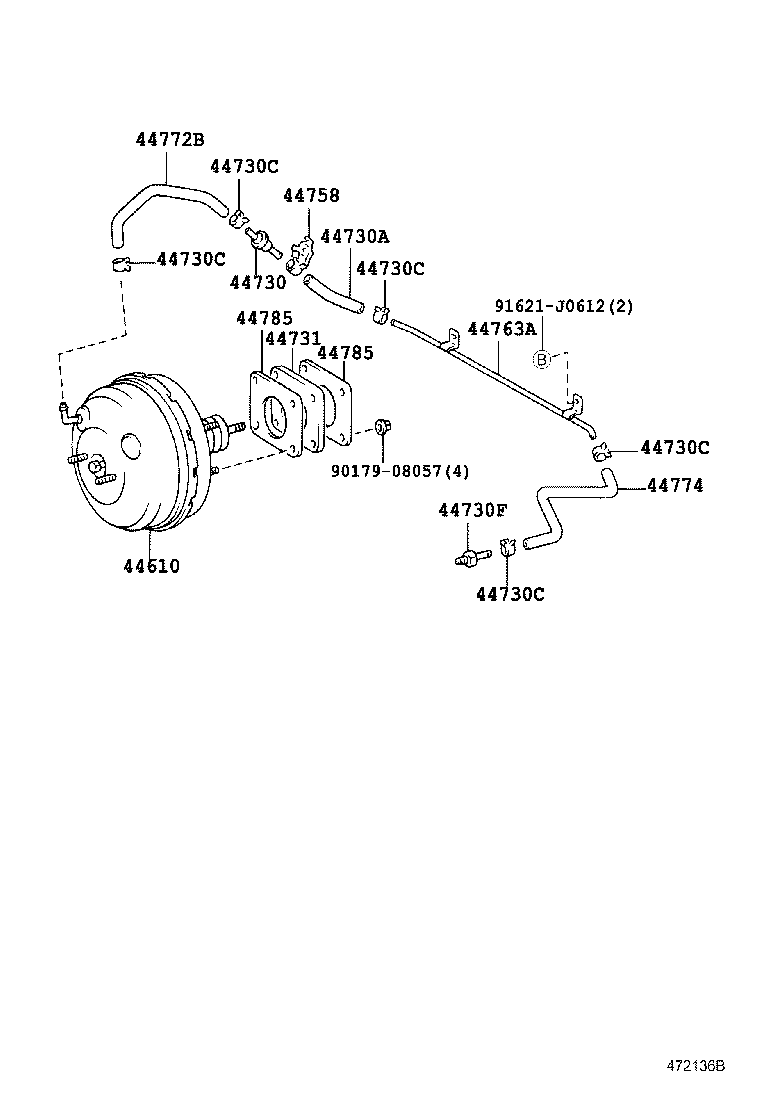

(9708- )RZN147,152,16#,174

Click highlighted areas on diagram

diagram 44610 44730 44730A 44730C 44730C 44730C 44730C 44730C 44730F 44731 44758 44763A 44772B 44774 44785 44785 9017908057 91621J0612
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-3D750

RZN147,152,16#,174

 1
44610-3D720

LN165,170

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

LN165,170

 1
44730-10010

RZN147,152,16#,174

 1
44730A - HOSE, VACUUM, NO.1
95446-09100

RZN147,152,16#,174

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN165,170

 6
90467-16002

RZN147,152,16#,174

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN165,170

 6
90467-16002

RZN147,152,16#,174

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

RZN147,152,16#,174

 5
90467-16002

LN165,170

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN165,170

 6
90467-16002

RZN147,152,16#,174

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN165,170

 6
90467-16002

RZN147,152,16#,174

 5
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RZN147,152,16#,174

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-35090

LN165,170,RZN147,152,16#,174

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-35070

RZN147,152,16#,174

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-35030

RZN147,152,16#,174

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-35340

RZN147,152,16#,174

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-35070

LN147,16#,17#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN147,16#,17#,RZN147,152,16#,174

 2
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN147,16#,17#,RZN147,152,16#,174

 2
Common parts
90179-08057
91621-J0612
