LN165H-PRPQT (1997)

Toyota Hilux

Production Aug 1997 - Aug 1999
Engine 2LTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )LN147,16#,17#,RZN147,152,167

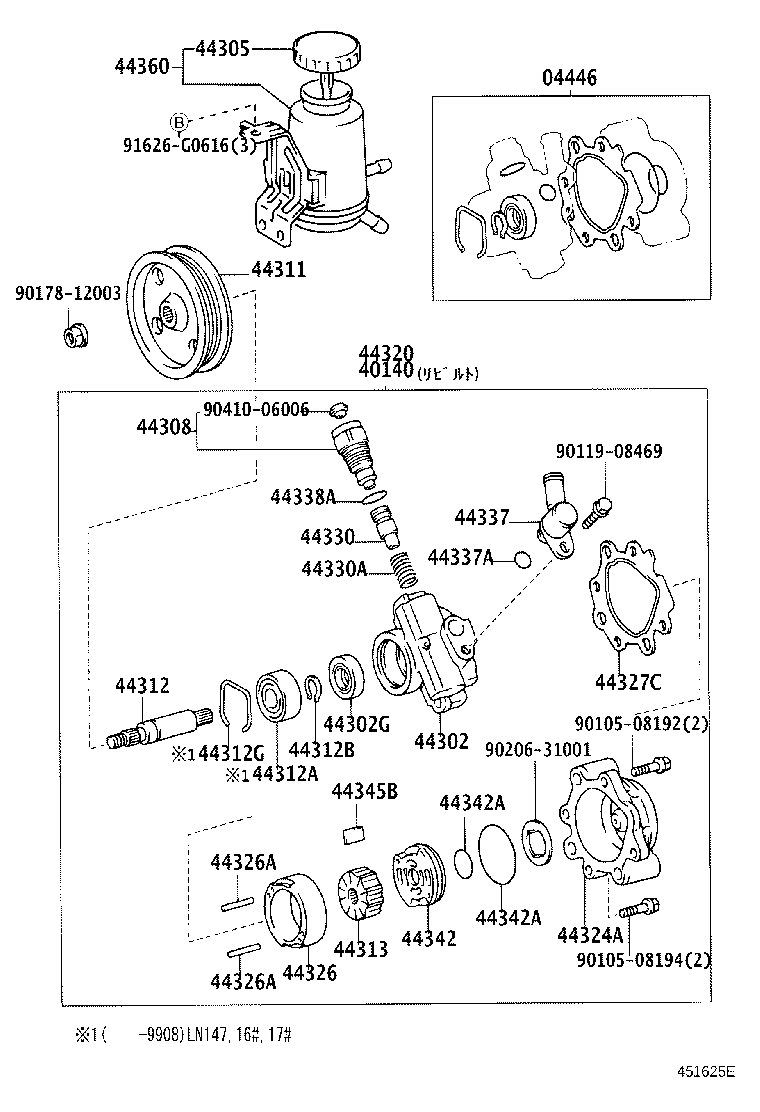

Click highlighted areas on diagram

diagram 04446 40140 44302 44302G 44305 44308 44311 44312 44312A 44312B 44312G 44313 44320 44324A 44326 44326A 44326A 44327C 44330 44330A 44337 44337A 44338A 44342 44342A 44342A 44345B 44360 9010508192 9010508194 9011908469 9017812003 9020631001 9041006006 91626G0616
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30120

LN165,170,RZN167

 1
40140 - PUMP ASSY,VANE REBUILT
40140-35520

LN147,16#,17#

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-26012

LN147,16#,17#,RZN167

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17007

LN147,16#,17#,RZN167

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-35020

LN165,170,RZN167

 1
44311 - PULLEY, VANE PUMP
44311-26040

LN147,16#,17#

 1
44312 - SHAFT, VANE PUMP
44312-26010

LN147,16#,17#,RZN167

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17013

LN147,16#,17#,RZN167

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15005

LN147,16#,17#

 1
44312G - RING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)
90521-44002

LN147,16#,17#

 1
44320 - PUMP ASSY, VANE
44320-35520

LN147,16#,17#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19018

LN147,16#,17#

内径=19.2,外径=22.3

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-35140

LN165,170,RZN167

 1
Common parts
90105-08192
90105-08194
90119-08469
90178-12003
90206-31001
90410-06006
91626-G0616
