LN165-PRPQT (1997)

Toyota Hilux

Production Aug 1997 - Aug 1999
Engine 2LTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )TW1

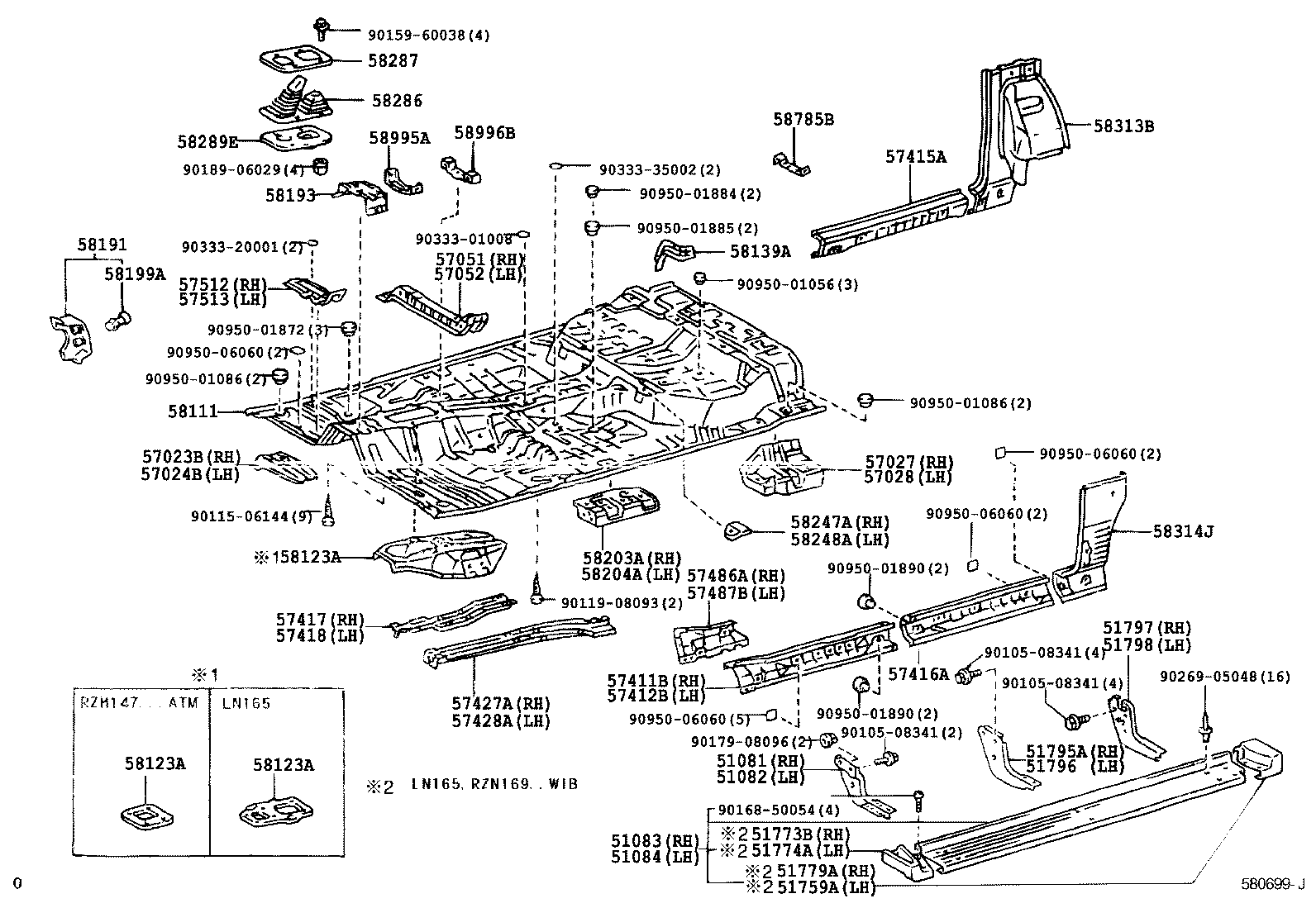

Click highlighted areas on diagram

diagram 51081 51082 51083 51084 51759A 51773B 51774A 51779A 51795A 51796 51797 51798 57023B 57024B 57027 57028 57051 57052 57411B 57412B 57415A 57416A 57417 57418 57427A 57428A 57486A 57487B 57512 57513 58111 58123A 58123A 58123A 58139A 58191 58193 58199A 58203A 58204A 58247A 58248A 58286 58287 58289E 58313B 58314J 58785B 58995A 58996B 9010508341 9010508341 9010508341 9011506144 9011908093 9015960038 9016850054 9017908096 9018906029 9026905048 9033301008 9033320001 9033335002 9095001056 9095001086 9095001086 9095001872 9095001884 9095001885 9095001890 9095001890 9095006060 9095006060 9095006060 9095006060
Part # Description Qty Price
51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH
51081-35040

LN16#,RZN167..NOB

 1
51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH
51082-35040

LN16#,RZN167..NOB

 1
51083 - STEP SUB-ASSY, RH
51083-35110

LN16#,RZN167..NOB..TW1

 1
51084 - STEP SUB-ASSY, LH
51084-35100

LN16#,RZN167..NOB..TW1

 1
51759A - COVER, SIDE DOOR STEP PLATE, REAR LH
51759-35040

LN16#,RZN167..NOB..TW1

 1
51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH
51778-35040

LN16#,RZN167..NOB

 1
51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH
51779-35040

LN16#,RZN167..NOB

 1
51779A - COVER, SIDE DOOR STEP PLATE, REAR RH
51779-35050

LN16#,RZN167..NOB..TW1

 1
51795A - BRACKET, SIDE STEP, NO.2 RH
51795-35030

LN16#,RZN167..NOB..TW1

 1
51796 - BRACKET, SIDE STEP, NO.2 LH
51796-35030

LN16#,RZN167..NOB..TW1

 1
51797 - BRACKET, SIDE STEP, NO.3 RH
51797-35050

LN16#,RZN167..NOB..TW1

 1
51798 - BRACKET, SIDE STEP, NO.3 LH
51798-35050

LN16#,RZN167..NOB..TW1

 1
57023B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57023-35050

LN147,16#,17#,RZN147,152,16#,174

 1
57024B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57024-35050

LN147,16#,17#,RZN147,152,16#,174

 1
57027 - BRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH
57027-35020

LN147,16#,RZN147,16#..TW1

 1
57028 - BRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH
57028-35020

LN147,16#,RZN147,16#..TW1

 1
57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-35040

LN16#,17#,RZN147,167..Q

 1
57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-35040

LN16#,17#,RZN147,167..Q

 1
57411B - MEMBER, FLOOR SIDE, INNER RH
57411-35050

LN147,16#,17#,RZN147,152,16#,174

 1
57412B - MEMBER, FLOOR SIDE, INNER LH
57412-35050

LN147,16#,17#,RZN147,152,16#,174

 1
57415A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH
57415-35020

LN147,16#,RZN147,16#..TW1

 1
57416A - RAIL SUB-ASSY, FLOOR SIDE, REAR LH
57416-35020

LN147,16#,RZN147,16#..TW1

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-35040

LN16#,RZN16#;LN147,17#,RZN147,174..T1,T3

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-35040

LN16#,RZN16#;LN147,17#,RZN147,174..T1,T3

 1
57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-35020

LN147,16#,17#,RZN147,152,16#,174..DCB,XTR

 1
57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH
57428-35020

LN147,16#,17#,RZN147,152,16#,174..DCB,XTR

 1
57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57486-35020

LN147,16#,17#,RZN147,152,16#,174

 1
57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57487-35020

LN147,16#,17#,RZN147,152,16#,174

 1
57512 - REINFORCEMENT, FRONT FLOOR, RH
57512-35020

LN147,16#,RZN147,167

 1
57513 - REINFORCEMENT, FRONT FLOOR, LH
57513-35020

LN147,16#,RZN147,167

 1
58111 - PAN, FRONT FLOOR
58111-35320

LN165,RZN169

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-35010

LN165,170,RZN169,174

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-35010

LN165,170,RZN169,174

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-35010

LN165,170,RZN169,174

 1
58139A - PLATE, FRONT FLOOR SIDE, REAR RH
58139-35010

LN147,16#,RZN147,16#..TW1

 1
58191 - FOOTREST, FRONT FLOOR
58190-35020

LN16#,17#,RZN147,152,16#,174..Q

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-35040

LN147,16#,17#,RZN147,152,16#,174

 1
58199A - CLIP, FOOTREST, NO.2
58199-20030

LN16#,17#,RZN147,152,16#,174..Q

 2
58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58203-35020

LN147,16#,RZN147,16#..TW1

 1
58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58204-35020

LN147,16#,RZN147,16#..TW1

 1
58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-89102

LN147,16#,RZN147,16#..TW1

 1
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-89102

LN147,16#,RZN147,16#..TW1

 1
58313B - PANEL, REAR FLOOR SIDE, RH
58313-35900

LN147,16#,RZN147,16#..TW1

 1
58314J - PANEL, REAR FLOOR SIDE, LH
58314-35030

LN147,16#,RZN147,16#..TW1

 1
58785B - BRACKET, TOOL BAG BAND
58785-89106

LN147,16#,17#,RZN147,152,16#,174..DCB,XTR

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-35030

RZN147..ATM;LN16#,17#,RZN152,16#,174

 1
Common parts
90105-08341
90115-06144
90119-08093
90159-60038
90168-50054
90179-08096
90189-06029
90269-05048
90333-01008
90333-20001
90333-35002
90950-01056
90950-01086
90950-01872
90950-01884
90950-01885
90950-01890
90950-06060
