LN165-PRPQT (1997)
Toyota Hilux

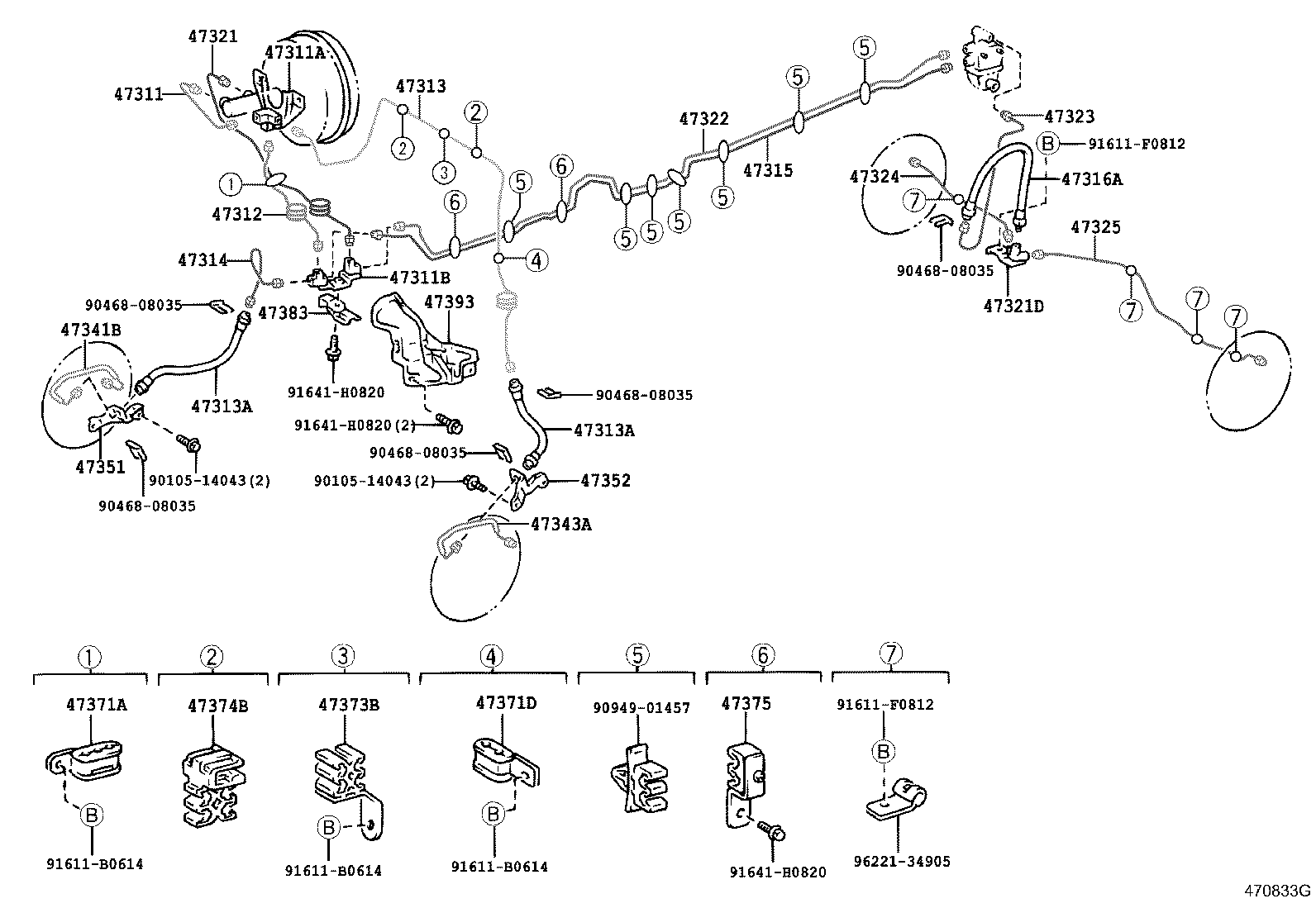

ILLUST NO. 1 OF 3(9708- )LN16#,RZN167
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-60490 |
LN147,16#,RZN147,167 ｱﾘ(ABS) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-13042 |
LN165,170 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12055 |
LN16#,RZN167 ｱﾘ(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-3D350 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02957 |
LN16#,17#,RZN16#,174 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02957 |
LN16#,17#,RZN16#,174 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35330 |
LN16#,RZN16# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02958 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-13036 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35750 |
LN16#,RZN16# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35190 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35250 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35290 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-35170 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-35170 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35310 |
LN16#,RZN167 ｱﾘ(ABS) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35360 |
LN16#,RZN167 ｱﾘ(ABS) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35230 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-35080 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35060 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-35150 |
LN147,16#,17#,RZN147,152,16#,174 |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-35030 |
LN16#,17#,RZN16#,174 |
2 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-35020 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-35160 |
LN165,170,RZN16#,174 |
1 | ||
| Common parts | ||||
| 90105-14043 | ||||
| 90468-08035 | ||||
| 90949-01457 | ||||
| 91611-B0614 | ||||
| 91611-F0812 | ||||
| 91641-H0820 | ||||
| 96221-34905 | ||||

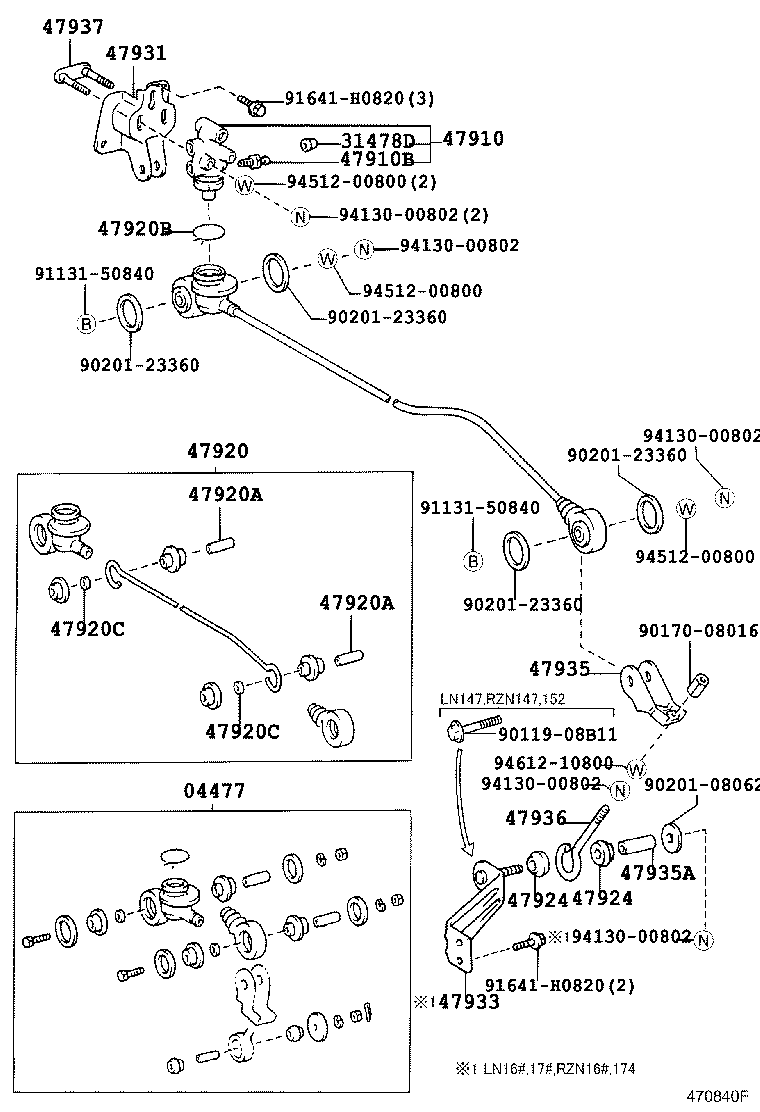

ILLUST NO. 3 OF 3(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-26010 |
LN165,170,RZN167 |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-35420 |
LN147,16#,RZN147,167 ｱﾘ(ABS) |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27020 |
LN147,16#,17#,RZN147,167 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-35080 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LN147,16#,17#,RZN147,152,16#,174 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LN147,16#,17#,RZN147,152,16#,174 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LN147,16#,17#,RZN147,152,16#,174 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LN147,16#,17#,RZN147,152,16#,174 |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
LN147,16#,17#,RZN147,152,16#,174 |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
LN147,16#,17#,RZN147,152,16#,174 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-35110 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-35070 |
LN16#,17#,RZN167 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35050 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-35030 |
LN147,16#,17#,RZN147,167 |
1 | ||
| Common parts | ||||
| 90119-08B11 | ||||
| 90170-08016 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91641-H0820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||

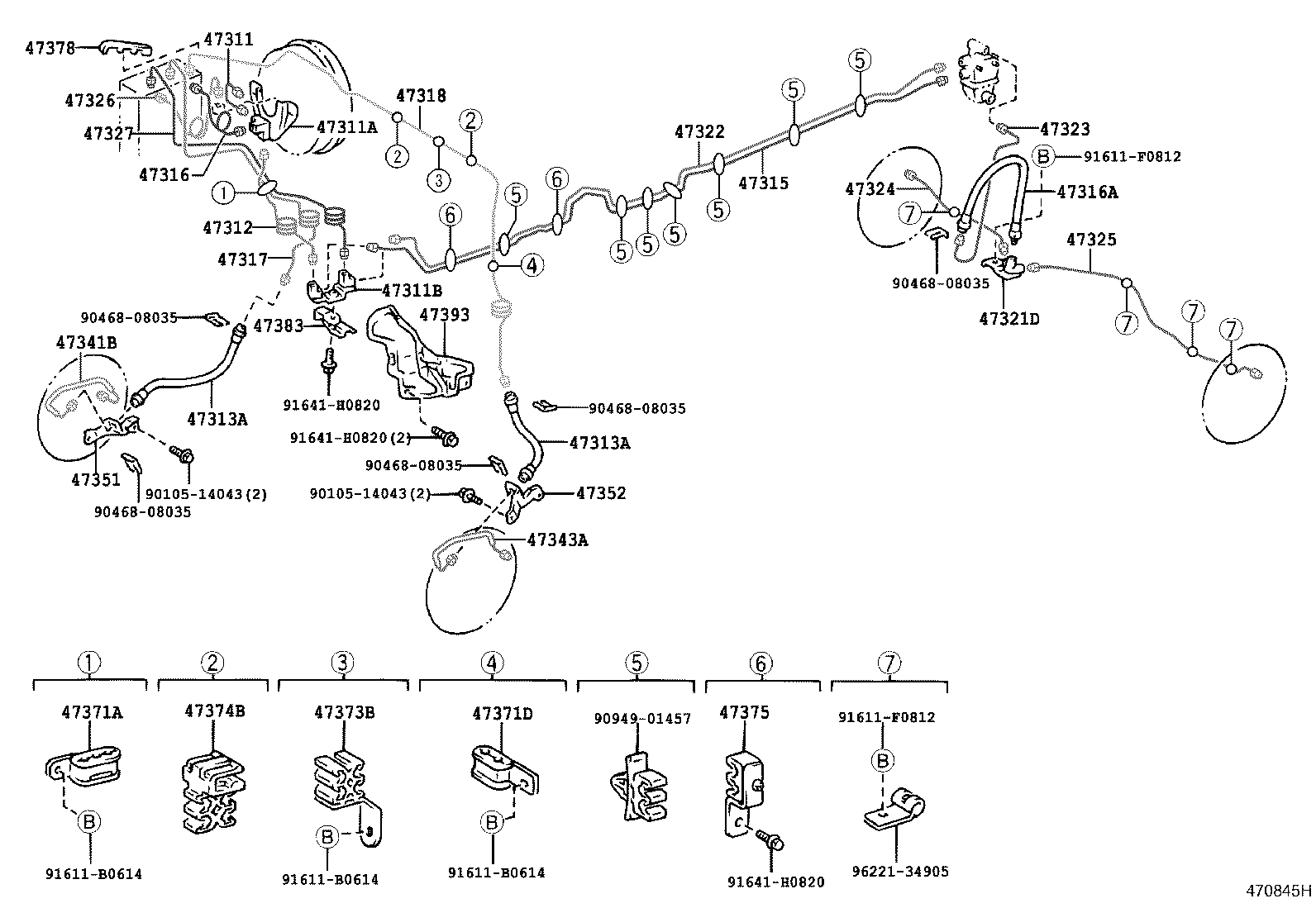

ILLUST NO. 1 OF 3(9708- )LN16#,17#,RZN16#,174
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-60490 |
LN147,16#,RZN147,167 ｱﾘ(ABS) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-13042 |
LN165,170 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12055 |
LN16#,RZN167 ｱﾘ(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-3D350 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02957 |
LN16#,17#,RZN16#,174 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02957 |
LN16#,17#,RZN16#,174 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35330 |
LN16#,RZN16# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35230 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02958 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-35050 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-35100 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-35100 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-13036 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35750 |
LN16#,RZN16# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35190 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35250 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35290 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-35070 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-35040 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-35170 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-35170 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35310 |
LN16#,RZN167 ｱﾘ(ABS) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35360 |
LN16#,RZN167 ｱﾘ(ABS) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35230 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-35080 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35060 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-35150 |
LN147,16#,17#,RZN147,152,16#,174 |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-35030 |
LN16#,17#,RZN16#,174 |
2 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-35020 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-35020 |
LN16#,17#,RZN16#,174 |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-35160 |
LN165,170,RZN16#,174 |
1 | ||
| Common parts | ||||
| 90105-14043 | ||||
| 90468-08035 | ||||
| 90949-01457 | ||||
| 91611-B0614 | ||||
| 91611-F0812 | ||||
| 91641-H0820 | ||||
| 96221-34905 | ||||

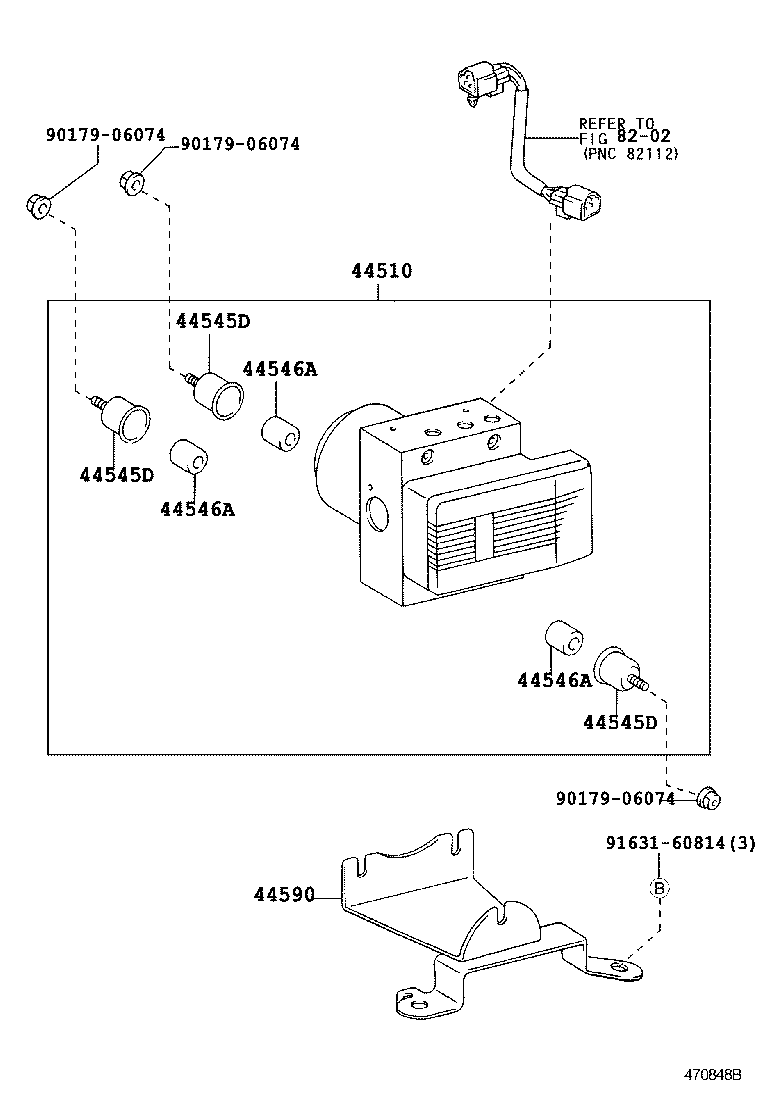

ILLUST NO. 2 OF 3(9708- )
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-35020 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
LN147,16#,17#,RZN147,152,16#,174 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
LN147,16#,17#,RZN147,152,16#,174 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
LN147,16#,17#,RZN147,152,16#,174 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
LN147,16#,17#,RZN147,152,16#,174 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
LN147,16#,17#,RZN147,152,16#,174 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
LN147,16#,17#,RZN147,152,16#,174 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-35030 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 91631-60814 | ||||
| Linked diagrams | ||||
| 8202 | ||||
