LN165-PRPQT (1997)

Toyota Hilux

Production Aug 1997 - Aug 1999
Engine 2LTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-9908)2LTE

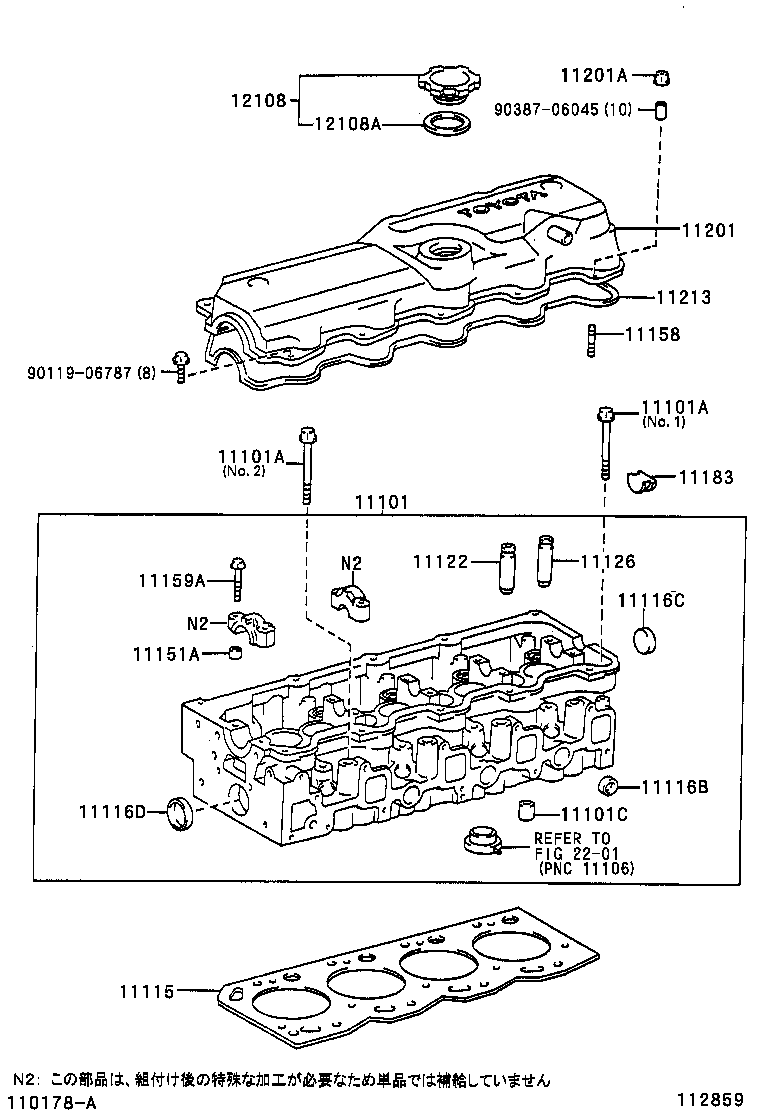

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101C 11115 11116B 11116C 11116D 11122 11126 11151A 11158 11159A 11183 11201 11201A 11213 12108 12108A 2201 9011906787 9038706045
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-54121

2LTE..LN165,170

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02081

2LTE,5L..LN147,16#,17#

NO.2

 4
90910-02080

2LTE,5L..LN147,16#,17#

NO.1

 14
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02081

2LTE,5L..LN147,16#,17#

NO.2

 4
90910-02080

2LTE,5L..LN147,16#,17#

NO.1

 14
11101C - TUBE(FOR CYLINDER HEAD)
90440-15003

2LTE,5L..LN147,16#,17#

 4
11115 - GASKET, CYLINDER HEAD
11115-05010D0

2LTE..LN165,170

MARK D,(L),修理書 参照

 1
11115-05010F0

2LTE..LN165,170

MARK F,(L),修理書 参照

 1
11115-54084B0

2LTE..LN165,170

MARK B,(J),修理書 参照

 1
11115-05011D0

2LTE..LN165,170

MARK D,(L),修理書 参照

 1
11115-05011F0

2LTE..LN165,170

MARK F,(L),修理書 参照

 1
11115-05010B0

2LTE..LN165,170

MARK B,(L),修理書 参照

 1
11115-05011B0

2LTE..LN165,170

MARK B,(L),修理書 参照

 1
11115-54084F0

2LTE..LN165,170

MARK F,(J),修理書 参照

 1
11115-54084D0

2LTE..LN165,170

MARK D,(J),修理書 参照

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

2LTE,5L..LN147,16#,17#

 7
11116C - PLUG, TIGHT, NO.3
96411-43000

2LTE,5L..LN147,16#,17#

 1
11116D - PLUG, TIGHT, NO.4
96411-44500

2LTE,5L..LN147,16#,17#

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-54020

2LTE..LN165,170

STD

 4
11123-54020

2LTE..LN165,170

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11123-54020

2LTE..LN165,170

O/S 0.05

 4
11122-54020

2LTE..LN165,170

STD

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

2LTE,5L..LN147,16#,17#

長さ=8,外径=11

 7
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
92122-80616

2LTE..LN165,170

ﾈｼﾞ部長さ=9 & 9,長さ=25

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-08166

2LTE,5L..LN147,16#,17#

 10
11183 - PLUG, SEMICIRCULAR
11183-54020

2LTE,5L..LN147,16#,17#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-54042

2LTE..LN165,170

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-06319

2LTE..LN165,170

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-54050

2LTE,5L..LN147,16#,17#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70020

2LTE,5L..LN147,16#,17#

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-70010

2LTE,5L..LN147,16#,17#

 1
Common parts
90119-06787
90387-06045
Linked diagrams
2201
