Toyota Hilux LN147 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-35300	LN147	08/2001 - 07/2004	1
45025-35300	LN147,RZN147,152	08/1997 - 08/2001	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	LN147,167,172 厚さ=1.20,上側	08/2001 - 07/2004	1
90520-17042	LN147,167,172 厚さ=1.20,下側	08/2001 - 07/2004	1
90520-17042	LN147,167,172,RZN147,152,169,174 厚さ=1.20,下側	08/1997 - 08/2001	1
90520-17269	LN147,167,172,RZN147,152,169,174 厚さ=1.20,上側	08/1997 - 08/2001	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	LN147,167,172 厚さ=1.20,上側	08/2001 - 07/2004	1
90520-17042	LN147,167,172 厚さ=1.20,下側	08/2001 - 07/2004	1
90520-17042	LN147,167,172,RZN147,152,169,174 厚さ=1.20,下側	08/1997 - 08/2001	1
90520-17269	LN147,167,172,RZN147,152,169,174 厚さ=1.20,上側	08/1997 - 08/2001	1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-35270	LN147,167,RZN147..D	08/1997 - 08/2001	1
45205-35270	LN147,167	08/2001 - 07/2004	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-35110	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	1
45209-35110	LN147,167,172	08/2001 - 07/2004	1
45210 - SHAFT ASSY, STEERING MAIN
45210-12480	LN147,167,172	08/2001 - 07/2004	1
45210-12480	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	1
45246A - GUIDE, STEERING ENERGY ABSORBING PLATE
45246-12110	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	2
45246-12110	LN147,167,172	08/2001 - 07/2004	2
45246A - GUIDE, STEERING ENERGY ABSORBING PLATE
45246-12110	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	2
45246-12110	LN147,167,172	08/2001 - 07/2004	2
45254 - SHIELD, STEERING COLUMN HOLE
45254-35150	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	1
45254-35150	LN147,167,172	08/2001 - 07/2004	1
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-12070	LN147,167,172	08/2001 - 07/2004	2
45257-12070	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	2
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-12070	LN147,167,172	08/2001 - 07/2004	2
45257-12070	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	2
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	1
45271-16020	LN147,167,172	08/2001 - 07/2004	1
45273 - BUSH, STEERING MAIN SHAFT
45273-12020	LN147,167,172	08/2001 - 07/2004	1
45273-12020	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	1
45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR
45279-12040	LN147,167,RZN147..D	08/1997 - 08/2001	1
45279-12040	LN147,167	08/2001 - 07/2004	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-12331	LN147,167,172,RZN147..MTM	08/1997 - 08/2001	1
45280-12331	LN147,167,172	08/2001 - 07/2004	1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010	LN147,167,172	08/2001 - 07/2004	1
45283-22010	LN147,16#,17#,RZN147,152,16#,174	08/1997 - 08/2001	1
45286B - COVER, STEERING COLUMN, UPR
45286-35430C0	LN147,167,RZN147 BLACK,TRIM1#	08/2001 - 07/2004	1
45286-35430C0	LN147,167,RZN147..D BLACK,TRIM1#	08/1997 - 08/2001	1
45287 - COVER, STEERING COLUMN, LWR
45287-35320C0	LN147,167,RZN147..D BLACK,TRIM1#	08/1997 - 08/2001	1
45287-35320C0	LN147,167,RZN147 BLACK,TRIM1#	08/2001 - 07/2004	1
45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING
45875-12010	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	2
45875-12010	LN147,167,172	08/2001 - 07/2004	2
45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING
45875-12010	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	2
45875-12010	LN147,167,172	08/2001 - 07/2004	2
45805A - SUPPORT SUB-ASSY, TILT STEERING
45803-35010	LN147,167	08/2001 - 07/2004	1
45803-35010	LN147,167,RZN147..D	08/1997 - 08/2001	1
45817 - STOPPER, STEERING SHAFT THRUST
45817-35030	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	1
45817-35030	LN147,167,172	08/2001 - 07/2004	1
45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45860-35190	LN147,RZN147,152	08/2001 - 07/2004	1
45860-35190	LN147,RZN147,152	08/1997 - 08/2001	1
45879A - CAPSULE, BREAK AWAY
45879-12050	LN147,167,172	08/2001 - 07/2004	2
45879-12050	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	2
45879A - CAPSULE, BREAK AWAY
45879-12050	LN147,167,172	08/2001 - 07/2004	2
45879-12050	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	2
45897 - BOLT, STEERING LOCK SET
45897-12020	LN147,167,172	08/2001 - 07/2004	2
45897-12020	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	2
45897 - BOLT, STEERING LOCK SET
45897-12020	LN147,167,172	08/2001 - 07/2004	2
45897-12020	LN147,167,172,RZN147,152,169,174	08/1997 - 08/2001	2
Common parts
90119-08560
90119-08982
90119-10478
90170-08008
90179-10132
90463-08154
91621-J0814
91631-B0618
91651-60616
93315-14012
93566-15514
93568-55014

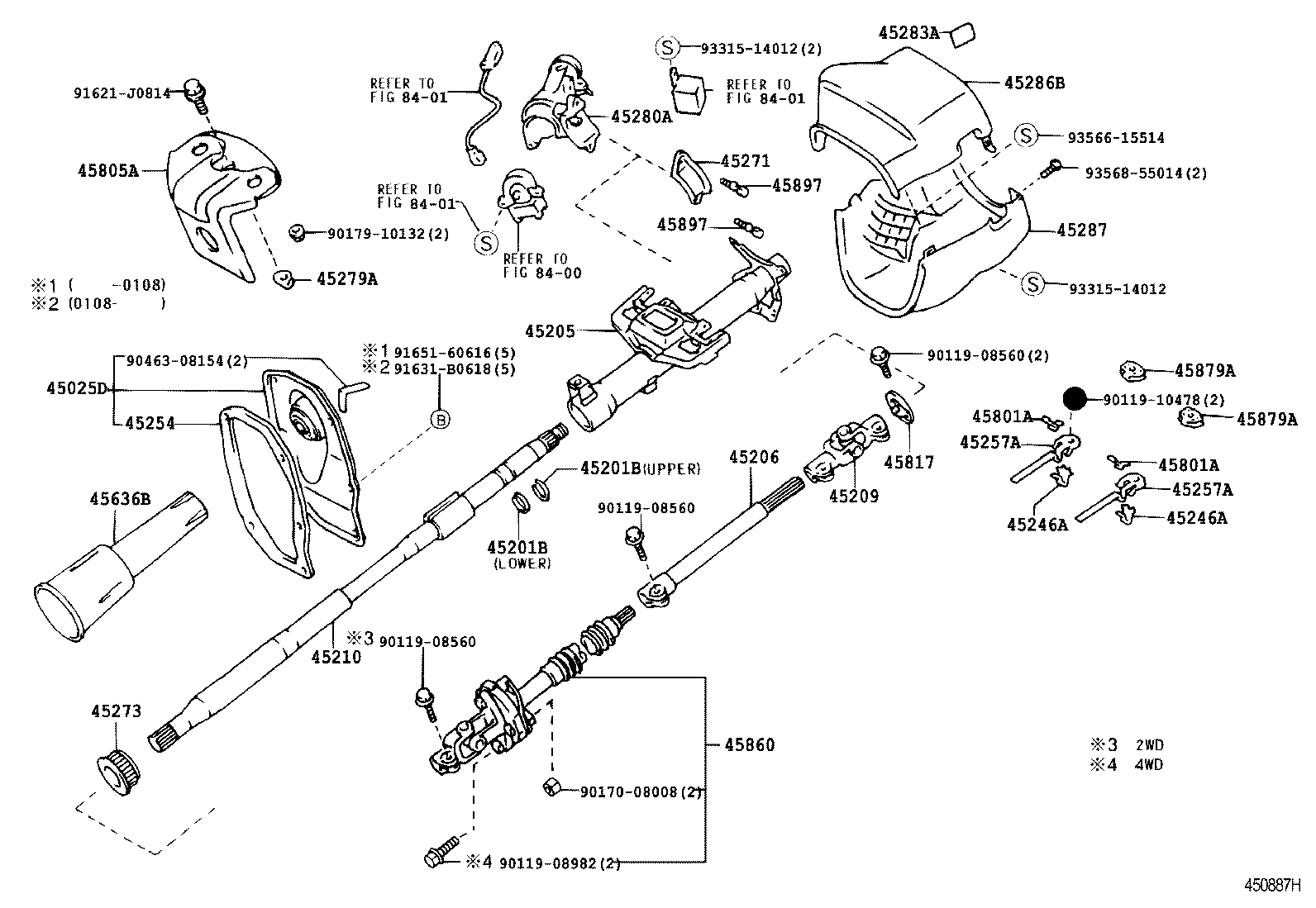

Linked diagrams
8400
8401

LN147-TRMDS3 (1997)

(9708- )
