LN147-PRMDS (1997)
Toyota Hilux

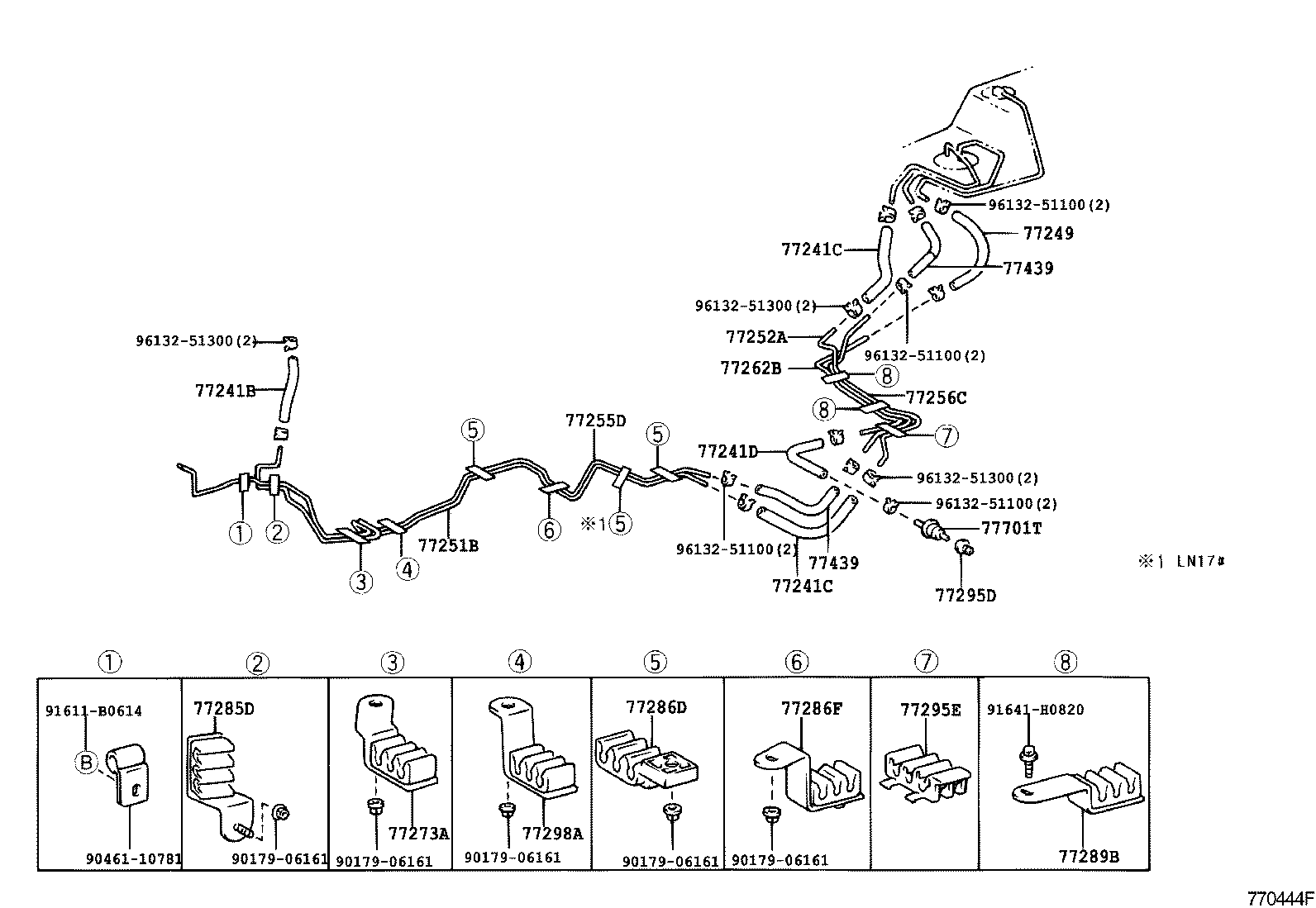

ILLUST NO. 2 OF 2(9708- )LN147,16#,17#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77279-35060 |
LN147,167,172 |
1 | ||
| 77279-35060 |
LN147,16#,17# |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
LN147,16#,17# *H,L=220,内径=7.6 |
2 | ||
| 95333-08030 |
LN147,167,172 *H,L=220,内径=7.6 |
2 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
LN147,16#,17# *H,L=220,内径=7.6 |
2 | ||
| 95333-08030 |
LN147,167,172 *H,L=220,内径=7.6 |
2 | ||
| 77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
LN147,167,172 *H,L=150 |
1 | ||
| 95333-06020 |
LN147,16#,17# *H,L=140 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
LN147,167,172 |
1 | ||
| 77249-35120 |
LN147,167,172 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D320 |
LN147,167..TW1 |
1 | ||
| 77251-3D320 |
LN147,167..TW1 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-35360 |
LN147,167,172 |
1 | ||
| 77252-35360 |
LN147,167,17# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35810 |
LN147,167..TW1 |
1 | ||
| 77255-35810 |
LN147,167..TW1 |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-35050 |
LN147,167,172 |
1 | ||
| 77256-35050 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-35060 |
LN147,167,172 |
1 | ||
| 77262-35060 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-35020 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77273-35020 |
LN147,167,172 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35320 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77285-35320 |
LN147,167,172 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35020 |
LN147,167,RZN147,169 |
2 | ||
| 77286-35020 |
LN147,167 |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35040 |
LN147,167,172 |
1 | ||
| 77286-35040 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-35020 |
LN147,167,172 |
2 | ||
| 77289-35020 |
LN147,167,172,RZN147,152,169,174 |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-35170 |
LN147,167,172 |
1 | ||
| 77295-35170 |
LN147,16#,17# |
1 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-35160 |
LN147,167,172 |
1 | ||
| 77295-35160 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-35010 |
LN147,167,172 |
1 | ||
| 77298-35010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35020 |
LN147,167,172 |
2 | ||
| 77439-35020 |
LN147,167,172 |
2 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35020 |
LN147,167,172 |
2 | ||
| 77439-35020 |
LN147,167,172 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
LN147,16#,17# |
1 | ||
| 90917-10090 |
LN147,167,172 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90461-10781 | ||||
| 91611-B0614 | ||||
| 91641-H0820 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||

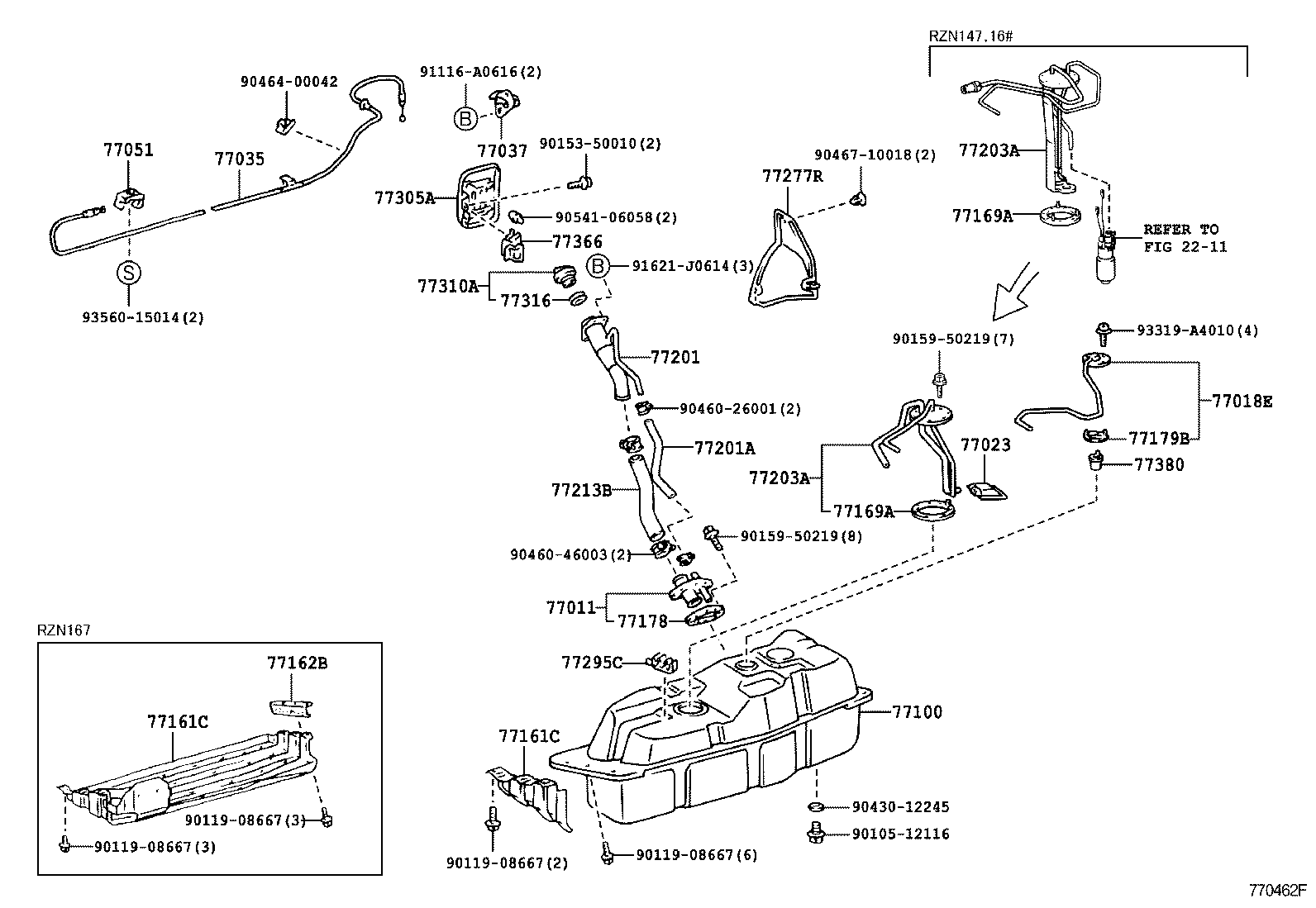

ILLUST NO. 1 OF 2(9708- )TW1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-35220 |
LN147,167,172,RZN147,152,169,174 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77011-35210 |
LN147,167,172 (J) |
1 | ||
| 77011-35220 |
LN147,167,172 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77011-35210 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77011-35220 |
LN147,167,172 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-35080 |
LN147,167,RZN147,169..TW1 |
1 | ||
| 77018-35090 |
LN147,167,RZN147,169..TW1 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77018-35080 |
LN147,167,RZN169..TW1 |
1 | ||
| 77018-35090 |
LN147,167,RZN169..TW1 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32040 |
LN147,167,172 |
1 | ||
| 77023-32040 |
LN147,16#,17# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-35100 |
LN147,16#,RZN147,16#..TW1 |
1 | ||
| 77035-35100 |
LN147,167..TW1 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-35010 |
LN147,167..TW1 |
1 | ||
| 77037-35010 |
LN147,16#,RZN147,16#..TW1 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-35010 |
LN147,16#,17#,RZN147,152,16#,174..DCB,XTR |
1 | ||
| 77051-35010 |
LN147,167,172..DCB,XTR |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3D914 |
LN147,167..TW1 |
1 | ||
| 77001-3D914 |
LN147,167..TW1 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-04020 |
LN167;LN147,RZN147..TW1 (L) |
1 | ||
| 77161-35180 |
LN167;LN147,RZN147..TW1 (J) |
1 | ||
| 77161-35180 |
LN167;LN147..TW1 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-04020 |
LN167;LN147,RZN147..TW1 (L) |
1 | ||
| 77161-35180 |
LN167;LN147,RZN147..TW1 (J) |
1 | ||
| 77161-35180 |
LN167;LN147..TW1 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77169-14010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77169-14010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77178-34010 |
LN147,167,172 (J) |
1 | ||
| 77178-34010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77179-26010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35610 |
LN147,167,RZN147,169..TW1 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201-35560 |
LN147,167,RZN147,169..TW1 |
1 | ||
| 77201-35610 |
LN147,167,RZN169..TW1 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201-35560 |
LN147,167,RZN169..TW1 |
1 | ||
| 77201-35610 |
LN147,167,RZN169..TW1 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95313-13026 |
LN147,167,RZN147,169..TW1 |
1 | ||
| 95313-13026 |
LN147,167,RZN169..TW1 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35640 |
LN147,167..TW1 |
1 | ||
| 77203-35640 |
LN147,167..TW1 |
1 | ||
| 77203-35650 |
LN147,167..TW1 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77203-35650 |
LN147,167..TW1 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35640 |
LN147,167..TW1 |
1 | ||
| 77203-35640 |
LN147,167..TW1 |
1 | ||
| 77203-35650 |
LN147,167..TW1 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77203-35650 |
LN147,167..TW1 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35320 |
LN147,167,RZN147,169..TW1 |
1 | ||
| 77213-35320 |
LN147,167,RZN169..TW1 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-35020 |
LN147,16#,RZN147,16#..TW1 |
1 | ||
| 77277-35020 |
LN147,167,RZN169..TW1 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35140 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77295-35140 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-35010 |
LN147,16#,RZN147,16#..TW1 |
1 | ||
| 77305-35010 |
LN147,167,RZN169..TW1 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12150 |
LN147,16#,17#..(T1,TW1)..CBU |
1 | ||
| 77310-35110 |
LN147,16#,17#..(T1,TW1)..CBU |
1 | ||
| 77310-12150 |
LN147,167,172..(T1,TW1)..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
LN147,167,172..(T1,TW1)..CBU |
1 | ||
| 77316-16010 |
LN147,167,172,RZN147,152,169,174..(T1,TW1)..CBU |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35050 |
LN147,16#,RZN147,16#..TW1 |
1 | ||
| 77360-35050 |
LN147,167,RZN169..TW1 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 77380-26010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| Common parts | ||||
| 90105-12116 | ||||
| 90119-08667 | ||||
| 90153-50010 | ||||
| 90159-50219 | ||||
| 90430-12245 | ||||
| 90460-26001 | ||||
| 90460-46003 | ||||
| 90464-00042 | ||||
| 90467-10018 | ||||
| 90541-06058 | ||||
| 91116-A0616 | ||||
| 91621-J0614 | ||||
| 93319-A4010 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 2211 | ||||
