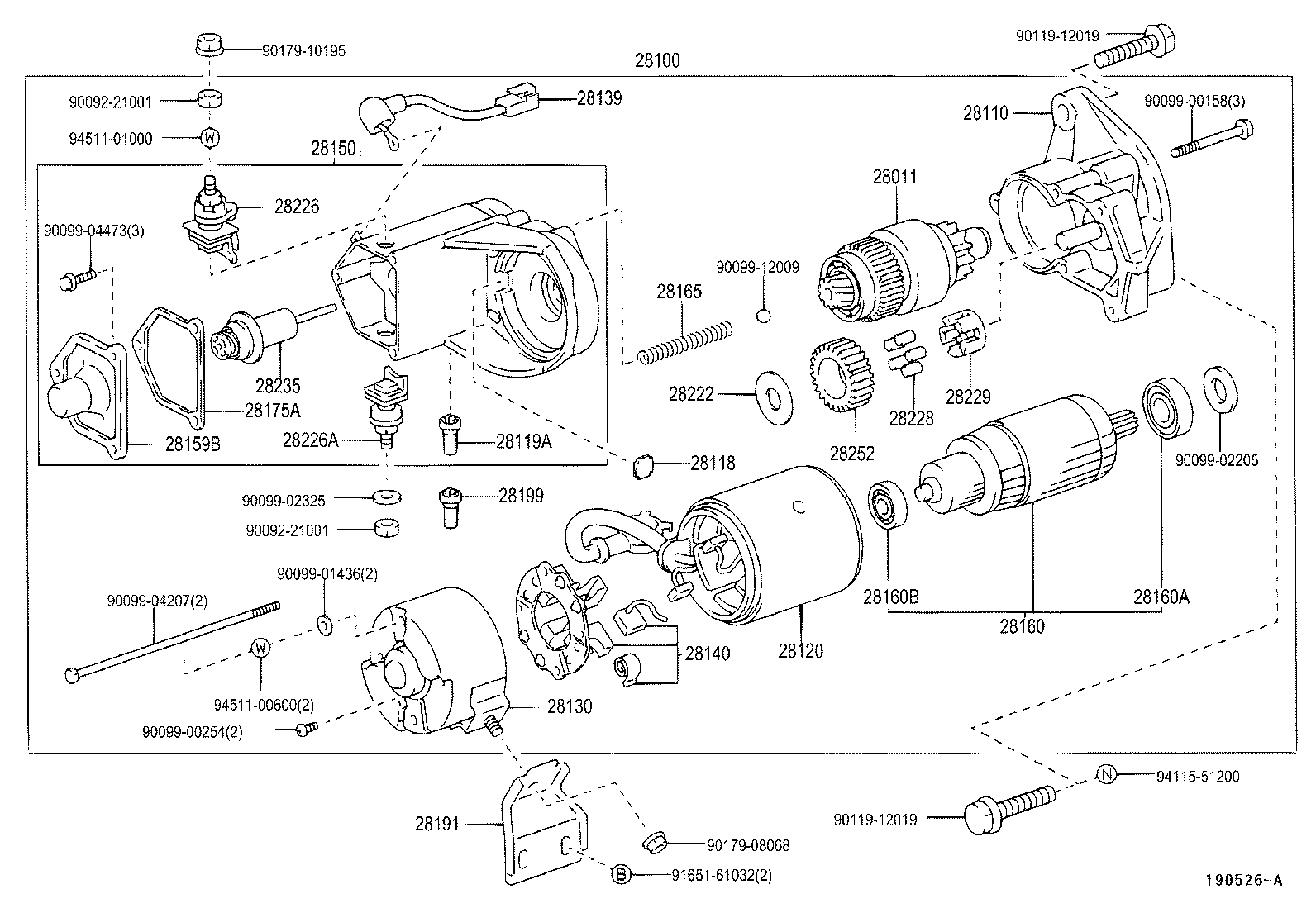

LN147-PRMDS (1997)
Toyota Hilux
(9708-0108)2LTE,5L
12V 2.7KW,ｶﾝﾚｲﾁ ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28011-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28011-54010 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28011-54480 |
5L..LN147,167,172 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28100-54480 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28115-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-54190 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28120-56081 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28120-56081 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28120-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54430 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54171 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28139-54251 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28140-77090 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28140-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28140-77090 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28150-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28150-54480 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28150-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28159-10040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160-54140 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28160-54140 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28160-64041 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 90099-10107 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 90099-10107 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28253-54070 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10119 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 90099-10119 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 90099-10143 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 90099-10143 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28165-26040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-56310 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28175-10040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54010 |
2LTE,5L..LN147,17# |
1 | ||
| 28191-54010 |
5L..LN147,172 |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
5L..LN147,167,172 |
2 | ||
| 28199-46080 |
5L..LN147,167,172 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-76100 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28226-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28226-72010 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
5 | ||
| 28228-26040 |
5L..LN147,167,172 12V 2.2KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28229-26040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28235-35080 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28254-77090 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-00254 | ||||
| 90099-01436 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04207 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08068 | ||||
| 90179-10195 | ||||
| 91651-61032 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||

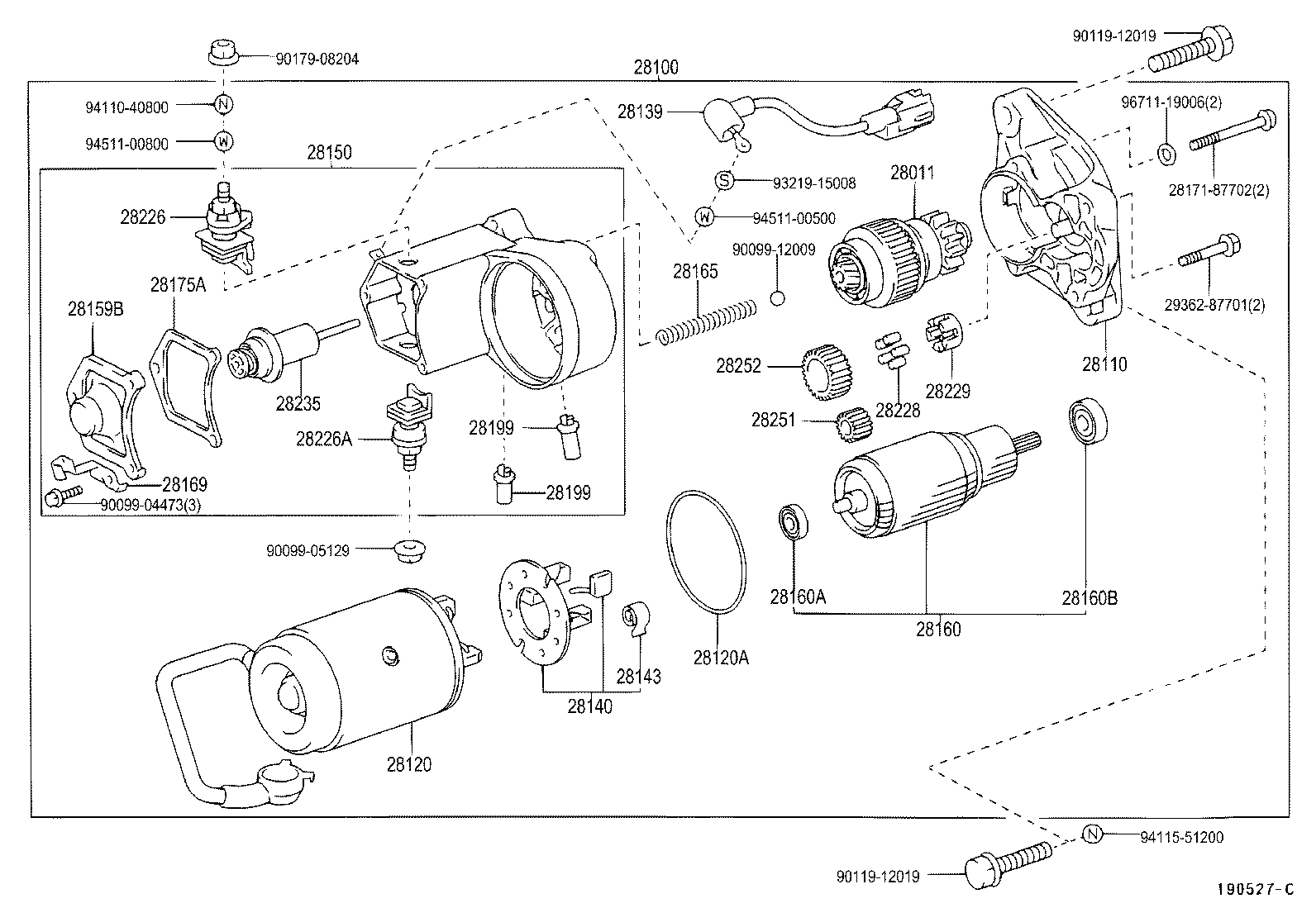

(9708-0108)5L
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28011-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28011-54010 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28011-54480 |
5L..LN147,167,172 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28100-54480 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28115-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28120-56081 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28120-56081 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28120-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-64040 |
5L..LN147,167,172 |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54171 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28139-54251 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28140-77090 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28140-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28140-77090 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
5L..LN147,167,172 12V 2.2KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28150-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28150-54480 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28150-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28159-10040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160-54140 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28160-54140 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28160-64041 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 90099-10107 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 90099-10107 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28253-54070 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10119 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 90099-10119 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 90099-10143 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 90099-10143 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28165-26040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-56310 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28175-10040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
5L..LN147,167,172 |
2 | ||
| 28199-46080 |
5L..LN147,167,172 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
5L..LN147,167,172 |
2 | ||
| 28199-46080 |
5L..LN147,167,172 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-76100 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28226-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28226-72010 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
5 | ||
| 28228-26040 |
5L..LN147,167,172 12V 2.2KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28229-26040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28235-35080 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28254-77090 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08204 | ||||
| 93219-15008 | ||||
| 94110-40800 | ||||
| 94115-51200 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
(0108- )5L
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28011-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28011-54010 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28011-54480 |
5L..LN147,167,172 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28100-54480 |
5L..LN147,167,172 12V 2.7KW |
1 | ||

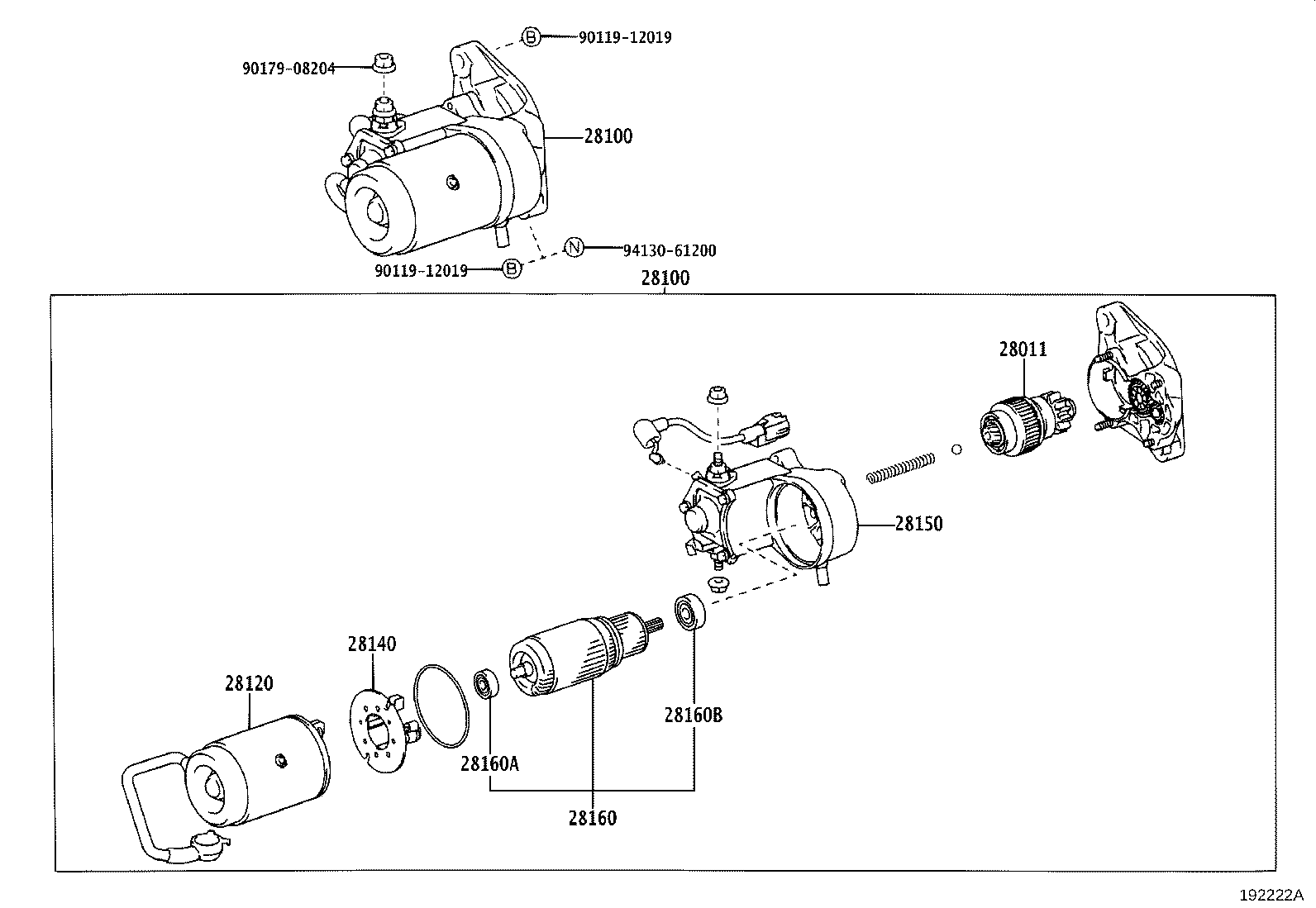

| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28100-54480 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28120-56081 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28120-56081 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28120-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28140-77090 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28140-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28140-77090 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28150-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28150-54480 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28150-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160-54140 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28160-54140 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28160-64041 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 90099-10107 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 90099-10107 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28253-54070 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10119 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 90099-10119 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 90099-10143 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 90099-10143 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| Common parts | ||||
| 90119-12019 | ||||
| 90179-08204 | ||||
| 94130-61200 | ||||

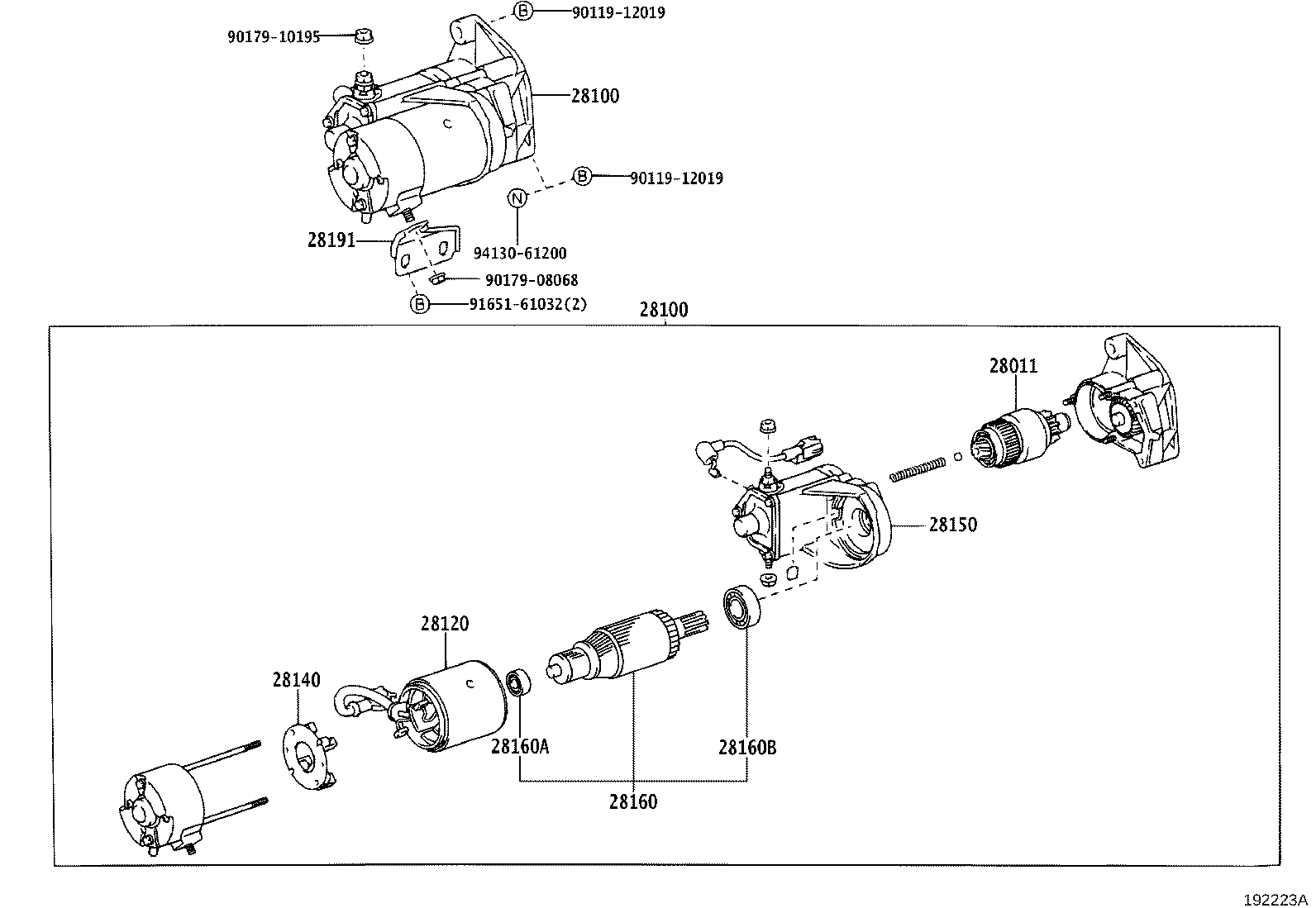

(0108- )5L
12V 2.7KW,ｶﾝﾚｲﾁ ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28011-54260 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28011-54010 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28011-54480 |
5L..LN147,167,172 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28100-54480 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28100-54480 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28100-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28120-56081 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28120-56081 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28120-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28140-77090 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28140-64040 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28140-77090 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54320 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28150-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28150-54480 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28150-54270 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160-54140 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28160-54140 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 28160-64041 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 90099-10107 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 90099-10107 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 28253-54070 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10119 |
5L..LN147,167,172 12V 2.7KW |
1 | ||
| 90099-10119 |
2LTE,5L..LN147,16#,17# 12V 2.7KW |
1 | ||
| 90099-10143 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 90099-10143 |
5L..LN147,167,172 12V 2.2KW |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54010 |
2LTE,5L..LN147,17# |
1 | ||
| 28191-54010 |
5L..LN147,172 |
1 | ||
| Common parts | ||||
| 90119-12019 | ||||
| 90179-08068 | ||||
| 90179-10195 | ||||
| 91651-61032 | ||||
| 94130-61200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
