LN131V-RKMSS (1989)

Toyota Hilux

Production Apr 1989 - Aug 1993
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

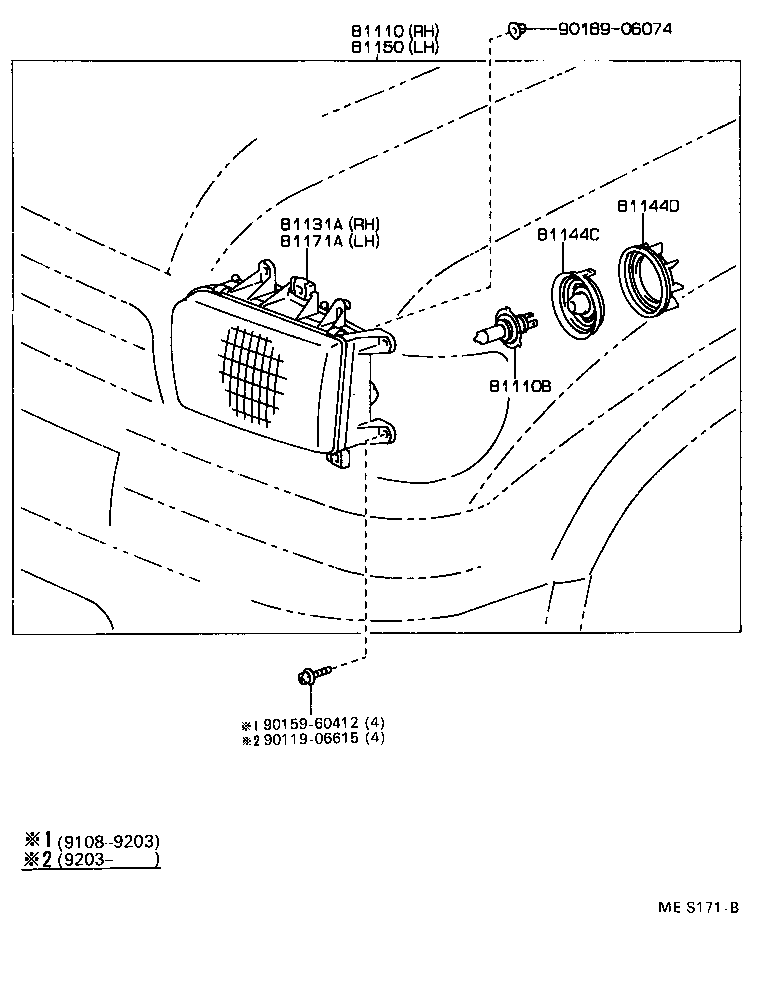

(9108- )KZN130,LN13#,VZN130

Click highlighted areas on diagram

diagram 81110 81110B 81131A 81144C 81144D 81150 81171A 9011906615 9015960412 9018906074
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-89157

LN13#,VZN130,YN130

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LN10#,13#,8#,VZN130,YN10#,130,8#

12V 60/55W,*HAL *WH

 2
81150 - HEADLAMP ASSY, LH
81150-89157

LN13#,VZN130,YN130

 1
Common parts
90119-06615
90159-60412
90189-06074

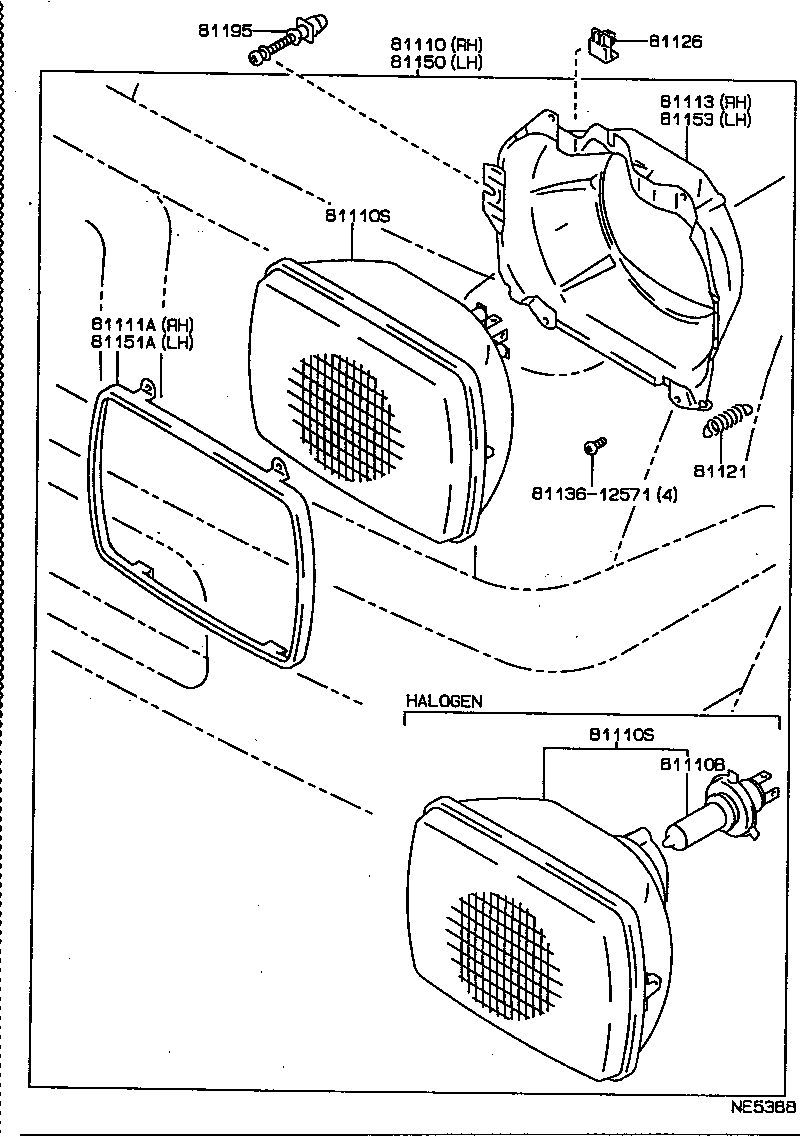

(8809-9108) ; (9108- )LN10#,112,8#,YN10#,8#

Click highlighted areas on diagram

diagram 81110 81110B 81110S 81110S 81111A 81113 81121 81126 8113612571 81150 81151A 81153 81195
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-89157

LN13#,VZN130,YN130

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LN10#,13#,8#,VZN130,YN10#,130,8#

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04010

LN13#,VZN130,YN130

12V 60/55W,*HWS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04010

LN13#,VZN130,YN130

12V 60/55W,*HWS

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-89149

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
81121 - SPRING, HEADLAMP TENSION
81121-14670

LN10#,13#,8#,VZN130,YN10#,130,8#

 2
81126 - PLATE, HEADLAMP
81124-89101

LN10#,13#,8#,VZN130,YN10#,130,8#

 8
81150 - HEADLAMP ASSY, LH
81150-89157

LN13#,VZN130,YN130

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89149

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
81195 - SCREW, HEADLAMP
81195-89101

LN10#,13#,8#,YN10#,130,8#

 4
81195-89102

LN10#,13#,8#,VZN130,YN10#,130,8#

 4
Common parts
81136-12571
