LN131V-RKMSS (1989)

Toyota Hilux

Production Apr 1989 - Aug 1993
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )KZN130,LN13#,VZN130,YN130

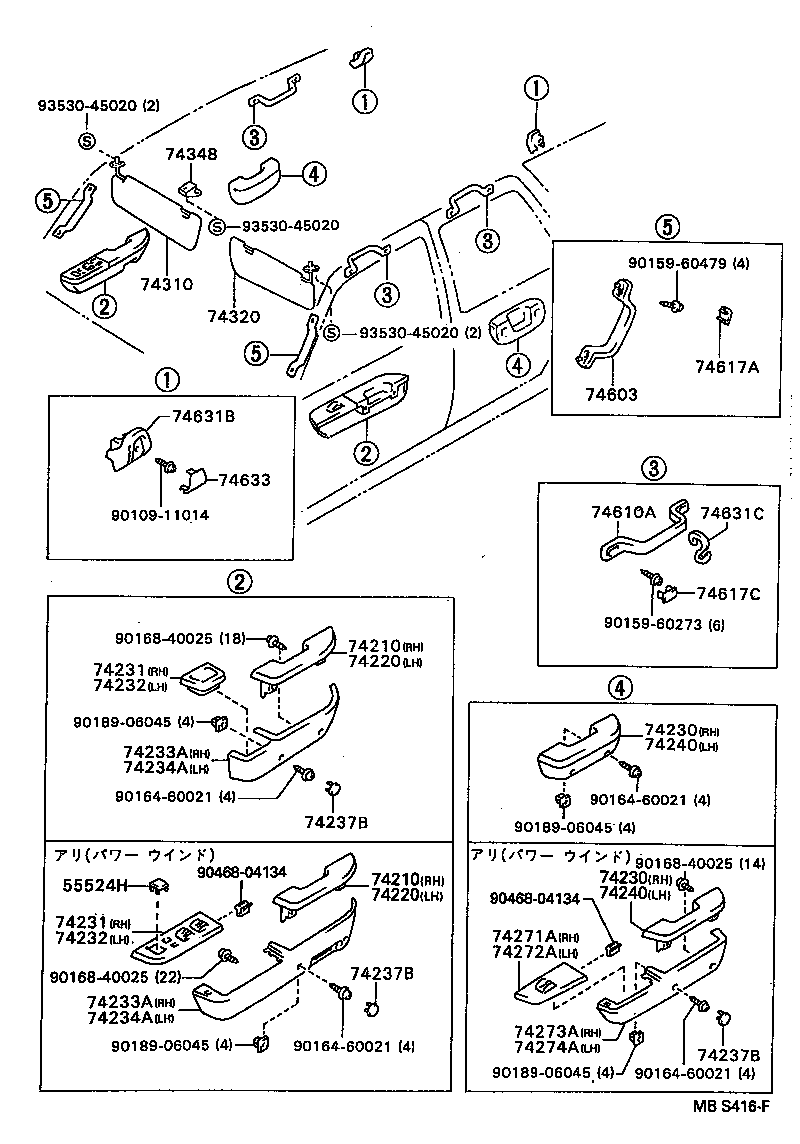

Click highlighted areas on diagram

diagram 55524H 74210 74210 74220 74220 74230 74230 74231 74231 74232 74232 74233A 74233A 74234A 74234A 74237B 74237B 74237B 74240 74240 74271A 74272A 74273A 74274A 74310 74320 74348 74603 74610A 74617A 74617C 74631B 74631C 74633 9010911014 9015960273 9015960479 9016460021 9016460021 9016460021 9016460021 9016840025 9016840025 9016840025 9018906045 9018906045 9018906045 9018906045 9046804134 9046804134 9353045020 9353045020 9353045020
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-8910704

LN107,YN130..SSR;LN13#,VZN130..4D;LN130,VZN130..2D..SSR

BLUE,TRIM8#

 1
74210 - ARMREST ASSY, FRONT, RH
74210-8910704

LN107,YN130..SSR;LN13#,VZN130..4D;LN130,VZN130..2D..SSR

BLUE,TRIM8#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-8910304

LN107,YN130..SSR;LN13#,VZN130..4D;LN130,VZN130..2D..SSR

BLUE,TRIM8#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-8910304

LN107,YN130..SSR;LN13#,VZN130..4D;LN130,VZN130..2D..SSR

BLUE,TRIM8#

 1
74310 - VISOR ASSY, RH
74310-8913404

LN85,YN8#..SDX;LN10#,13#,VZN130,YN10#,130

BLUE,TRIM8#

 1
74310-8913403

LN85,YN8#..SDX;LN10#,13#,VZN130,YN10#,130

GRAY,TRIM1#

 1
74310-89134J1

LN10#,13#,VZN130,YN10#..4D,T1,TW1;LN130,85,YN8#..(2D,T1)..(SDX,SSR)

BLUE,TRIM8#

 1
74320 - VISOR ASSY, LH
74320-8912403

LN10#,131,8#,YN10#,8#..DLX,SDX,SR

GRAY,TRIM1#

 1
74320-89126J1

LN100,107,131,YN10#..SR

ｱﾘ(ﾊﾞﾆﾃｲ ﾐﾗ-),BLUE,TRIM8#

 1
74320-8912604

LN106..TW1;LN100,131,YN10#

ｱﾘ(ﾊﾞﾆﾃｲ ﾐﾗ-),BLUE,TRIM8#

 1
74320-8912603

LN106..TW1;LN100,107,131,YN10#..SR

ｱﾘ(ﾊﾞﾆﾃｲ ﾐﾗ-),GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-89102J0

LN130..2D..SSR;LN13#,VZN130..4D

BLUE,TRIM8#

 2
74348-8910204

LN13#,VZN130,YN130

BLUE,TRIM8#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-35010J0

LN130..2D..SSR;LN10#,13#,VZN130,YN10#..4D,T1,TW1

BLUE,TRIM8#

 2
74610-35010B0

LN10#,13#,VZN130,YN10#

GRAY,TRIM1#

 2
74610-35011J0

LN130..2D..SSR;LN10#,13#,VZN130,YN10#..4D,T1,TW1

BLUE,TRIM8#

 2
74610-35011B0

KZN130,LN10#,112,13#,VZN130,YN10#

GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74603-89101J2

LN131;LN130..2D..SSR;LN107,130,VZN130..(4D,TW1)..(SSR,SSRX)

MEDIUM BLUE,TRIM8#

 3
74610-1601014

LN106,131,85,YN105,85..4D,TW1

BLUE,TRIM8#

 3
74610-1601013

LN106,131,85,YN105,85..4D,TW1

GRAY,TRIM1#

 3
74617A - PLUG, ASSIST GRIP
74617-16010J3

LN130..2D..SSR;LN10#,13#,VZN130,YN10#..4D,T1,TW1

BLUE,TRIM8#

 4
74617C - PLUG, ASSIST GRIP
74617-16010J1

LN106,13#,85,VZN130,YN105,130,85..2D,4D,TW1

LIGHT BLUE,TRIM8#

 6
74617-16010J3

LN130..2D..SSR;LN107,13#,85,VZN130,YN107,85..4D,TW1

BLUE,TRIM8#

 6
74631B - HOOK, COAT
74631-8910203

LN13#,VZN130,YN130

GRAY,TRIM1#

 2
74631-8910204

LN13#,VZN130,YN130

BLUE,TRIM8#

 2
74633 - CAP, COAT HOOK
74633-8910103

LN13#,VZN130,YN130

GRAY,TRIM1#

 2
74633-8910104

LN13#,VZN130,YN130

BLUE,TRIM8#

 2
Common parts
90109-11014
90159-60273
90159-60479
90164-60021
90168-40025
90189-06045
90468-04134
93530-45020
