LN131V-RKMSS (1989)
Toyota Hilux

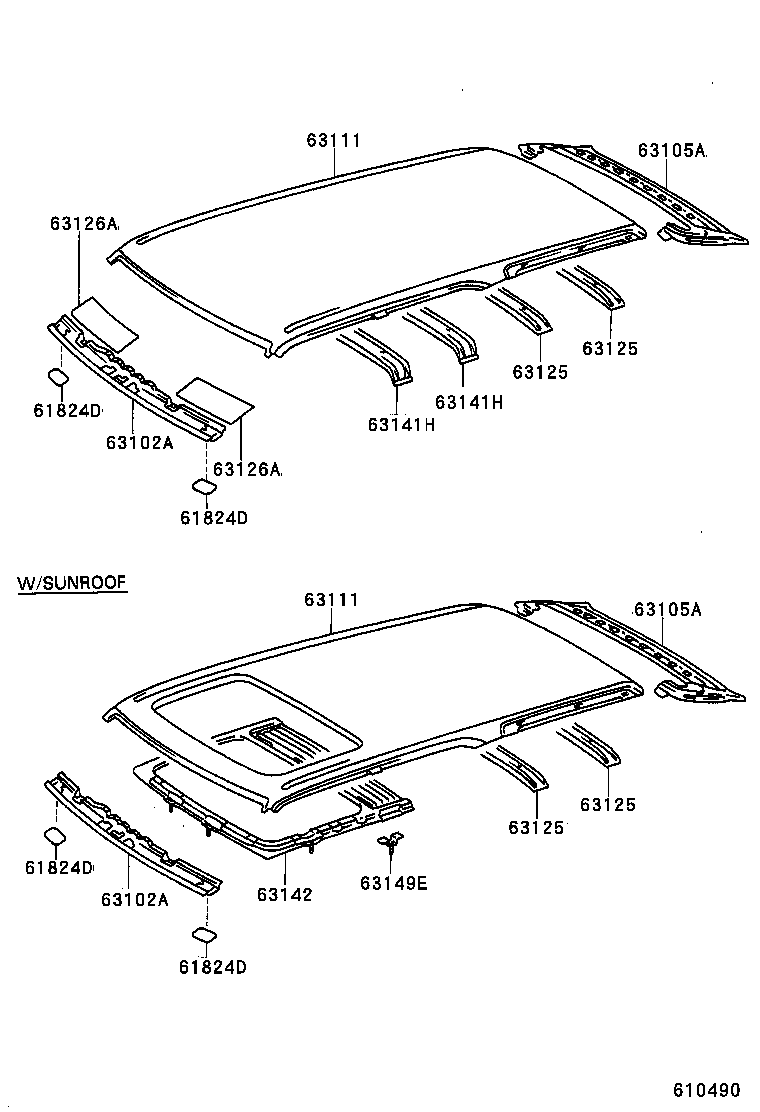

ILLUST NO. 1 OF 2(8904- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-89106 |
LN13#,VZN130,YN130 |
2 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-89106 |
LN13#,VZN130,YN130 |
2 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-89106 |
LN13#,VZN130,YN130 |
2 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-89106 |
LN13#,VZN130,YN130 |
2 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-35010 |
LN13#,VZN130,YN130 |
1 | ||
| 63105-89111 |
LN13#,VZN130,YN130 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-35010 |
LN13#,VZN130,YN130 |
1 | ||
| 63105-89111 |
LN13#,VZN130,YN130 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-89124 |
LN131 ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63111-89126 |
LN131 ｱﾘ(ｻﾝ ﾙ-ﾌ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 63111-89123 |
LN131 |
1 | ||
| 63111-89125 |
LN131 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-89124 |
LN131 ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63111-89126 |
LN131 ｱﾘ(ｻﾝ ﾙ-ﾌ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 63111-89123 |
LN131 |
1 | ||
| 63111-89125 |
LN131 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-89102 |
LN13#,VZN130,YN130..SR,SSR |
1 | ||
| 63149E - BRACKET, ROOF PANEL REINFORCEMENT, NO.2 | ||||
| 63149-89103 |
LN13#,VZN130,YN130..SR,SSR |
2 | ||
ILLUST NO. 2 OF 2(8904- )KZN130,LN13#,VZN130,YN130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-89101 |
LN13#,YN130 |
1 | ||
| 63205-35010 |
LN13#,VZN130,YN130 |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-89106 |
LN13#,VZN130,YN130 |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-35010 |
LN13#,VZN130,YN130 |
1 | ||
| 63207-89101 |
LN13#,YN130 |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-35010 |
LN13#,VZN130,YN130 |
1 | ||
| 63208-89102 |
LN13#,YN130 |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-89104 |
LN13#,VZN130,YN130 *H,L=1470,FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-89104 |
LN13#,VZN130,YN130 *H,L=1470,FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-89104 |
LN13#,VZN130,YN130 *H,L=1470,FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-89104 |
LN13#,VZN130,YN130 *H,L=1470,FRONT |
2 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-89101 |
LN13#,YN130 |
1 | ||
| 63223-35010 |
LN13#,VZN130,YN130 |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-35010 |
LN13#,VZN130,YN130 |
1 | ||
| 63224-89101 |
LN13#,YN130 |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-89101 |
LN13#,VZN130,YN130 |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-89101 |
LN13#,VZN130,YN130 |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-32010 |
LN13#,YN130 |
2 | ||
| Common parts | ||||
| 90119-06200 | ||||
| 90119-06390 | ||||
| 90159-40193 | ||||
| 90162-50007 | ||||
| 90168-40027 | ||||
| 90179-06069 | ||||
| 90179-06070 | ||||
| 90189-05058 | ||||
| 90467-14001 | ||||
| 90468-05017 | ||||
| 91656-40622 | ||||
| 96160-00400 | ||||
