LN131V-RKMSS (1989)

Toyota Hilux

Production Apr 1989 - Aug 1993
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

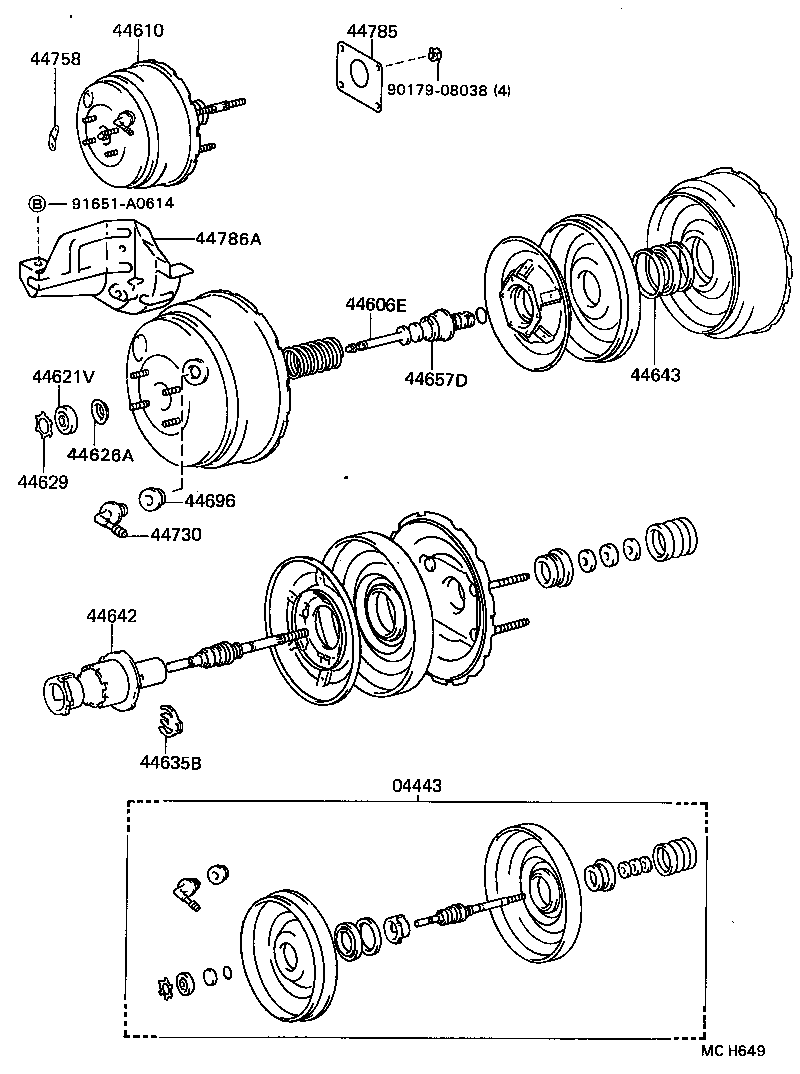

ILLUST NO. 1 OF 2(8904-9108)LN13#,VZN130,YN130

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44626A 44629 44635B 44642 44643 44657D 44696 44730 44758 44785 44786A 9017908038 91651A0614
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-35910

LN13#

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800

LN13#,VZN130,YN130

 1
44610 - BOOSTER ASSY, BRAKE
44610-3D380

LN13#

 1
44610-3D520

LN13#

 1
44621V - SEAL, BOOSTER BODY
44621-14030

LN13#,VZN130,YN130

 1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010

LN13#,VZN130,YN130

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

LN13#,VZN130,YN130

 1
44635B - KEY, VALVE STOPPER
44635-20800

LN13#,VZN130,YN130

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

LN13#,VZN130,YN130

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

LN13#,VZN130,YN130

 1
44657D - CASE, REACTION DISC
44657-20800

LN13#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

KZN130,LN10#,112,13#,8#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN10#,13#,8#,VZN130,YN107,130

 1
Common parts
90179-08038
91651-A0614

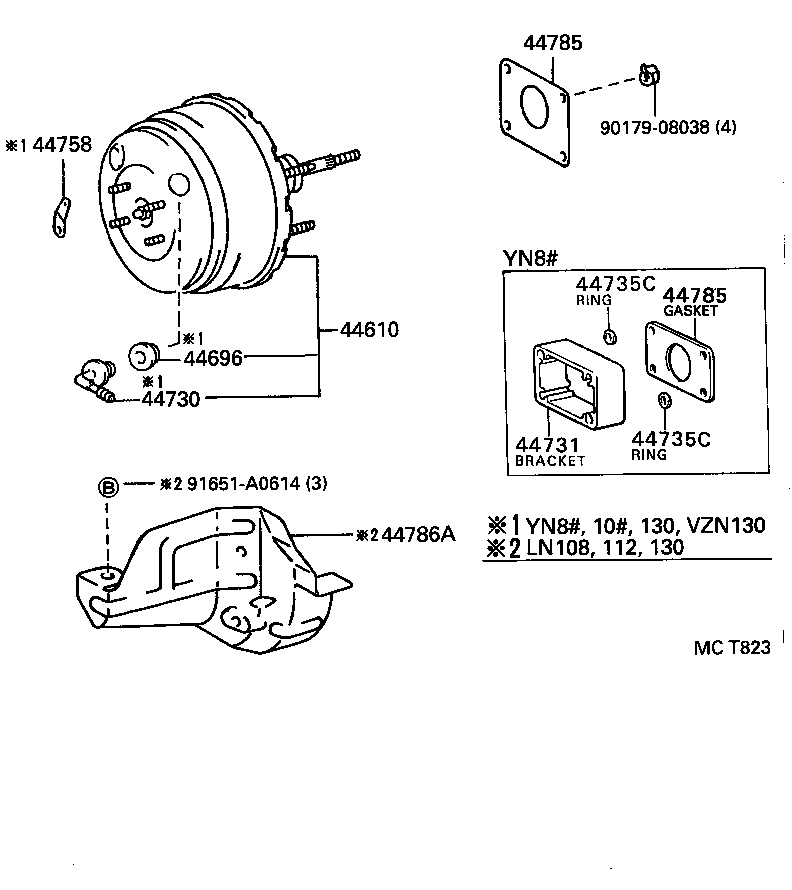

ILLUST NO. 1 OF 2(9108- )LN10#,112,13#,8#,VZN130,YN10#,8#

Click highlighted areas on diagram

diagram 44610 44696 44730 44731 44735C 44735C 44758 44785 44785 44786A 9017908038 91651A0614
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-3D380

LN13#

 1
44610-3D520

LN13#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

KZN130,LN10#,112,13#,8#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN10#,13#,8#,VZN130,YN107,130

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN10#,13#,8#,VZN130,YN107,130

 1
Common parts
90179-08038
91651-A0614
