LN131V-RKMSS (1989)

Toyota Hilux

Production Apr 1989 - Aug 1993
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904-9308)2LT#,3L..LN13#

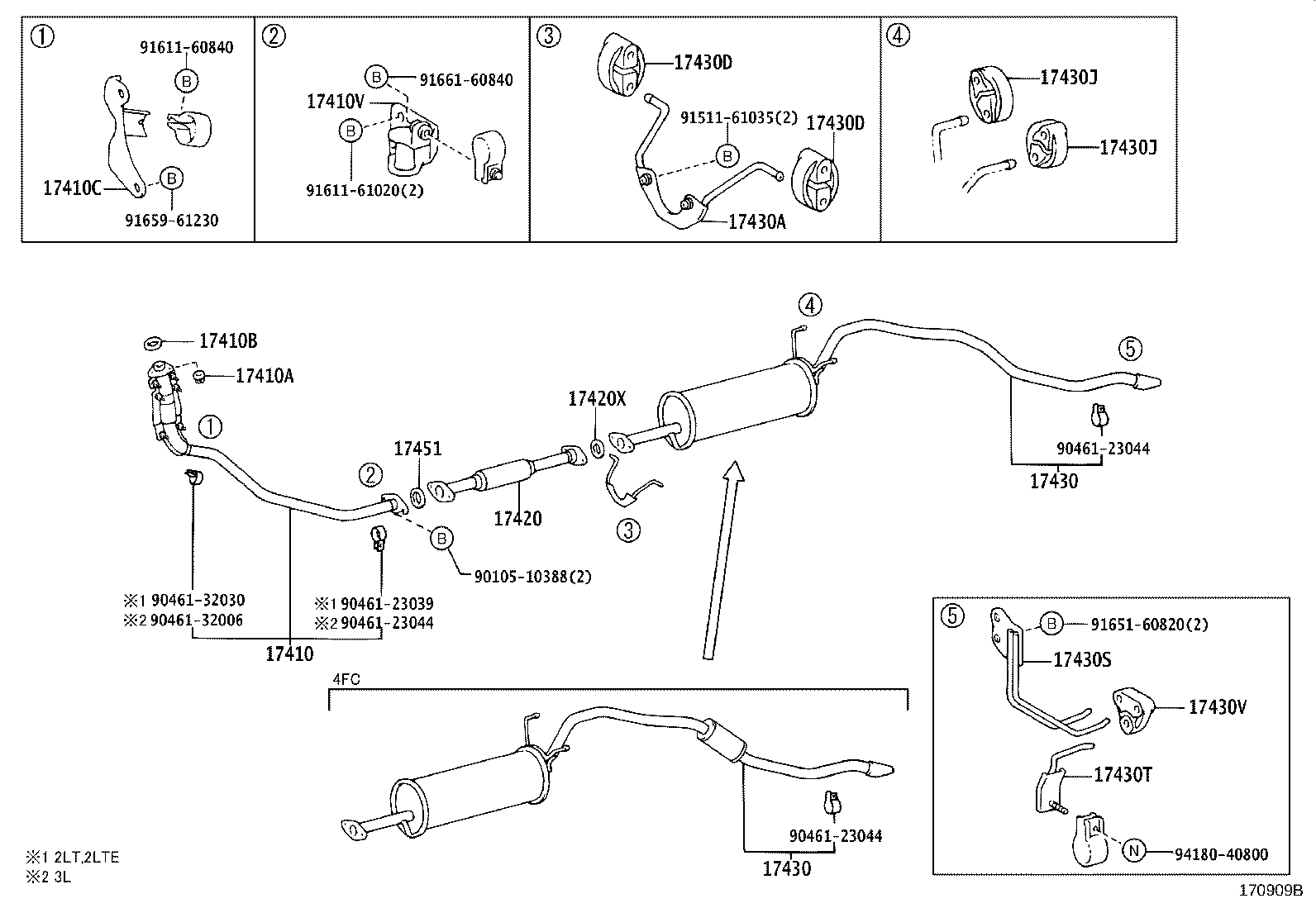

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410V 17420 17420X 17430 17430 17430A 17430D 17430D 17430J 17430J 17430S 17430T 17430V 17451 9010510388 9046123039 9046123044 9046123044 9046123044 9046132006 9046132030 9151161035 9161160840 9161161020 9165160820 9165961230 9166160840 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35632

3L..LN131

 1
17410-35631

3L..LN131

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 3
17410B - GASKET, EXHAUST PIPE
90917-06041

2LT#,3L,3VZE..LN10#,13#,VZN130

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-54360

3L..LN10#,131

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-35020

2LT#,3L..LN13#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06047

2LT#,3L..LN13#

 1
90917-06045

2LTE,3L..LN13#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-3D270

3L..LN131

 1
17430-3D090

3L..LN131

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-3D270

3L..LN131

 1
17430-3D090

3L..LN131

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17564-35150

2LT#,3L,3YE..LN13#,YN130

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1KZTE,2LT#,2L,3L,3VZE,2Y,3Y#..KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1KZTE,2LT#,2L,3L,3VZE,2Y,3Y#..KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-35060

2LT#,3L,3YE..LN13#,YN130

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-71010

2LT#,2L,3L,2Y,3Y#..LN10#,112,13#,8#,YN10#,130,8#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35030

2LT#,3L,3VZE,3Y#..LN10#,112,13#,VZN130,YN10#,130

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

2L#,3L,2Y..LN10#,13#,8#,YN8#

 1
90917-06047

2LT#,2L,3L,2Y..LN10#,13#,8#,YN8#

 1
90917-06045

2L#,3L,2Y,3Y..LN10#,13#,8#,YN10#,8#

 1
Common parts
90105-10388
90461-23039
90461-23044
90461-32006
90461-32030
91511-61035
91611-60840
91611-61020
91651-60820
91659-61230
91661-60840
94180-40800
