LN130W-GJMQT (1991)

Toyota Hilux

Production Aug 1991 - Aug 1993
Engine 2LTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )LN130,VZN130..SSRX ; (9308- )KZN130

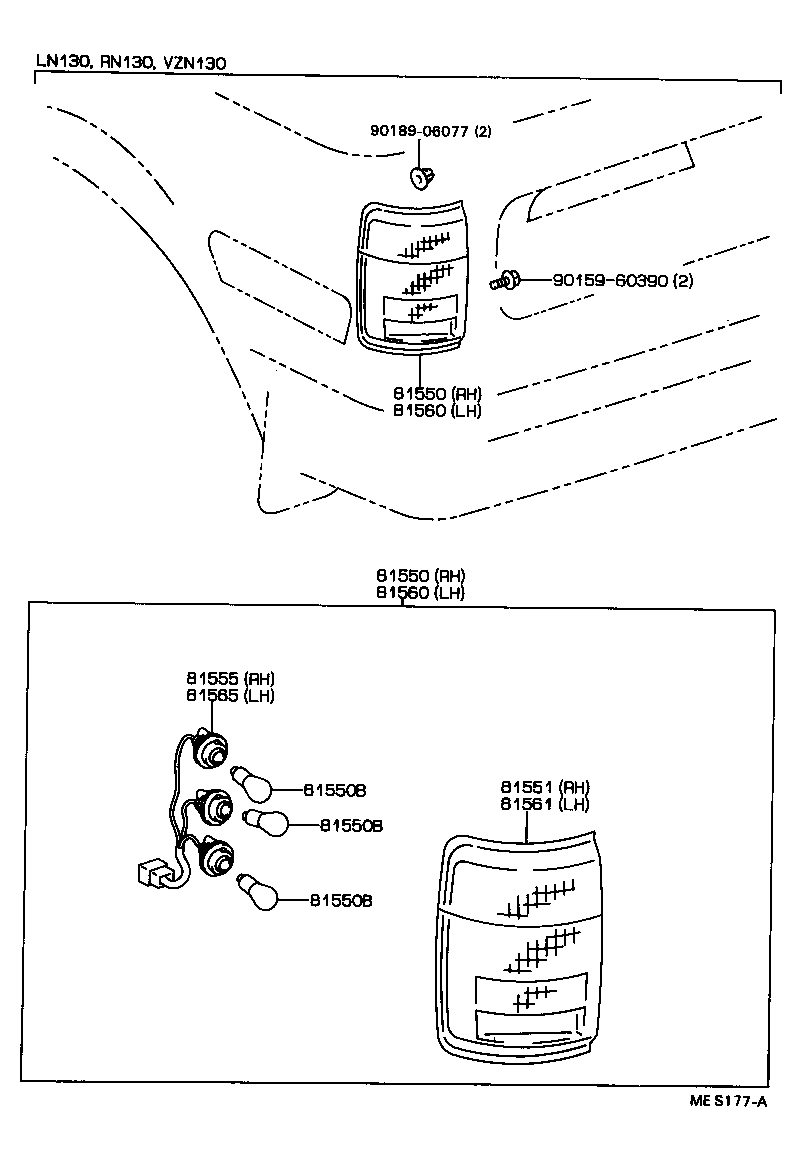

Click highlighted areas on diagram

TYPE 2,ｱﾘ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ ｽﾍﾟｱﾀｲﾔｷﾔﾘｱ)

diagram 81550 81550 81550B 81550B 81550B 81551 81555 81560 81560 81561 81565 9015960390 9018906077
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

12V 21/5W

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-89167

LN13#,VZN130

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-89167

LN13#,VZN130

 1
Common parts
90159-60390
90189-06077
