LN130G-GKPGT (1990)

Toyota Hilux

Production Aug 1990 - Aug 1993
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

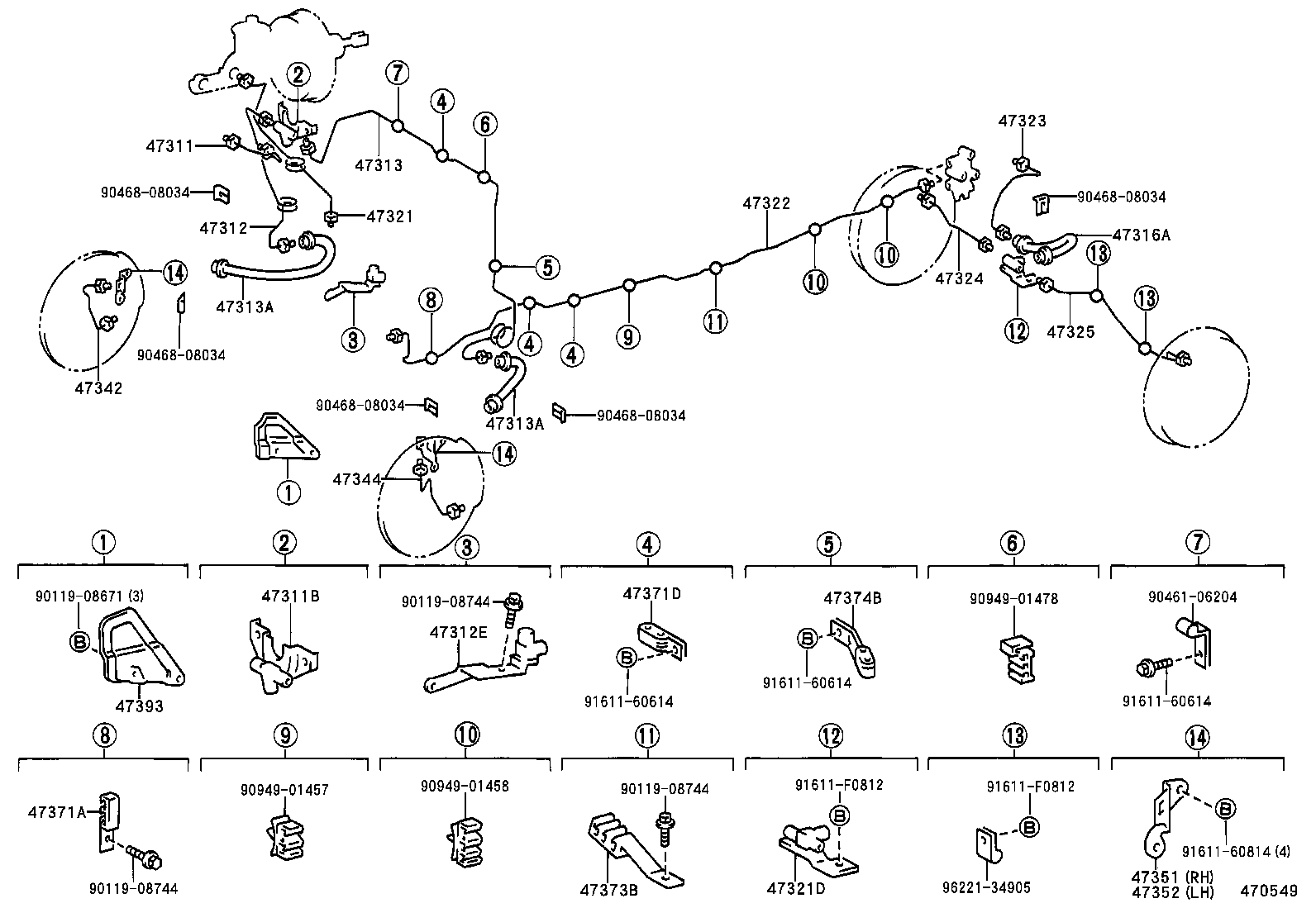

ILLUST NO. 1 OF 2(8809-9108)LN10#,YN10#,130

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47316A 47321 47321D 47322 47323 47324 47325 47342 47344 47351 47352 47371A 47371D 47373B 47374B 47393 9011908671 9011908744 9011908744 9011908744 9046106204 9046808034 9046808034 9046808034 9046808034 9046808034 9094901457 9094901458 9094901478 9161160614 9161160614 9161160614 9161160814 91611F0812 91611F0812 9622134905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35450

LN10#,13#,8#,VZN130

 1
47311-35460

YN10#,130,8#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10226

YN10#,130,8#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D190

LN108,112,13#,VZN130

 1
47312-3D240

LN13#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10233

LN107,13#,VZN130,YN107

 1
90413-10233

KZN130,LN107,108,109,112,130,VZN130,YN107

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35800

LN13#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35660

LN108,112,13#,VZN130

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35080

LN107,13#,VZN130

 2
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-35020

LN10#,112,13#,8#,YN10#,130,8#

ﾌﾛﾝﾄ

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35080

LN107,108,109,112,130

 1
Common parts
90119-08671
90119-08744
90461-06204
90468-08034
90949-01457
90949-01458
90949-01478
91611-60614
91611-60814
91611-F0812
96221-34905
