LN130G-GKMGX (1989)

Toyota Hilux

Production Apr 1989 - Aug 1990
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904-9008)2LT ; (8904-9308)3L..LN131

Click highlighted areas on diagram

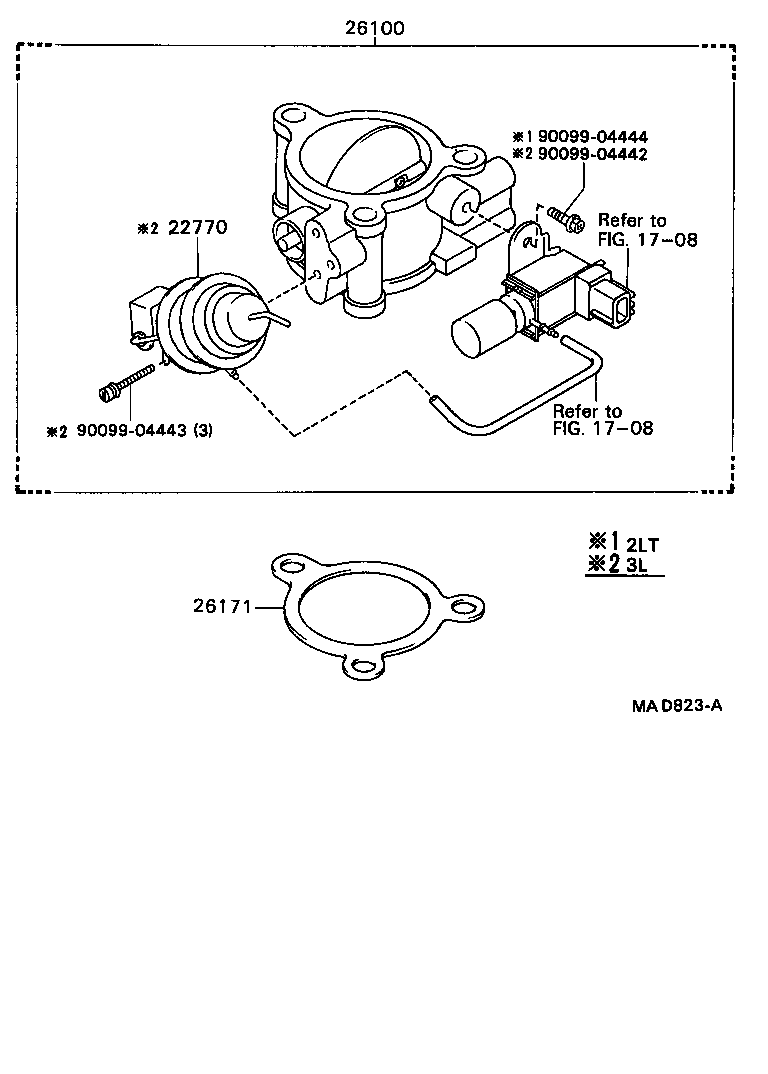

diagram 1708 1708 22770 26100 26171 9009904442 9009904443 9009904444
Part # Description Qty Price
26100 - VENTURI ASSY
26100-54140

2LT..LN130

 1
26171 - GASKET, VENTURI
17116-54021

2LT#,3L..LN108,112,13#

 1
Common parts
90099-04442
90099-04443
90099-04444
Linked diagrams
1708
