LN130G-GKMGT (1990)

Toyota Hilux

Production Aug 1990 - Aug 1993
Engine 2LTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809-9408)2L

Click highlighted areas on diagram

diagram 15104 15104C 15104E 15115 15121 15122 15131 15132 15133 9015160013 9017908150 9043018002 9161160814
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-54170

2LTE..LN108,112,130

 1
15104-54130

2LT,3L..LN100,106,107,109,13#

 1
15104C - GASKET(FOR OIL STRAINER)
15149-54012

2LT#,2L,3L..LN10#,112,13#,8#

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
92122-40816

2LT#,2L,3L..LN10#,112,13#,8#

 2
15115 - COVER, OIL PUMP
15115-54020

2L#,3L..LN10#,13#,8#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-54020

2LT#,2L,3L..LN10#,112,13#,8#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-54020

2LT#,2L,3L..LN10#,112,13#,8#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-54010

2LT#,2L,3L..LN10#,112,13#,8#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-54010

2LT#,2L,3L..LN10#,112,13#,8#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-54010

2LT#,2L,3L..LN10#,112,13#,8#

 1
Common parts
90151-60013
90179-08150
90430-18002
91611-60814

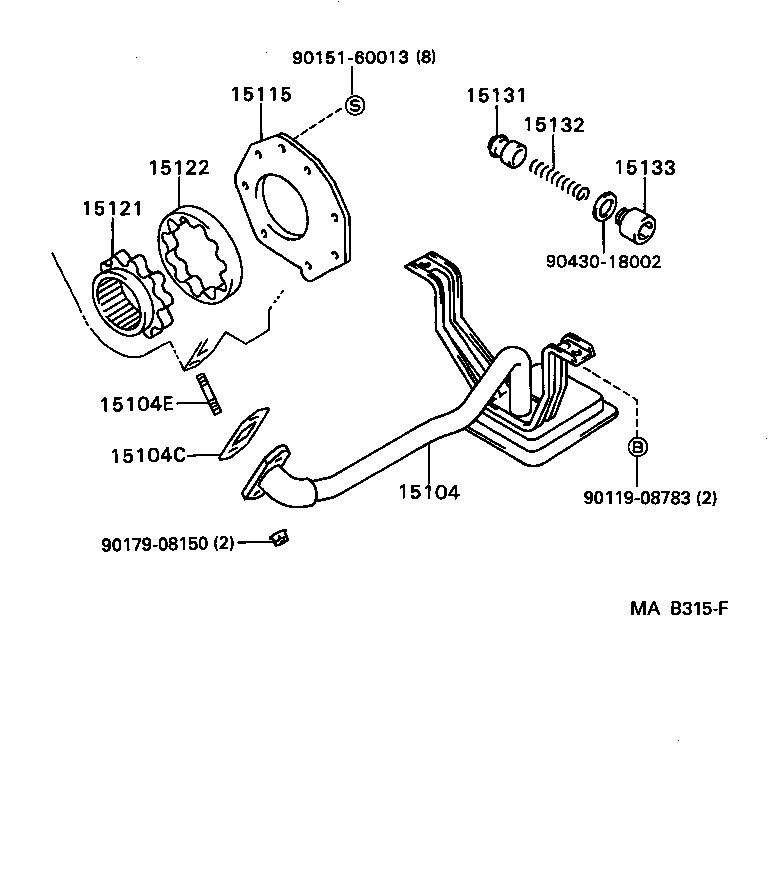

(8809-9308)2LT ; (8809- )3L

Click highlighted areas on diagram

diagram 15104 15104C 15104E 15115 15121 15122 15131 15132 15133 9011908783 9015160013 9017908150 9043018002
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-54170

2LTE..LN108,112,130

 1
15104-54130

2LT,3L..LN100,106,107,109,13#

 1
15104C - GASKET(FOR OIL STRAINER)
15149-54012

2LT#,2L,3L..LN10#,112,13#,8#

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
92122-40816

2LT#,2L,3L..LN10#,112,13#,8#

 2
15115 - COVER, OIL PUMP
15115-54020

2L#,3L..LN10#,13#,8#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-54020

2LT#,2L,3L..LN10#,112,13#,8#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-54020

2LT#,2L,3L..LN10#,112,13#,8#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-54010

2LT#,2L,3L..LN10#,112,13#,8#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-54010

2LT#,2L,3L..LN10#,112,13#,8#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-54010

2LT#,2L,3L..LN10#,112,13#,8#

 1
Common parts
90119-08783
90151-60013
90179-08150
90430-18002

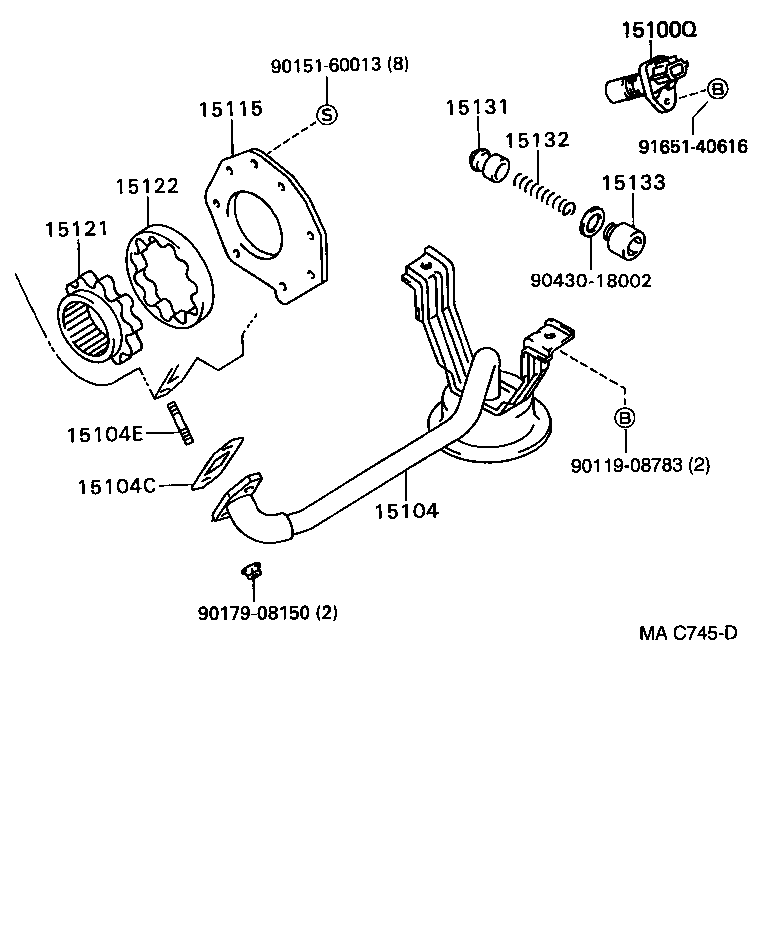

(9008-9308)2LTE ; (9508- )2LTE

Click highlighted areas on diagram

diagram 15100Q 15104 15104C 15104E 15115 15121 15122 15131 15132 15133 9011908783 9015160013 9017908150 9043018002 9165140616
Part # Description Qty Price
15100Q - SENSOR, CRANK POSITION
90919-05005

2LTE..LN108,112,130

 1
15104 - STRAINER SUB-ASSY, OIL
15104-54170

2LTE..LN108,112,130

 1
15104-54130

2LT,3L..LN100,106,107,109,13#

 1
15104C - GASKET(FOR OIL STRAINER)
15149-54012

2LT#,2L,3L..LN10#,112,13#,8#

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
92122-40816

2LT#,2L,3L..LN10#,112,13#,8#

 2
15115 - COVER, OIL PUMP
15115-54020

2L#,3L..LN10#,13#,8#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-54020

2LT#,2L,3L..LN10#,112,13#,8#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-54020

2LT#,2L,3L..LN10#,112,13#,8#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-54010

2LT#,2L,3L..LN10#,112,13#,8#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-54010

2LT#,2L,3L..LN10#,112,13#,8#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-54010

2LT#,2L,3L..LN10#,112,13#,8#

 1
Common parts
90119-08783
90151-60013
90179-08150
90430-18002
91651-40616
