LN130G-GJPGT (1990)

Toyota Hilux

Production Aug 1990 - Aug 1993
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8809-9408)2L ; (8809- )3L

Click highlighted areas on diagram

diagram 1144435010 1144489103 17700 17705 17801 17805 17849 17849 17849 17875 17878 17881 17881A 17881A 17882 17882A 17882A 17882D 17882D 17883 17885 53207B 9011906419 9011908761 9017906054 9017906215 9046075004 9054008020 9054008021 9054008025 9095001027 9611110730 9611110730 9611110750
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-54690

2LTE..LN108,112,130

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54320

2LTE..LN108,112,130

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54060

2LT#,2L,3L..LN10#,112,13#,8#

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-89109

2L#,3L..LN10#,112,13#,8#

NO.2

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-89109

2L#,3L..LN10#,112,13#,8#

NO.2

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-89109

2L#,3L..LN10#,112,13#,8#

NO.2

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-89108

2LT#,2L,3L..LN10#,13#,8#

 1
17878 - PIPE, INTAKE AIR CONNECTOR, NO.3
17878-89101

2LT#,2L,3L..LN10#,112,13#,8#

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-89107

2LT#,2L,3L..LN10#,112,13#,8#

 1
53207B - DUCT SUB-ASSY, COOL AIR
53207-35020

LN13#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53207-35030

LN13#

 1
Common parts
11444-35010
11444-89103
90119-06419
90119-08761
90179-06054
90179-06215
90460-75004
90540-08020
90540-08021
90540-08025
90950-01027
96111-10730
96111-10750

(9008-9308)2LTE

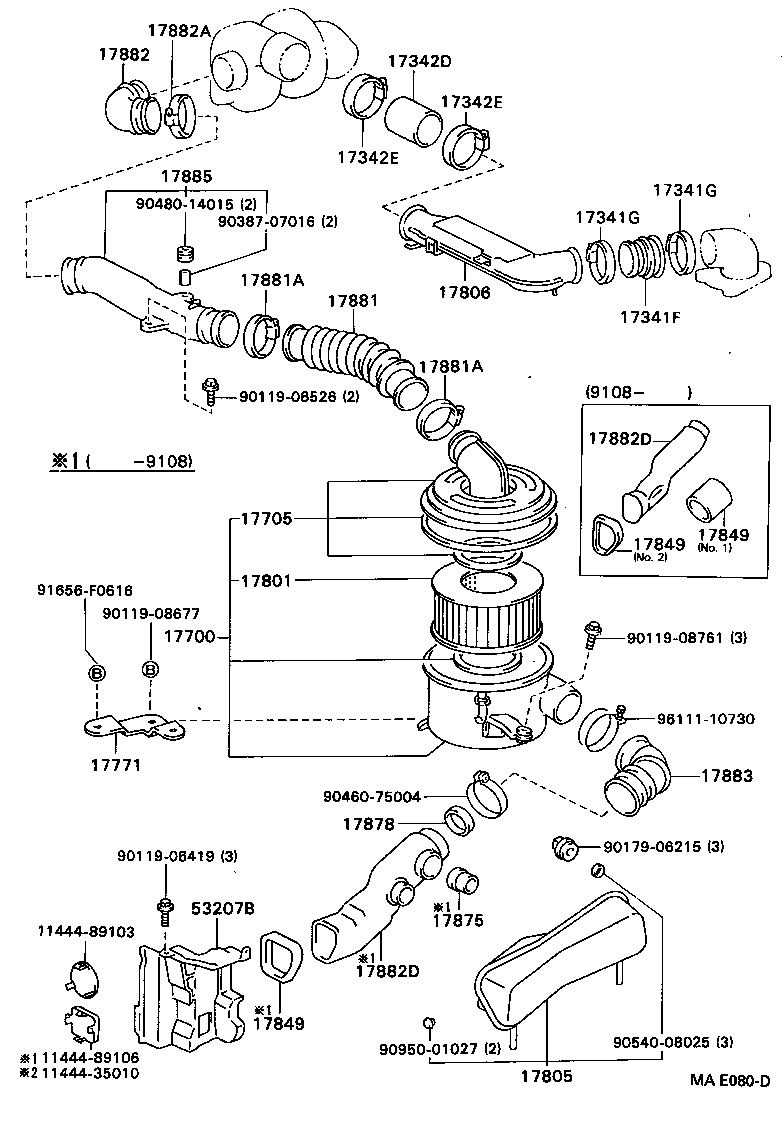

Click highlighted areas on diagram

diagram 1144435010 1144489103 1144489106 17341F 17341G 17341G 17342D 17342E 17342E 17700 17705 17771 17801 17805 17806 17849 17849 17849 17875 17878 17881 17881A 17881A 17882 17882A 17882D 17882D 17883 17885 53207B 9011906419 9011906526 9011908677 9011908761 9017906215 9038707016 9046075004 9048014015 9054008025 9095001027 91656F0616 9611110730
Part # Description Qty Price
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90467-60001

2LTE..LN130

MANIFOLD SIDE

 1
90467-56001

2LTE..LN130

AIR PIPE SIDE

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90467-60001

2LTE..LN130

MANIFOLD SIDE

 1
90467-56001

2LTE..LN130

AIR PIPE SIDE

 1
17342D - HOSE, AIR, NO.2
17342-54020

2LTE..LN130

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90467-53002

2LTE..LN130

 2
90460-65008

2LTE..LN130

 2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90467-53002

2LTE..LN130

 2
90460-65008

2LTE..LN130

 2
17700 - CLEANER ASSY, AIR
17700-54690

2LTE..LN108,112,130

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54320

2LTE..LN108,112,130

 1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-54070

2LTE..LN108,112,130

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54060

2LT#,2L,3L..LN10#,112,13#,8#

 1
17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2
17103-54100

2LTE..LN130

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-89109

2L#,3L..LN10#,112,13#,8#

NO.2

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-89109

2L#,3L..LN10#,112,13#,8#

NO.2

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-89109

2L#,3L..LN10#,112,13#,8#

NO.2

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-89108

2LT#,2L,3L..LN10#,13#,8#

 1
17878 - PIPE, INTAKE AIR CONNECTOR, NO.3
17878-89101

2LT#,2L,3L..LN10#,112,13#,8#

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-89107

2LT#,2L,3L..LN10#,112,13#,8#

 1
53207B - DUCT SUB-ASSY, COOL AIR
53207-35020

LN13#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53207-35030

LN13#

 1
Common parts
11444-35010
11444-89103
11444-89106
90119-06419
90119-06526
90119-08677
90119-08761
90179-06215
90387-07016
90460-75004
90480-14015
90540-08025
90950-01027
91656-F0616
96111-10730
