LN130G-GJMGX (1989)

Toyota Hilux

Production Apr 1989 - Aug 1990
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )KZN130,LN13#,VZN130,YN130

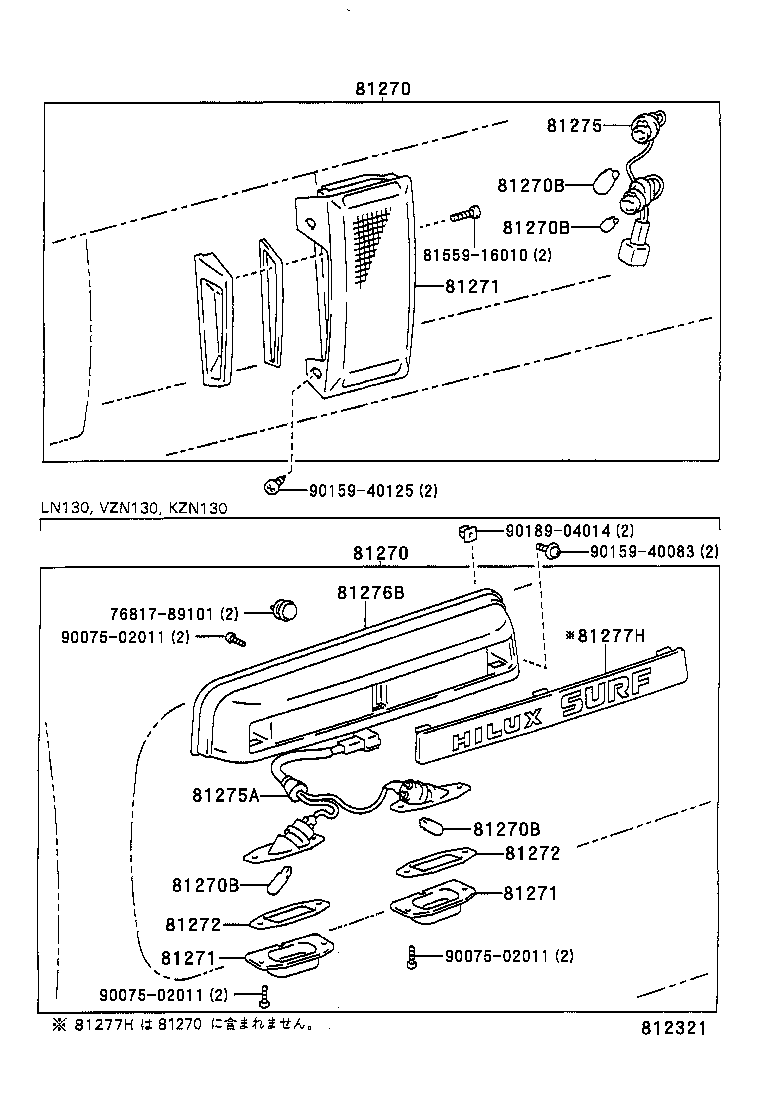

Click highlighted areas on diagram

diagram 7681789101 81270 81270 81270B 81270B 81270B 81270B 81271 81271 81271 81272 81272 81275 81275A 81276B 81277H 8155916010 9007502011 9007502011 9007502011 9015940083 9015940125 9018904014
Part # Description Qty Price
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

12V 5W

 2
Common parts
76817-89101
81559-16010
90075-02011
90159-40083
90159-40125
90189-04014
