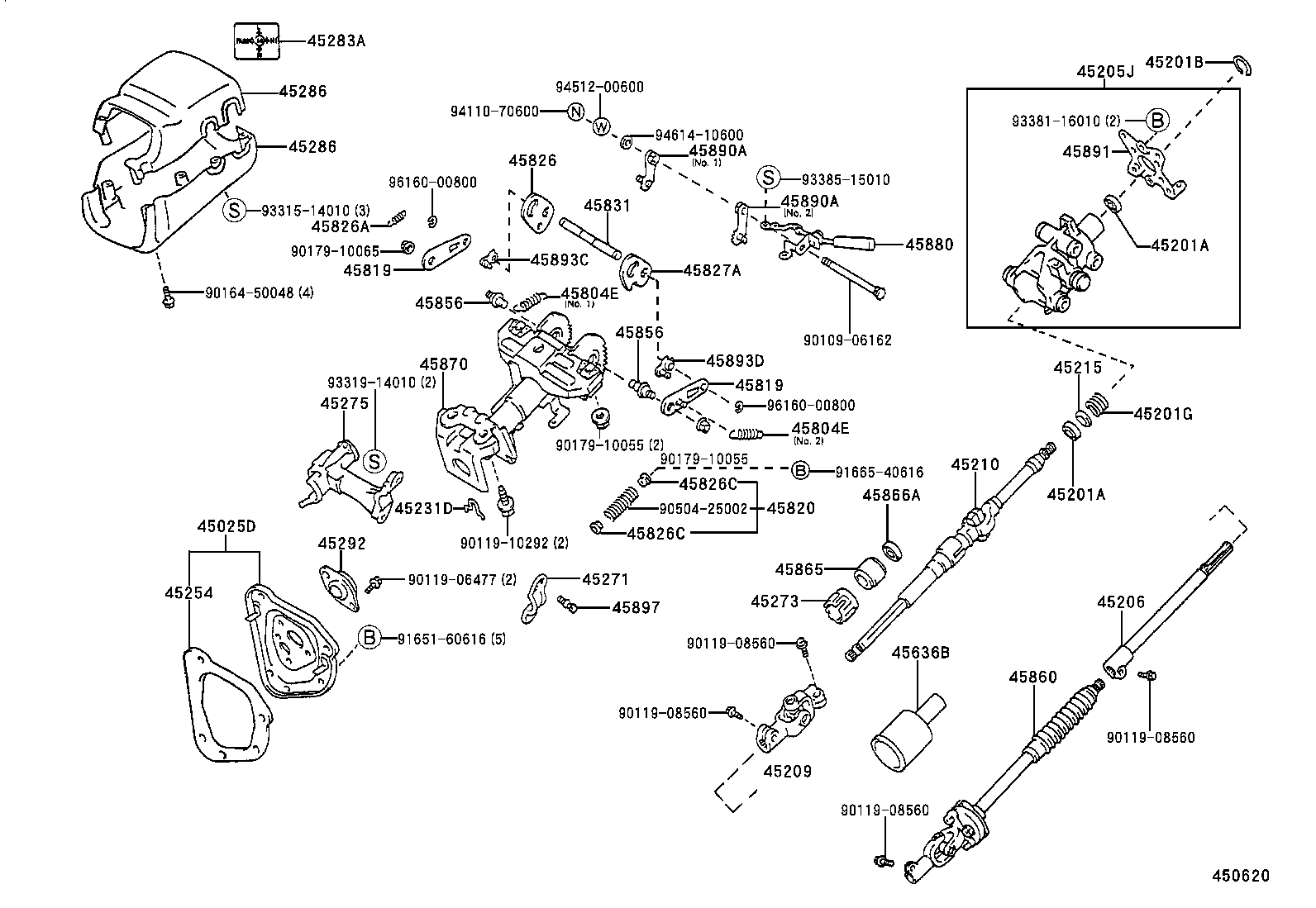

LN130G-GJMGX (1989)
Toyota Hilux
(8904- )KZN130,LN108,112,130,VZN130
ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-35180 |
KZN130,LN107,108,109,112,13#,YN107,130 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
LN10#,13#,8#,YN10#,130,8# |
1 | ||
| 90363-18007 |
LN10#,13#,8#,YN10#,130,8# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
LN10#,13#,8#,YN10#,130,8# |
1 | ||
| 90363-18007 |
LN10#,13#,8#,YN10#,130,8# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-35231 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-35020 |
KZN130,LN108,112,130,VZN130 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-35020 |
LN10#,13#,VZN130,YN10#,130..SR,SSR |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35100 |
KZN130,LN10#,112,13#,YN10#,130 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-35210 |
LN10#,13#,VZN130,YN10#,130..5F..(SR,SSR) |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3529003 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX GRAY,TRIM1#,上側 |
1 | ||
| 45287-3521003 |
LN108,109,112;KZN130,LN100,106,107,13#,VZN130,YN10#,130..SR,SSR GRAY,TRIM1#,下側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3529003 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX GRAY,TRIM1#,上側 |
1 | ||
| 45287-3521003 |
LN108,109,112;KZN130,LN100,106,107,13#,VZN130,YN10#,130..SR,SSR GRAY,TRIM1#,下側 |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35050 |
LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-08010 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX NO.2 |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-08010 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX NO.2 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
LN10#,13#,VZN130,YN10#,130..SR,SSR,SSRX |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
LN10#,13#,VZN130,YN10#,130..SR,SSR,SSRX |
2 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-35010 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22050 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-07003 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06031 |
LN10#,13#,YN10#,130..SR,SSR |
2 | ||
| 90386-06043 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06031 |
LN10#,13#,YN10#,130..SR,SSR |
2 | ||
| 90386-06043 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
2 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-22020 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22020 |
LN13#,YN130 外径=9.998−10.007 |
2 | ||
| 45856-22010 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX 外径=9.989−9.998 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22020 |
LN13#,YN130 外径=9.998−10.007 |
2 | ||
| 45856-22010 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX 外径=9.989−9.998 |
2 | ||
| 45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35150 |
KZN130,LN108,112,130,VZN130 |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-35010 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX NO.1 |
1 | ||
| 45890-22090 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX NO.2 |
1 | ||
| 45890-22080 |
LN10#,13#,YN10#,130..SR,SSR NO.1 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX NO.1 |
1 | ||
| 45890-22090 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX NO.2 |
1 | ||
| 45890-22080 |
LN10#,13#,YN10#,130..SR,SSR NO.1 |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-35030 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-22050 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX ﾏｰｸ 3 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-22100 |
KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX ﾏｰｸ C |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| Common parts | ||||
| 90109-06162 | ||||
| 90119-06477 | ||||
| 90119-08560 | ||||
| 90119-10292 | ||||
| 90164-50048 | ||||
| 90179-10055 | ||||
| 90179-10065 | ||||
| 90504-25002 | ||||
| 91651-60616 | ||||
| 91665-40616 | ||||
| 93315-14010 | ||||
| 93319-14010 | ||||
| 93381-16010 | ||||
| 93385-15010 | ||||
| 94110-70600 | ||||
| 94512-00600 | ||||
| 94614-10600 | ||||
| 96160-00800 | ||||
