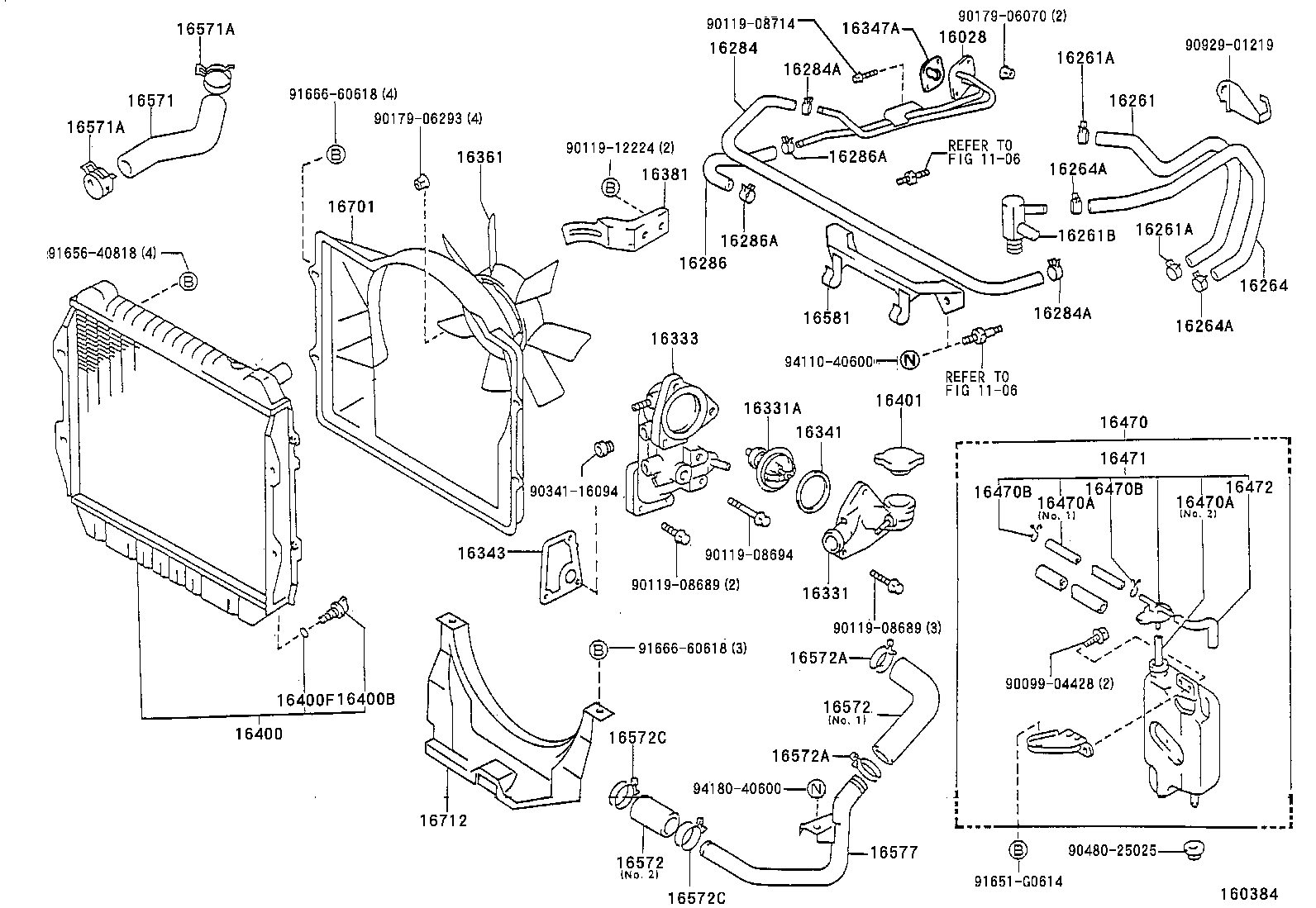

LN130G-GJMGX (1989)
Toyota Hilux
(8904-9008)2LT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54080 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54070 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15004 |
2LT..LN130 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15004 |
2LT..LN130 |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-54020 |
2LT#..LN108,112,130 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15004 |
2LT..LN130 |
2 | ||
| 90467-15022 |
2LT#..LN108,112,130 |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15004 |
2LT..LN130 |
2 | ||
| 90467-15022 |
2LT#..LN108,112,130 |
2 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03099 |
2LT#,2L,3L..LN10#,13#,8# *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-54050 |
2LT..LN130 |
1 | ||
| 16333-54131 |
2LT..LN130 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54030 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-58010 |
2LT..LN130 |
1 | ||
| 16347-28010 |
2LT..LN130 |
1 | ||
| 16347-42020 |
2LT#..LN108,112,130 |
1 | ||
| 16361 - FAN | ||||
| 16361-54070 |
2LT#,2L,3L..LN108,112,13#,85..4FC,5F |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54060 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54730 |
2LT..LN130 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 96711-19007 |
2LT#,2L,3L..LN10#,112,13#,8# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 16401-63010 |
2LT#,2L,3L..LN10#,112,13#,8# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54180 |
2LT..LN130 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2LT#,2L,3L..LN10#,13#,8# *H,L=220,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2LT#,2L,3L..LN10#,13#,8# *H,L=220,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2LT#,2L,3L..LN10#,112,13#,8# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54310 |
2LT..LN130 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37003 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37003 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54270 |
2LT#,3L..LN10#,112,13# NO.1 |
1 | ||
| 16573-54081 |
2LT#,3L..LN10#,112,13# NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54270 |
2LT#,3L..LN10#,112,13# NO.1 |
1 | ||
| 16573-54081 |
2LT#,3L..LN10#,112,13# NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2LT#,2L,3L..LN10#,112,13#,8# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LT#,2L,3L..LN10#,112,13#,8# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2LT#,2L,3L..LN10#,112,13#,8# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LT#,2L,3L..LN10#,112,13#,8# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-37002 |
2LT,3L..LN10#,13# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-37002 |
2LT,3L..LN10#,13# |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-54121 |
2LT#,3L..LN100,106,107,109,13# |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-54020 |
2LT#..LN108,112,130 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54290 |
2LT#,3L..LN100,106,107,109,13# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54200 |
2LT#,3L..LN100,106,107,109,13# |
1 | ||
| Common parts | ||||
| 90099-04428 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-08714 | ||||
| 90119-12224 | ||||
| 90179-06070 | ||||
| 90179-06293 | ||||
| 90341-16094 | ||||
| 90480-25025 | ||||
| 90929-01219 | ||||
| 91651-G0614 | ||||
| 91656-40818 | ||||
| 91666-60618 | ||||
| 94110-40600 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(8809-9408)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54080 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54070 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03099 |
2LT#,2L,3L..LN10#,13#,8# *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-54050 |
2LT..LN130 |
1 | ||
| 16333-54131 |
2LT..LN130 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54030 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16361 - FAN | ||||
| 16361-54070 |
2LT#,2L,3L..LN108,112,13#,85..4FC,5F |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54060 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54730 |
2LT..LN130 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 96711-19007 |
2LT#,2L,3L..LN10#,112,13#,8# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 16401-63010 |
2LT#,2L,3L..LN10#,112,13#,8# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54180 |
2LT..LN130 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2LT#,2L,3L..LN10#,13#,8# *H,L=220,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2LT#,2L,3L..LN10#,13#,8# *H,L=220,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2LT#,2L,3L..LN10#,112,13#,8# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54310 |
2LT..LN130 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37003 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37003 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54270 |
2LT#,3L..LN10#,112,13# NO.1 |
1 | ||
| 16573-54081 |
2LT#,3L..LN10#,112,13# NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54270 |
2LT#,3L..LN10#,112,13# NO.1 |
1 | ||
| 16573-54081 |
2LT#,3L..LN10#,112,13# NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54270 |
2LT#,3L..LN10#,112,13# NO.1 |
1 | ||
| 16573-54081 |
2LT#,3L..LN10#,112,13# NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2LT#,2L,3L..LN10#,112,13#,8# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LT#,2L,3L..LN10#,112,13#,8# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2LT#,2L,3L..LN10#,112,13#,8# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LT#,2L,3L..LN10#,112,13#,8# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2LT#,2L,3L..LN10#,112,13#,8# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LT#,2L,3L..LN10#,112,13#,8# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2LT#,2L,3L..LN10#,112,13#,8# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LT#,2L,3L..LN10#,112,13#,8# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-37002 |
2LT,3L..LN10#,13# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-37002 |
2LT,3L..LN10#,13# |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-54121 |
2LT#,3L..LN100,106,107,109,13# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54290 |
2LT#,3L..LN100,106,107,109,13# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54200 |
2LT#,3L..LN100,106,107,109,13# |
1 | ||
| Common parts | ||||
| 90099-04428 | ||||
| 90116-08366 | ||||
| 90119-08127 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 90179-06293 | ||||
| 90179-08150 | ||||
| 90480-25025 | ||||
| 90929-01219 | ||||
| 91651-G0614 | ||||
| 91656-40818 | ||||
| 91666-60618 | ||||
