LN109-PRMQS (1994)

Toyota Hilux

Production Aug 1994 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

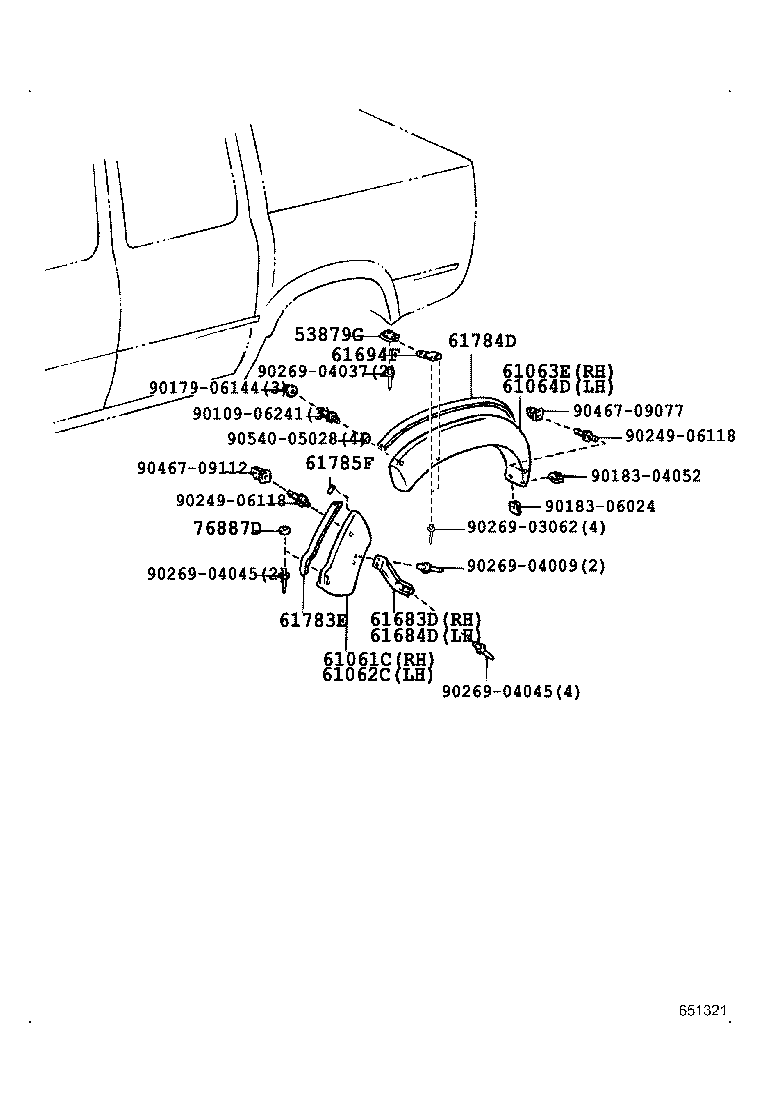

ILLUST NO. 2 OF 2(9408- )LN109,112

Click highlighted areas on diagram

diagram 53879G 61061C 61062C 61063E 61064D 61683D 61684D 61694F 61783E 61784D 61785F 76887D 9010906241 9017906144 9018304052 9018306024 9024906118 9024906118 9026903062 9026904009 9026904037 9026904045 9026904045 9046709077 9046709112 9054005028
Part # Description Qty Price
53879G - RETAINER, REAR WHEEL OPENING
53879-35020

LN109,112

 2
61061C - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH
61681-35905

LN109,112

 1
61062C - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH
61682-35905

LN109,112

 1
61063E - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH
61691-35900

LN109,112

 1
61064D - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH
61692-35900

LN109,112

 1
61683D - BRACKET, REAR WHEEL OPENING, NO.1 RH
61683-35030

LN109,112

 1
61684D - BRACKET, REAR WHEEL OPENING, NO.1 LH
61684-35030

LN109,112

 1
61694F - BRACKET, REAR WHEEL OPENING, NO.2
53862-35020

LN109,112

 2
61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-35020C0

LN109

BLACK,179 ,751

 2
61783-35020C0

LN109,112

BLACK,2BN ,751 ,8E3

 2
61783-35020D0

LN109

MAROON,3K3

 2
61783-35020D0

LN109,112

MAROON,3K4

 2
61784D - PAD, REAR WHEEL OPENING EXTENSION, NO.2
61784-35010C0

LN109,112

BLACK,2BN ,751 ,8E3

 2
61784-35010D0

LN109,112

MAROON,3K4

 2
61784-35010C0

LN109

BLACK,179 ,751

 2
61784-35010D0

LN109

MAROON,3K3

 2
61785F - PAD, REAR WHEEL OPENING EXTENSION, NO.3
61785-35010

LN109,112

 2
76887D - SEAL, REAR WHEEL OPENING
76887-21010

LN109,112

 2
Common parts
90109-06241
90179-06144
90183-04052
90183-06024
90249-06118
90269-03062
90269-04009
90269-04037
90269-04045
90467-09077
90467-09112
90540-05028
